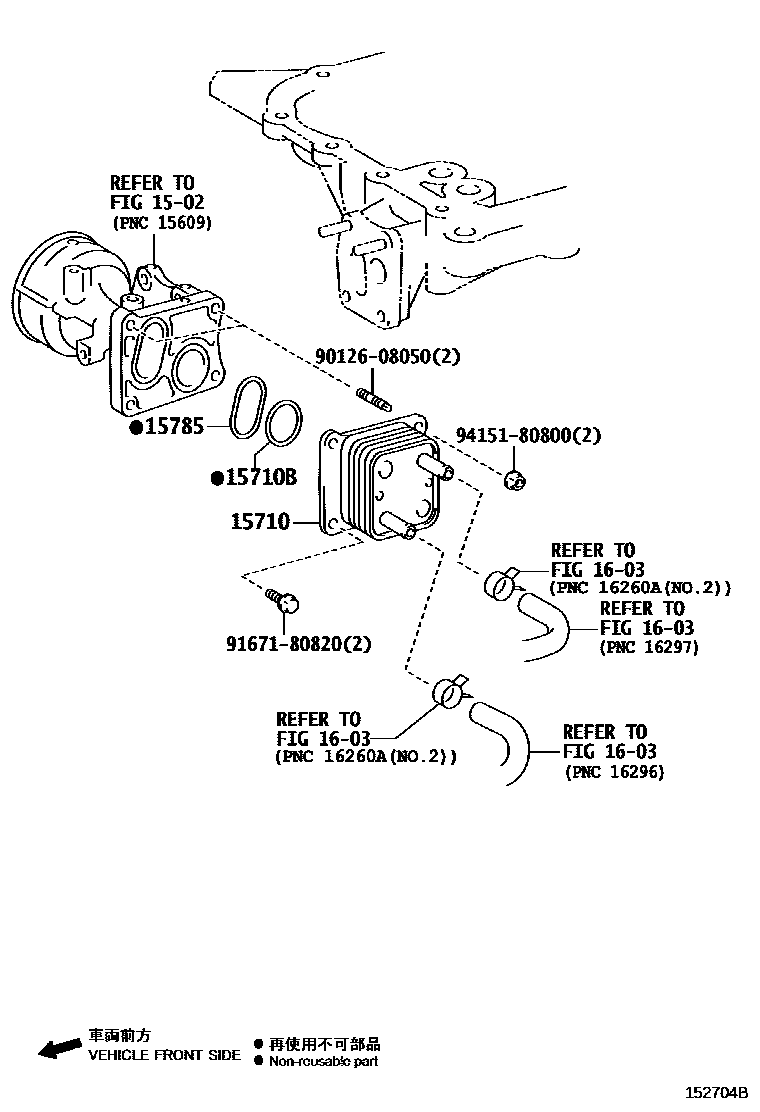

ENGINE OIL COOLER

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15710-31080i8GRFKS..GSF50; 8GRFXS..GVF50..RHD201710-202010

INDIA SPEC

15710BRING, O(FOR OIL COOLER)

main15785-31050i8GRFKS..GSF50; 8GRFXS..GVF50..RHD201806-202010

INDIA SPEC

main96723-35035i8GRFKS..GSF50; 8GRFXS..GVF50..RHD201710-201805

INDIA SPEC

15785GASKET, OIL COOLER

main15785-31030i8GRFKS..GSF50; 8GRFXS..GVF50..RHD201710-201805

INDIA SPEC

main15785-31060i8GRFKS..GSF50202011-202410

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9012608050

main90126-08050

9167180820

main91671-80820

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
