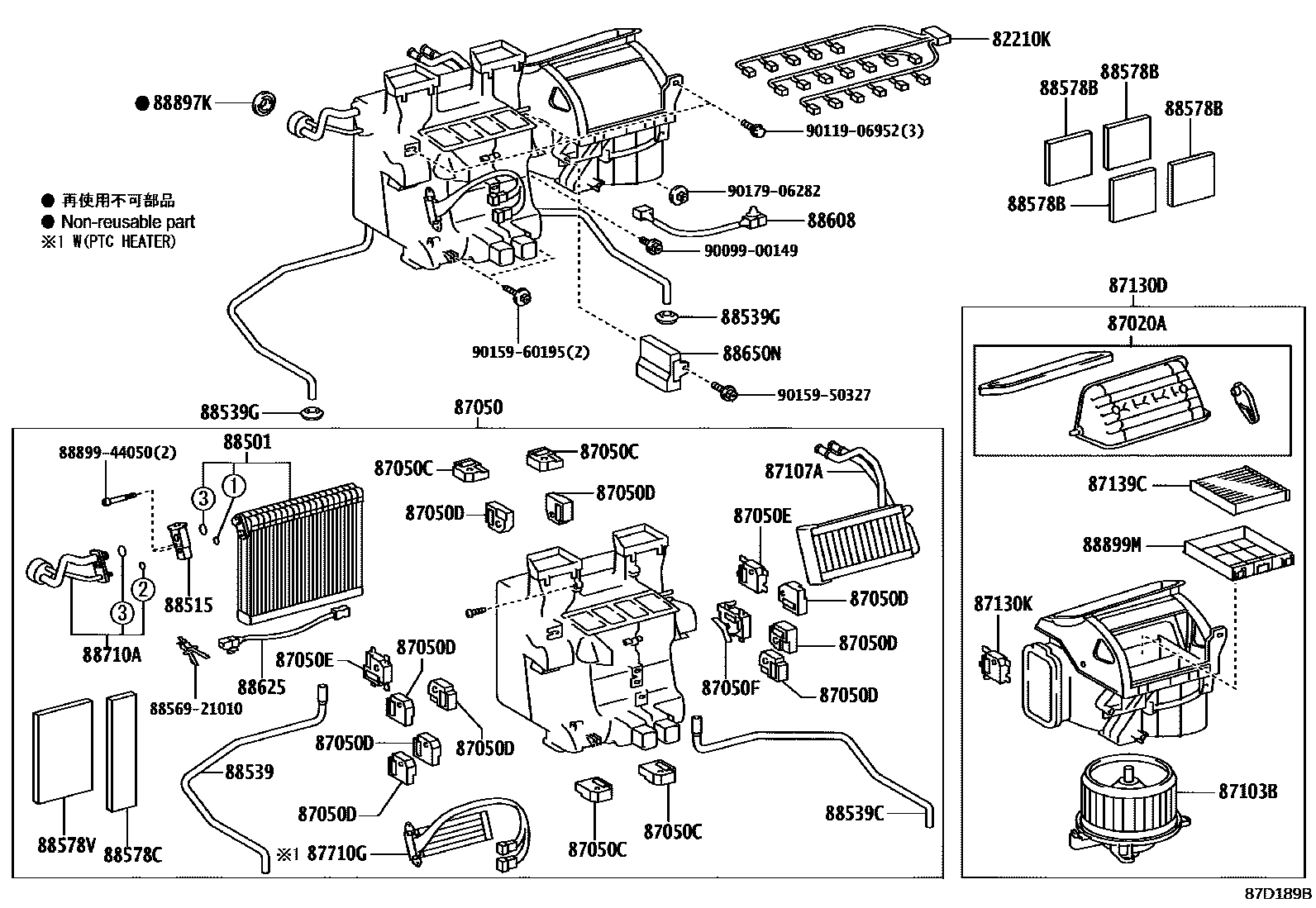

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1FRONT 0003 1REAR 0004 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-50130iUSF41..LHD..D4..EUR201209-201508

main82212-50131iUSF40,41,45..LHD..D4..EUR201509-201708

main82212-50160iUSF46;USF41..HTWC;USF40,41..D4..(CHI,GCC)201209-201508

VERSION L&COLD AREA SPEC

main82212-50160iUSF46;USF41..HTWC;USF40,41..D4..(CHI,GCC)201209-201508

COLD AREA SPEC

main82212-50160iUSF40,45..LHD..EUR201209-201508

VERSION L

main82212-50160iUSF41..LHD..D4..EUR201209-201309

main82212-50161iUSF40,45..LHD..EUR201509-201708

EXECUTIVE PACKAGE(4SEAT)

main82212-50161iUSF40,45..LHD..EUR201509-201708

VERSION L&COLD AREA SPEC

main82212-50161iUSF40,45..LHD..EUR201509-201708

EXECUTIVE PACKAGE(5SEAT)

main82212-50161iUSF40,45..LHD..EUR201509-201708

COLD AREA SPEC

main82212-50161iUSF40,45..LHD..EUR201509-201708

VERSION L

main82212-50170iUSF40..RHD201209-201508

main82212-50171iUSF40..RHD201509-201708

main82212-50180iUSF40..RHD201209-201508

VERSION L&COLD AREA SPEC

main82212-50180iUSF40..RHD201209-201508

COLD AREA SPEC

main82212-50180iUSF40..RHD201209-201508

VERSION L

main82212-50181iUSF41..RHD201509-201708

VERSION L

main82212-50181iUSF41..RHD201509-201708

VERSION L&COLD AREA SPEC

main82212-50181iUSF41..RHD201509-201708

COLD AREA SPEC

87020ADAMPER ASSY, HEATER AIR

main87020-50010iUSF40,41..RHD201209

main87020-50020iUSF4#..LHD201209

87050RADIATOR ASSY, AIR CONDITIONER

main87050-50230iUSF40,45..LHD..EUR201209-201310

main87050-50231iUSF40,41,45..LHD..D4..EUR201310-201708

main87050-50240iUSF40,45..LHD..EUR201209-201309

VERSION L

main87050-50241iUSF41..LHD..D4..EUR201310-201708

EXECUTIVE PACKAGE(4SEAT)

main87050-50241iUSF41..HTWC..EUR201310-201708

VERSION L

main87050-50241iUSF41..HTWC..EUR201310-201708

EXECUTIVE PACKAGE(5SEAT)

main87050-50250iUSF46;USF41..CHI201209-201309

COLD AREA SPEC

main87050-50250iUSF40,45..LHD..EUR201209-201309

VERSION L&COLD AREA SPEC

main87050-50251iUSF46;USF41..CHI201310-201708

COLD AREA SPEC

main87050-50251iUSF46;USF41..CHI201310-201708

VERSION L&COLD AREA SPEC

main87050-50260iUSF40..RHD201209-201309

main87050-50261iUSF40..RHD201310-201708

main87050-50270iUSF40..RHD201209-201309

VERSION L

main87050-50271iUSF40..RHD201310-201708

VERSION L

main87050-50290iUSF40,41..GCC201209-201309

main87050-50292iUSF40,41..GCC201309-201411

main87050-50293iUSF40,41..GCC201411-201708

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-50370iUSF4#201209

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-50380iUSF41..LHD..D4..EUR201309

EXECUTIVE PACKAGE(4SEAT)

main87106-50380iUSF41..LHD..D4..EUR201309

EXECUTIVE PACKAGE(5SEAT)

main87106-50380iUSF41..LHD..D4..EUR201209

VERSION L

main87106-50380iUSF41..LHD..D4..EUR201209-201309

main87106-50380iUSF40,45..EUR201209

VERSION L&COLD AREA SPEC

main87106-50380iUSF40,45..EUR201209

COLD AREA SPEC

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-50550iUSF4#201209

87050FDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4

main87106-50560iUSF4#..LHD201209

main87106-50570iUSF40,41..RHD201209

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50140iUSF4#..LHD201209-201508

main87103-50141iUSF4#..LHD201509

main87103-50150iUSF40,41..RHD201209-201508

main87103-50151iUSF40,41..RHD201509

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-50070iUSF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)201209-201310

main87107-50071iUSF40,41..GCC201309-201708

87130DBLOWER ASSY

main87130-50120iUSF4#..LHD201209-201508

main87130-50121iUSF4#..LHD201509

main87130-50130iUSF40,41..RHD201209-201508

main87130-50131iUSF40,41..RHD201509

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-50580iUSF4#..LHD201209

main87106-50590iUSF40,41..RHD201209

87139CFILTER, CLEAN AIR

main87139-50100iUSF4#201209-201708

87710GQUICK HEATER ASSY

main87710-50030iUSF40,45..EUR201209

VERSION L&COLD AREA SPEC

main87710-50030iUSF46;USF41..CHI201209

COLD AREA SPEC

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-50233iUSF4#201209

88515VALVE, COOLER EXPANSION

main88515-50190iUSF40,41..GCC201309-201411

main88515-50210iUSF40,45..EUR201209

COLD AREA SPEC

main88515-50210iUSF46;USF41..CHI201209

VERSION L&COLD AREA SPEC

main88515-50220iUSF40,41,45..EUR201209

main88515-50240iUSF40,41..GCC201209-201309

main88515-50250iUSF40,41..GCC201411

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-50090iUSF4#..LHD201209

main88539-50110iUSF40,41..RHD201209

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-50101iUSF4#..LHD201209

main88539-50121iUSF40,41..RHD201209

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029iUSF4#201209

88578BPACKING, COOLING UNIT, NO.1

main88578-50260iUSF4#201209

88578CPACKING, COOLING UNIT, NO.2

main88578-30830iUSF4#201209

88578VPACKING, COOLING UNIT, NO.3

main88578-30840iUSF4#201209

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-3A170iUSF40..RHD201209

SUSPENSION-AIR SUSPENTION F SPORT

main88608-3A170iUSF41..LHD..D4..EUR201209-201309

SUSPENSION-COIL SPRING

main88608-3A170iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

88625THERMISTOR, COOLER, NO.1

main88620-50010iUSF4#..LHD201209

main88620-50020iUSF40,41..RHD201209

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-50E90iUSF40..LHD..EUR201309-201410

STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50E90iUSF40..LHD..EUR201309-201410

STEERING WHEEL-WOOD,W(STEERING HEATER)

main88650-50E90iUSF40..LHD..EUR201309-201410

F SPORT&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH)

main88650-50F20iUSF40,41..LHD..(EUR,GCC)201309-201410

main88650-50F30iUSF46;USF41..CHI201309-201410

COLD AREA SPEC&STEERING WHEEL-WOOD,W(STEERING HEATER)

main88650-50F30iUSF46;USF41..CHI201309-201410

VERSION L&SEMI-ANILINE LEATHER SEAT&COLD AREA SPEC

main88650-50F30iUSF46;USF41..CHI201309-201410

VERSION L&COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50F30iUSF46;USF41..CHI201309-201410

F SPORT&COLD AREA SPEC&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH)

main88650-50F30iUSF46;USF41..CHI201309-201410

COLD AREA SPEC

main88650-50F30iUSF46;USF41..CHI201309-201410

COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50F60iUSF40,41..RHD201309-201410

main88650-50J40iUSF40,41..LHD..(EUR,GCC)201209-201308

main88650-50J50iUSF46;USF41..CHI201209-201308

COLD AREA SPEC

main88650-50J50iUSF46;USF41..CHI201209-201308

COLD AREA SPEC&STEERING WHEEL-WOOD,W(STEERING HEATER)

main88650-50J50iUSF46;USF41..CHI201209-201308

COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50J50iUSF45201209-201308

VERSION L&SEMI-ANILINE LEATHER SEAT&COLD AREA SPEC

main88650-50J50iUSF45201209-201308

VERSION L&COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50J70iUSF40,41..RHD201209-201308

main88650-50K80iUSF40..LHD..EUR201209-201308

STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50K80iUSF40..LHD..EUR201209-201308

STEERING WHEEL-WOOD,W(STEERING HEATER)

main88650-50N90iUSF40,41..LHD..D4..EUR201410

STEERING WHEEL-WOOD,W(STEERING HEATER)

main88650-50N90iUSF45201410

F SPORT&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH)

main88650-50P10iUSF40,41..LHD..(EUR,GCC)201410

main88650-50P20iUSF46;USF41..CHI201410

VERSION L&COLD AREA SPEC&STEERING WHEEL-WOOD & LEATHER,W(STEERING HEATER)

main88650-50P20iUSF40..LHD..EUR201410

F SPORT&COLD AREA SPEC&STEERING WHEEL-F SPORT,LEATHER,W(HEATER&PADDLE SWITCH)

main88650-50P20iUSF40..LHD..EUR201410

COLD AREA SPEC

main88650-50P20iUSF40..LHD..EUR201410

COLD AREA SPEC&STEERING WHEEL-WOOD,W(STEERING HEATER)

main88650-50P20iUSF40..LHD..EUR201410

VERSION L&SEMI-ANILINE LEATHER SEAT&COLD AREA SPEC

main88650-50P50iUSF40,41..RHD201410

88710ATUBE ASSY, AIR CONDITIONER

main88710-50820iUSF4#201209-201708

88897KGROMMET, (FOR COOLER PIPE)

main88897-35030iUSF4#201209-201708

88899MPLATE, COVER(FOR AIR FILTER)

main88899-3A080iUSF4#201209

8856921010CLAMP (FOR COOLER RELAY)

main88569-21010

8889944050COVER, EVAPORATOR

main88899-44050

9009900149

main90099-00149

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

34 parts on this diagram · 4 diagrams in section
