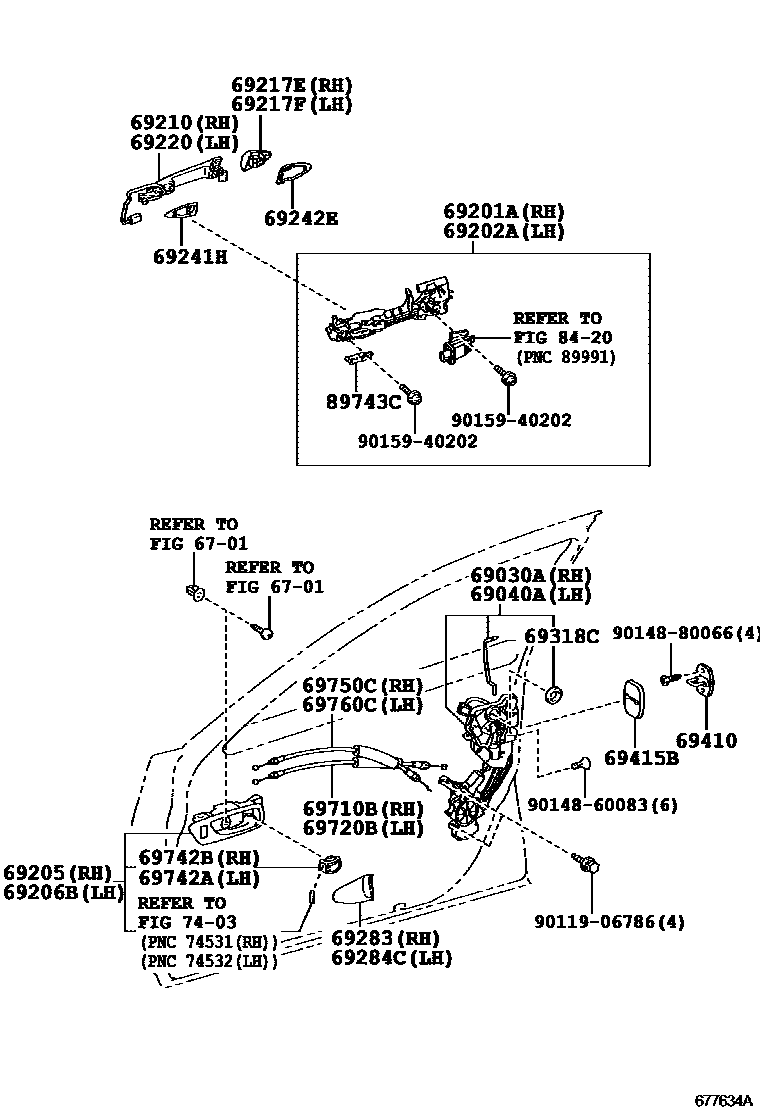

FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
TAIWAN SPEC
LATIN AMERICA SPEC
SOUTHEAST ASIA SPEC
THAILAND SPEC
HONGKONG,MACAO SPEC
AUSTRALIA,NEW ZEALAND SPEC
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
LATIN AMERICA SPEC
TAIWAN SPEC
HONGKONG,MACAO SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
AUSTRALIA,NEW ZEALAND SPEC
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
HONGKONG,MACAO SPEC
AUSTRALIA,NEW ZEALAND SPEC
THAILAND SPEC
SOUTHEAST ASIA SPEC
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
THE CRAFTED LINE&LEATHER SEAT(F SPORT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,10SPEAKER,R5,MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
F SPORT,MELLOW WHITE,TRIM00,02
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,MELLOW WHITE,TRIM00,02
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5,MELLOW WHITE,TRIM00,02
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,IVORY,TRIM01
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5,IVORY,TRIM01
THE CRAFTED LINE&LEATHER SEAT(F SPORT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,10SPEAKER,R5,IVORY,TRIM01
IVORY,TRIM01
IVORY,TRIM01,04
F SPORT,IVORY,TRIM01
THE CRAFTED LINE&LEATHER SEAT(F SPORT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,10SPEAKER,R5,BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
F SPORT,BLACK,TRIM1#,2#,4#,5#
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,BLACK,TRIM1#,2#,4#,5#
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5,BLACK,TRIM1#,2#,4#,5#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
F SPORT,MELLOW WHITE,TRIM00,02
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,MELLOW WHITE,TRIM00,02
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5,MELLOW WHITE,TRIM00,02
THE CRAFTED LINE&LEATHER SEAT(F SPORT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,10SPEAKER,R5,MELLOW WHITE,TRIM00,02
IVORY,TRIM01
IVORY,TRIM01,04
F SPORT,IVORY,TRIM01
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,IVORY,TRIM01
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5,IVORY,TRIM01
THE CRAFTED LINE&LEATHER SEAT(F SPORT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,10SPEAKER,R5,IVORY,TRIM01
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,4#,5#
F SPORT,BLACK,TRIM1#,2#,4#,5#
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R2,BLACK,TRIM1#,2#,4#,5#
F SPORT&AUDIO(OVERSEAS MARKET)-DVD,RDS,19SPEAKER,MARK LEVINSON,R5,BLACK,TRIM1#,2#,4#,5#
THE CRAFTED LINE&LEATHER SEAT(F SPORT)&AUDIO(OVERSEAS MARKET)-DVD,RDS,10SPEAKER,R5,BLACK,TRIM1#,2#,3#,4#,5#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED,UKRAINE,CROATIA SPEC
PLATED,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
PLATED,RUSSIA SPEC
PLATED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
*CR
*CR,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
*CR,UKRAINE,CROATIA SPEC
*CR
*CR,RUSSIA SPEC
*CR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
*CR,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
*CR
*CR,UKRAINE,CROATIA SPEC
*CR
*CR,RUSSIA SPEC
*CR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED,KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
PLATED
PLATED,UKRAINE,CROATIA SPEC
PLATED,RUSSIA SPEC
PLATED
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69742AKNOB, REAR DOOR LOCK CONTROL, LH
MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
IVORY,TRIM01
IVORY,TRIM01,04
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
69742BKNOB, FRONT DOOR LOCK CONTROL, RH
MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
IVORY,TRIM01
IVORY,TRIM01,04
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
7403
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9011906786
main90119-06786
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202
31 parts on this diagram · 1 diagram in section
