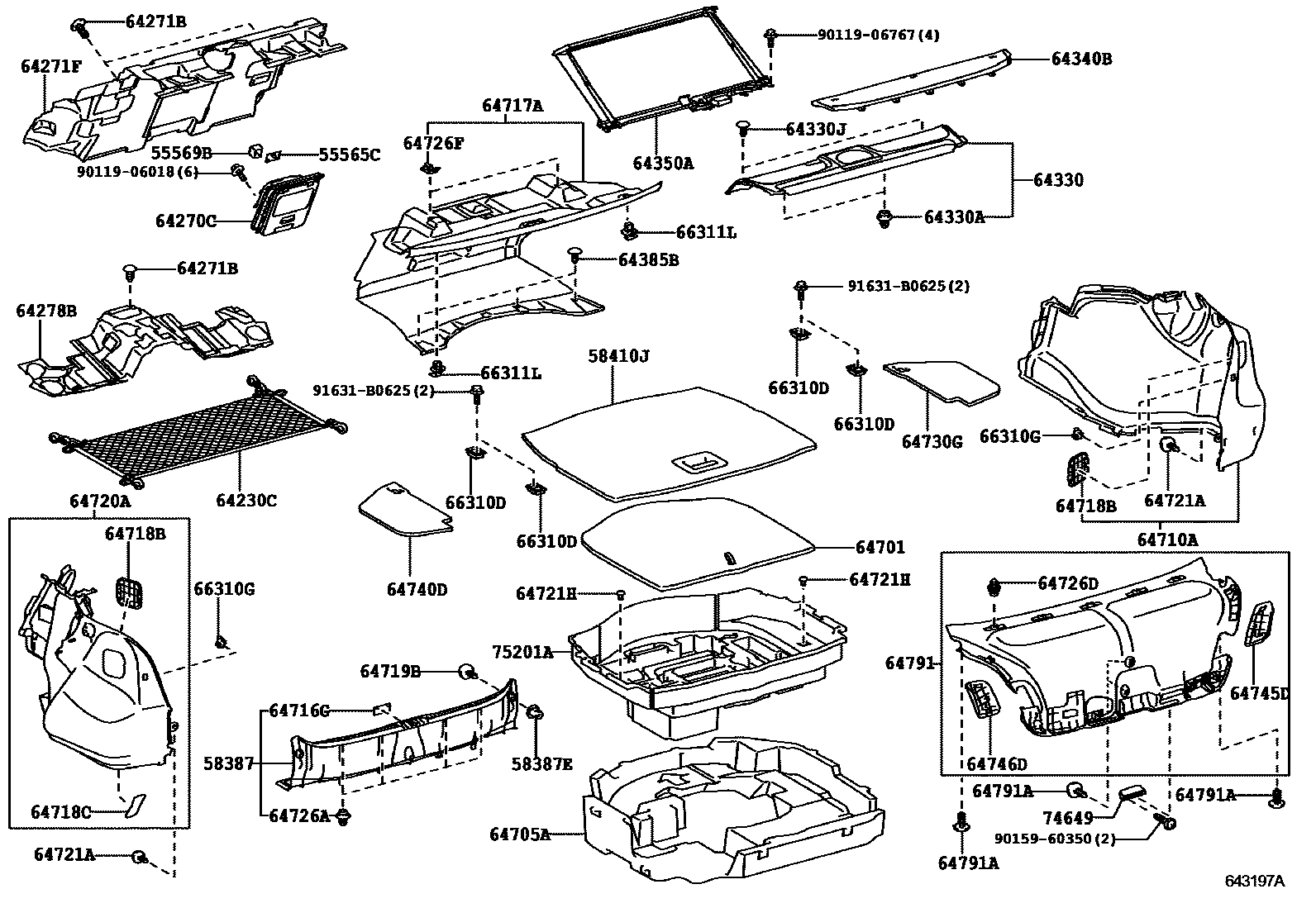

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
55565CHANDLE, GLOVE COMPARTMENT DOOR LH
55569BCOVER, GLOVE COMPARTMENT DOOR LOCK
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58410JBOARD ASSY, DECK
BLACK,TRIM0#,1#,2#,4#,5#
64230CNET ASSY, ROOM PARTITION
64270CBOARD ASSY, ROOM PARTITION
MELLOW WHITE,TRIM00,22
MELLOW WHITE,TRIM02,22
MELLOW WHITE,TRIM02
LT.GRAY,TRIM1#
BLACK,TRIM21,5#
BLACK,TRIM21,23,4#,5#
BLACK,TRIM2#,4#,5#
IVORY,TRIM01
64271BCLIP(FOR ROOM PARTITION BOARD)
64271FTRIM, ROOM PARTITION
VERSION L
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
EXECUTIVE PACKAGE(5SEAT),MELLOW WHITE/MELLOW WHITE,TRIM00,02
MELLOW WHITE/MELLOW WHITE,TRIM00
MELLOW WHITE/MELLOW WHITE,TRIM00,02
VERSION L,MELLOW WHITE/MELLOW WHITE,TRIM00
VERSION L,MELLOW WHITE/MELLOW WHITE,TRIM00,02
IVORY,TRIM01
VERSION L,IVORY,TRIM01
EXECUTIVE PACKAGE(5SEAT),IVORY,TRIM01
LT.GRAY,TRIM1#
VERSION L,LT.GRAY,TRIM1#
EXECUTIVE PACKAGE(5SEAT),LT.GRAY,TRIM1#
VERSION L,BLACK/BLACK,TRIM2#,4#,5#
BLACK/BLACK,TRIM2#,4#,5#
EXECUTIVE PACKAGE(5SEAT),BLACK/BLACK,TRIM2#,4#,5#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
MELLOW WHITE,TRIM00
sub90467-05162
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
MELLOW WHITE,TRIM00,02
MELLOW WHITE,TRIM00
MELLOW WHITE,TRIM02
IVORY,TRIM01
LT.GRAY,TRIM1#
BLACK,TRIM2#,4#,5#
BLACK,TRIM2#,5#
64385BCLIP
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM0#,1#,2#,4#,5#
sub90467-08186
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM0#,1#,2#,4#,5#
sub90467-08186
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM0#,1#,2#,4#,5#
sub90467-08186
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM0#,1#,2#,4#,5#
sub90467-08186
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM0#,1#,2#,4#,5#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#
sub64701-50091
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
sub64701-50091
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64705AGUARD SUB-ASSY, SPARE WHEEL
SPARE TIRE-GROUND TIRE
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
VERSION L,BLACK,TRIM0#,2#,4#,5#
VERSION L,BLACK,TRIM0#,1#,2#,4#,5#
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM0#,1#,2#,4#,5#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
VERSION L,BLACK,TRIM0#,2#,4#,5#
VERSION L,BLACK,TRIM0#,1#,2#,4#,5#
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM0#,1#,2#,4#,5#
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
VERSION L,BLACK,TRIM0#,1#,2#,4#,5#
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM0#,1#,2#,4#,5#
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
VERSION L,BLACK,TRIM0#,2#,4#,5#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721HCLIP(LUGGAGE COMPARTMENT)
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
sub90467-06001
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64730GBOARD, DECK TRIM SIDE, RH
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#
sub64731-50041
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
sub64731-50041
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64740DBOARD, DECK TRIM SIDE, LH
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,3#,4#,5#
sub64732-50031
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
sub64732-50031
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,4#,5#
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#,4#,5#
BLACK,TRIM0#,2#,4#,5#
64791ACLIP(FOR BACK DOOR TRIM)
66310DHOOK ASSY, ROPE
66310GHOOK ASSY, ROPE
BLACK
BLACK
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
9011906018
main90119-06018
9011906767
main90119-06767
9015960350
main90159-60350
91631B0625
main91631-B0625
45 parts on this diagram · 4 diagrams in section
