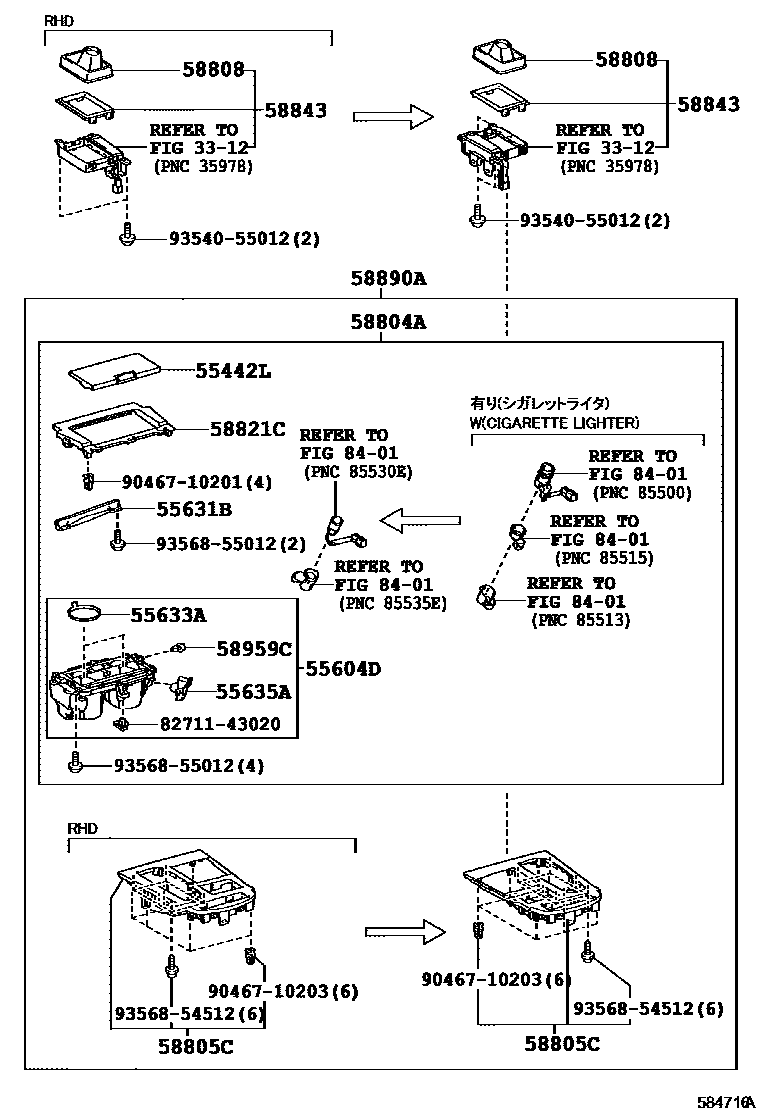

CONSOLE BOX & BRACKET
3312
55442LDOOR, INSTRUMENT PANEL
BLACK,TRIM10,20,40,50
BLACK WOOD,TRIM21,22
DK.BROWN,TRIM0#,2#,5#
DK.BROWN,TRIM0#,5#
DK.BROWN,TRIM01,20,50
CHAMPANE GOLD,TRIM00
BROWN,TRIM00,01,40,50
NATURAL BROWN,TRIM01,10,20,50
BLACK,TRIM23,5#
BLACK,TRIM1#,23,5#
BLACK,TRIM1#,23,3#,5#
BLACK,TRIM2#,51
BLACK,TRIM23,51
BLACK,TRIM1#,23,3#,51
BLACK,TRIM1#,23,51
BLACK,TRIM23,3#,51
BLACK WOOD,TRIM21,22
DK.BROWN,TRIM01,50
DK.BROWN,TRIM01,20,50
DK.BROWN,TRIM01
CHAMPANE GOLD,TRIM00
BROWN,TRIM02,4#
BROWN,TRIM4#
NATURAL BROWN,TRIM24
NATURAL BROWN,TRIM04
55631BLOCK, INSTRUMENT PANEL CUP HOLDER, NO.1
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM23,51
sub58804-50392
BLACK,TRIM1#,23,51
sub58804-50392
CHAMPANE GOLD,TRIM00
sub58804-50392
VERSION L,CHAMPANE GOLD,TRIM00
sub58804-50392
EXECUTIVE PACKAGE(4SEAT),CHAMPANE GOLD,TRIM00
sub58804-50392
EXECUTIVE PACKAGE(5SEAT),CHAMPANE GOLD,TRIM00
sub58804-50392
EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24
sub58804-50392
EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24
sub58804-50392
BLACK,TRIM3#,5#
BLACK,TRIM2#,51
BLACK,TRIM23,5#
BLACK,TRIM1#,2#,5#
BLACK,TRIM1#,23,5#
BLACK WOOD,TRIM2#
BLACK WOOD,TRIM21,22
DK.BROWN,TRIM01,50
DK.BROWN,TRIM01
EXECUTIVE PACKAGE(5SEAT),WHITE GOLD,TRIM00
WHITE GOLD,TRIM00
VERSION L,WHITE GOLD,TRIM00
EXECUTIVE PACKAGE(4SEAT),WHITE GOLD,TRIM00
BROWN,TRIM02,4#
BROWN,TRIM4#
VERSION L,BROWN,TRIM4#
EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24
NATURAL BROWN,TRIM24
VERSION L,NATURAL BROWN,TRIM24
EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
BLACK,TRIM10,20,40,50
BLACK,TRIM50
BLACK,TRIM3#,5#
BLACK,TRIM1#,23,5#
BLACK,TRIM1#,2#,5#
BLACK,TRIM3#,51
BLACK,TRIM1#,23,51
BLACK WOOD,TRIM21,22
BLACK WOOD,TRIM2#
DK.BROWN,TRIM01,20,50
DK.BROWN,TRIM01,50
DK.BROWN,TRIM01
CHAMPANE GOLD,TRIM00
BROWN,TRIM00,01,50
BROWN,TRIM00,01,40,50
BROWN,TRIM02,4#
NATURAL BROWN,TRIM01,10,20,50
NATURAL BROWN,TRIM24
BLACK,TRIM1#,23,5#
VERSION L,BLACK,TRIM1#,23,5#
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,5#
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,5#
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM2#,51
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#
EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#
EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#
BLACK,TRIM2#,51
BLACK,TRIM23,5#
VERSION L,BLACK,TRIM2#,51
BLACK,TRIM20,50
BLACK,TRIM20,40,50
BLACK,TRIM10,20,40,50
VERSION L,BLACK,TRIM10,20,40,50
VERSION L,BLACK,TRIM20,50
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM20,50
BLACK,TRIM23,51
BLACK,TRIM1#,23,51
VERSION L,BLACK,TRIM23,51
VERSION L,BLACK,TRIM1#,23,51
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,51
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,51
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM23,51
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51
EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51
EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51
EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01
DK.BROWN,TRIM01
VERSION L,DK.BROWN,TRIM01,50
VERSION L,DK.BROWN,TRIM01
EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM01
EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01
VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,50
VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01
EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01
DK.BROWN,TRIM01,50
DK.BROWN,TRIM01,20,50
VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50
VERSION L,DK.BROWN,TRIM01,20,50
CHAMPANE GOLD,TRIM00
VERSION L&CIGARETTE LIGHTER-WITH,CHAMPANE GOLD,TRIM00
VERSION L,CHAMPANE GOLD,TRIM00
EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM02,4#
BROWN,TRIM00,01,4#,50
BROWN,TRIM00,01,40,50
VERSION L,BROWN,TRIM00,01,40,50
VERSION L,BROWN,TRIM00,01,4#,50
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM00,01,40,50
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM00,01,4#,50
BROWN,TRIM4#
BROWN,TRIM02,4#
VERSION L,BROWN,TRIM4#
VERSION L,BROWN,TRIM02,4#
EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM02,4#
EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM02,4#
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM02,4#
EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,BROWN,TRIM02,4#
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50
VERSION L,NATURAL BROWN,TRIM01,10,20,50
NATURAL BROWN,TRIM01,10,20,50
NATURAL BROWN,TRIM01,20,50
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,20,50
VERSION L,NATURAL BROWN,TRIM01,20,50
NATURAL BROWN,TRIM04
EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24
EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24
EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24
EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24
VERSION L,NATURAL BROWN,TRIM24
NATURAL BROWN,TRIM24
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM04
VERSION L,NATURAL BROWN,TRIM04
BLACK,TRIM1#,23,5#
BLACK,TRIM10,20,40,50
BLACK,TRIM1#,23,51
BLACK WOOD,TRIM21,22
DK.BROWN,TRIM01,20,50
DK.BROWN,TRIM01
BROWN,TRIM02,4#
BROWN,TRIM00,01,40,50
CHAMPANE GOLD,TRIM00
NATURAL BROWN,TRIM01,10,20,50
NATURAL BROWN,TRIM24
BLACK,TRIM1#,23,51
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,51
VERSION L,BLACK,TRIM1#,23,51
VERSION L,BLACK,TRIM10,20,40,50
BLACK,TRIM10,20,40,50
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM1#,23,5#
VERSION L&CIGARETTE LIGHTER-WITH,BLACK,TRIM10,20,40,50
VERSION L,BLACK,TRIM1#,23,5#
BLACK,TRIM1#,23,5#
DK.BROWN,TRIM01
VERSION L,DK.BROWN,TRIM01,20,50
DK.BROWN,TRIM01,20,50
VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01,20,50
VERSION L,DK.BROWN,TRIM01
VERSION L&CIGARETTE LIGHTER-WITH,DK.BROWN,TRIM01
VERSION L&CIGARETTE LIGHTER-WITH,CHAMPANE GOLD,TRIM00
VERSION L,CHAMPANE GOLD,TRIM00
CHAMPANE GOLD,TRIM00
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM02,4#
BROWN,TRIM02,4#
VERSION L,BROWN,TRIM02,4#
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM00,01,40,50
VERSION L,BROWN,TRIM00,01,40,50
BROWN,TRIM00,01,40,50
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM24
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,10,20,50
NATURAL BROWN,TRIM01,10,20,50
VERSION L,NATURAL BROWN,TRIM01,10,20,50
NATURAL BROWN,TRIM24
VERSION L,NATURAL BROWN,TRIM24
58808COVER SUB-ASSY, SHIFTING HOLE
58821CPANEL, CONSOLE, UPPER
BLACK,TRIM23,5#
BLACK,TRIM2#,51
BLACK,TRIM1#,23,3#,5#
BLACK,TRIM1#,23,5#
BLACK,TRIM23,51
BLACK,TRIM1#,23,51
BLACK,TRIM1#,23,3#,51
BLACK,TRIM10,20,40,50
BLACK,TRIM51
BLACK,TRIM23,3#,51
BLACK WOOD,TRIM21,22
BLACK WOOD,TRIM2#
DK.BROWN,TRIM01,50
DK.BROWN,TRIM01,20,50
DK.BROWN,TRIM01
CHAMPANE GOLD,TRIM00
BROWN,TRIM4#
BROWN,TRIM02,4#
VERSION L&CIGARETTE LIGHTER-WITH,BROWN,TRIM4#
VERSION L,BROWN,TRIM4#
BROWN,TRIM00,01,40,50
NATURAL BROWN,TRIM04
NATURAL BROWN,TRIM24
VERSION L&CIGARETTE LIGHTER-WITH,NATURAL BROWN,TRIM01,04,20,50
NATURAL BROWN,TRIM01,10,20,50
VERSION L,NATURAL BROWN,TRIM04
58890APANEL ASSY, EQUIPMENT SET
BLACK,TRIM1#,23,5#
BLACK,TRIM1#,2#,5#
BLACK,TRIM3#,5#
BLACK WOOD,TRIM2#
BLACK WOOD,TRIM21,22
DK.BROWN,TRIM01
WHITE GOLD,TRIM00
BROWN,TRIM02,4#
VERSION L,BROWN,TRIM00,01,4#,50
sub58890-50061
VERSION L,NATURAL BROWN,TRIM01,10,20,50
sub58890-50061
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,51
sub58890-50062
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,51
sub58890-50062
EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM01,20,50
sub58890-50062
EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01,20,50
sub58890-50062
EXECUTIVE PACKAGE(5SEAT),CHAMPANE GOLD,TRIM00
sub58890-50062
EXECUTIVE PACKAGE(4SEAT),CHAMPANE GOLD,TRIM00
sub58890-50062
EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM02,4#
sub58890-50062
EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM02,4#
sub58890-50062
EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24
sub58890-50062
EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24
sub58890-50062
VERSION L,BLACK,TRIM1#,23,5#
VERSION L,BLACK,TRIM2#,51
BLACK,TRIM1#,23,5#
BLACK,TRIM23,5#
BLACK,TRIM2#,51
EXECUTIVE PACKAGE(5SEAT),BLACK,TRIM1#,23,5#
EXECUTIVE PACKAGE(4SEAT),BLACK,TRIM1#,23,5#
DK.BROWN,TRIM01,50
DK.BROWN,TRIM01
VERSION L,DK.BROWN,TRIM01,50
VERSION L,DK.BROWN,TRIM01
EXECUTIVE PACKAGE(4SEAT),DK.BROWN,TRIM01
EXECUTIVE PACKAGE(5SEAT),DK.BROWN,TRIM01
WHITE GOLD,TRIM00
EXECUTIVE PACKAGE(5SEAT),WHITE GOLD,TRIM00
EXECUTIVE PACKAGE(4SEAT),WHITE GOLD,TRIM00
VERSION L,WHITE GOLD,TRIM00
EXECUTIVE PACKAGE(5SEAT),BROWN,TRIM02,4#
BROWN,TRIM02,4#
VERSION L,BROWN,TRIM4#
VERSION L,BROWN,TRIM02,4#
EXECUTIVE PACKAGE(4SEAT),BROWN,TRIM02,4#
BROWN,TRIM4#
EXECUTIVE PACKAGE(5SEAT),NATURAL BROWN,TRIM24
NATURAL BROWN,TRIM24
VERSION L,NATURAL BROWN,TRIM24
EXECUTIVE PACKAGE(4SEAT),NATURAL BROWN,TRIM24
BLACK,TRIM1#,23,5#
BLACK WOOD,TRIM21,22
DK.BROWN,TRIM01
BROWN,TRIM02,4#
BLACK,TRIM1#,23,5#
VERSION L,BLACK,TRIM1#,23,5#
DK.BROWN,TRIM01
VERSION L,DK.BROWN,TRIM01
WHITE GOLD,TRIM00
VERSION L,WHITE GOLD,TRIM00
BROWN,TRIM02,4#
VERSION L,BROWN,TRIM02,4#
NATURAL BROWN,TRIM24
VERSION L,NATURAL BROWN,TRIM24
58959CCUSHION, CONSOLE COMPARTMENT DOOR
8401
8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-43020
9046710201
main90467-10201
9046710203
main90467-10203
9354055012
main93540-55012
9356854512
main93568-54512
9356855012
main93568-55012
20 parts on this diagram · 6 diagrams in section
