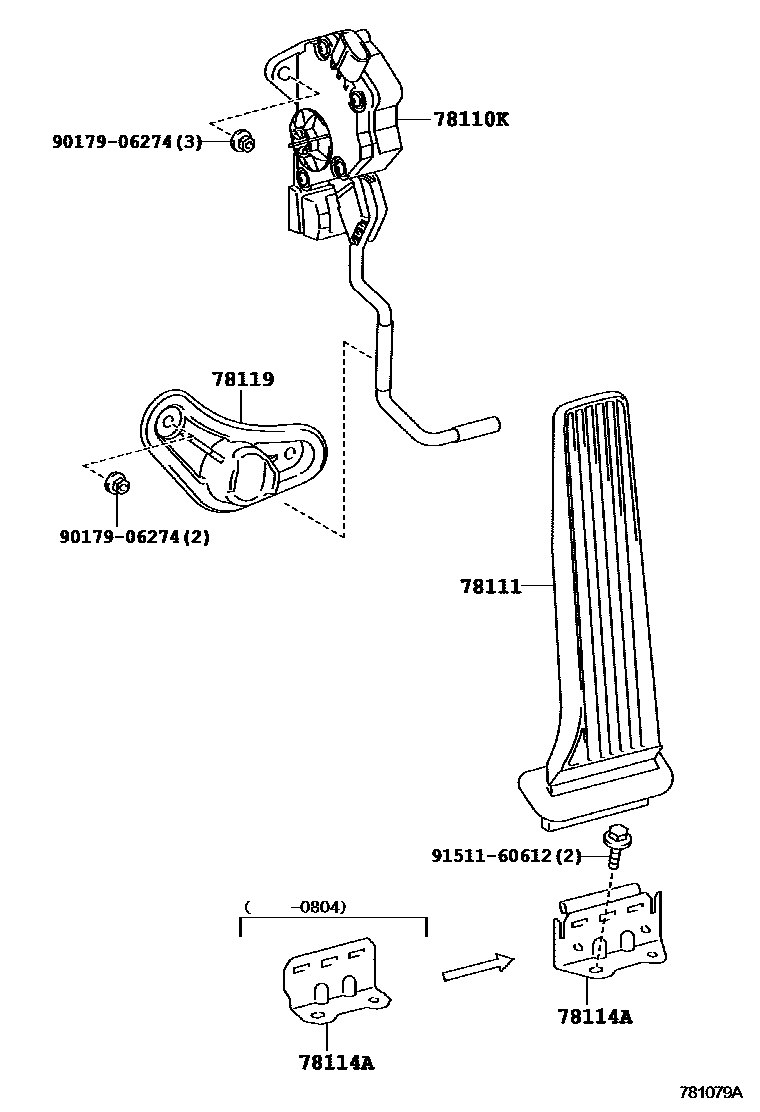

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-50010iUSF4#..LHD200608-200909

sub78110-50050

main78110-50020iUSF4#..RHD200608-200909

sub78110-50060

78111PEDAL, ACCELERATOR

main78111-30130iUSF4#200608-200909

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main55155-50010iUSF4#..LHD200608-200809

sub78108-50030

main55155-50020iUSF4#..RHD200608-200804

sub78108-50040

main78108-50030iUSF4#..LHD200809-200909

main78108-50040iUSF4#..RHD200804-200909

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50070iUSF4#..LHD200608-200909

main78119-50080iUSF4#..RHD200608-200909

9017906274

main90179-06274

9151160612

main91511-60612

6 parts on this diagram · 2 diagrams in section
