REAR SPRING & SHOCK ABSORBER

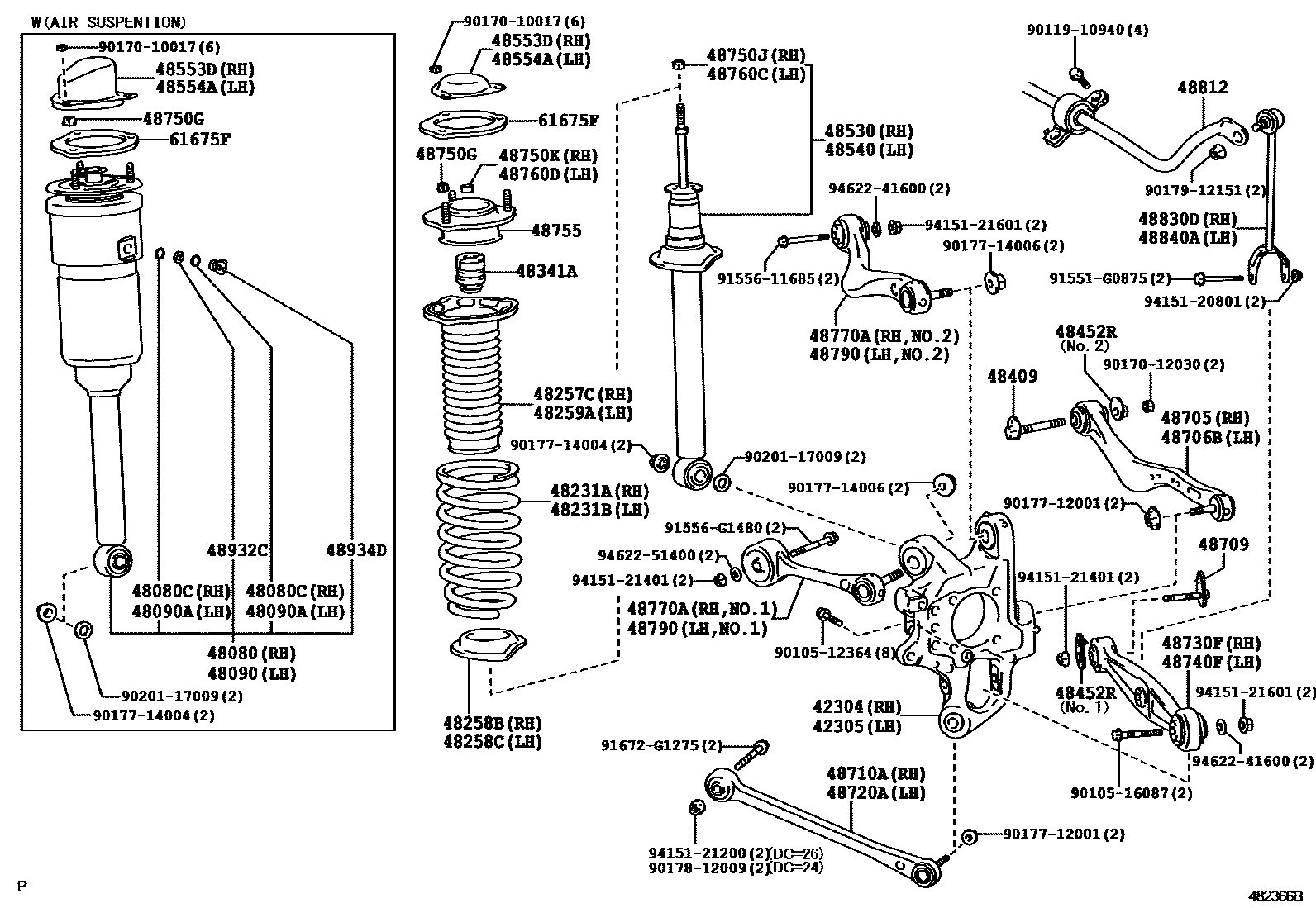

Parts diagram
42304CARRIER SUB-ASSY, REAR AXLE, RH
main42304-50100i200608-201209
42305CARRIER SUB-ASSY, REAR AXLE, LH
main42305-50100i200608-201209
48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
main48080-50160i200608-200708
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50160i200608-200708
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50160i200608-200708
FORMOSA SPEC
sub48080-50163
main48080-50160i200608-200708
ISRAEL SPEC
sub48080-50163
main48080-50160i200608-200708
SUSPENSION-COIL SPRING
sub48080-50163
main48080-50160i200608-200708
SUSPENSION-SPORT AIR SUSPENTION
sub48080-50163
main48080-50160i200608-200708
RUSSIA SPEC
sub48080-50163
main48080-50160i200608-200708
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50160i200608-200708
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50160i200608-200708
HONG KONG SPEC
sub48080-50163
main48080-50160i200608-200708
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
HONG KONG SPEC
sub48080-50163
main48080-50161i200708-200712
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
FORMOSA SPEC
sub48080-50163
main48080-50161i200708-200712
ISRAEL SPEC
sub48080-50163
main48080-50161i200708-200712
SUSPENSION-COIL SPRING
sub48080-50163
main48080-50161i200708-200712
RUSSIA SPEC
sub48080-50163
main48080-50163i200712-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200712-200809
RUSSIA SPEC
sub48080-50164
main48080-50163i200712-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200712-200909
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200712-200809
HONG KONG SPEC
sub48080-50164
main48080-50163i200712-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200712-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200712-200909
FORMOSA SPEC
sub48080-50164
main48080-50163i200712-200909
ISRAEL SPEC
sub48080-50164
main48080-50163i200712-200809
SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50163i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48080-50164
main48080-50163i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48080-50164
main48080-50163i200809-200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48080-50164
main48080-50240i200809-200909
sub48080-50241
main48080-50300i200909-201102
sub48080-50301
main48080-50301i201103-201209
main48080-50320i200909-201102
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
ISRAEL SPEC
sub48080-50321
main48080-50320i200909-201102
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i200909-201102
PHILIPPINES SPEC
sub48080-50321
main48080-50320i200909-201102
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48080-50321
main48080-50320i201009-201102
BEIJING SPEC
sub48080-50321
main48080-50320i201009-201102
CHINA(EXCEPT BEIJING) SPEC
sub48080-50321
main48080-50321i201103-201209
SUSPENSION-COIL SPRING
main48080-50321i201103-201209
PHILIPPINES SPEC
main48080-50321i201103-201209
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
HONG KONG SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
ISRAEL SPEC
main48080-50321i201103-201209
ISRAEL SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main48080-50321i201103-201209
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)
main90301-04011i200608-200909
RUSSIA SPEC
main90301-04011i200608-200809
HONG KONG SPEC
main90301-04011i200608-200909
FORMOSA SPEC
main90301-04011i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
THAILAND SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
ISRAEL SPEC
main90301-04011i200909
PHILIPPINES SPEC
main90301-04011i200909
HONG KONG SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
SUSPENSION-COIL SPRING
main90301-04011i200909
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
main90301-04011i201009
48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
main48090-50160i200608-200708
RUSSIA SPEC
sub48090-50163
main48090-50160i200608-200708
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50160i200608-200708
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50160i200608-200708
HONG KONG SPEC
sub48090-50163
main48090-50160i200608-200708
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50160i200608-200708
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50160i200608-200708
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50160i200608-200708
FORMOSA SPEC
sub48090-50163
main48090-50160i200608-200708
ISRAEL SPEC
sub48090-50163
main48090-50160i200608-200708
SUSPENSION-COIL SPRING
sub48090-50163
main48090-50160i200608-200708
SUSPENSION-SPORT AIR SUSPENTION
sub48090-50163
main48090-50161i200708-200712
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50161i200708-200712
RUSSIA SPEC
sub48090-50163
main48090-50161i200708-200712
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50161i200708-200712
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50161i200708-200712
HONG KONG SPEC
sub48090-50163
main48090-50161i200708-200712
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50161i200708-200712
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48090-50163
main48090-50161i200708-200712
FORMOSA SPEC
sub48090-50163
main48090-50161i200708-200712
ISRAEL SPEC
sub48090-50163
main48090-50161i200708-200712
SUSPENSION-COIL SPRING
sub48090-50163
main48090-50163i200712-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200712-200809
HONG KONG SPEC
sub48090-50164
main48090-50163i200712-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200712-200909
FORMOSA SPEC
sub48090-50164
main48090-50163i200712-200909
ISRAEL SPEC
sub48090-50164
main48090-50163i200712-200809
SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200712-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200712-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200712-200809
RUSSIA SPEC
sub48090-50164
main48090-50163i200712-200909
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50163i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48090-50164
main48090-50163i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48090-50164
main48090-50163i200809-200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48090-50164
main48090-50240i200809-200909
sub48090-50241
main48090-50300i200909-201102
sub48090-50301
main48090-50301i201103-201209
main48090-50320i200909-201102
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
PHILIPPINES SPEC
sub48090-50321
main48090-50320i200909-201102
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
ISRAEL SPEC
sub48090-50321
main48090-50320i200909-201102
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i200909-201102
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
sub48090-50321
main48090-50320i201009-201102
BEIJING SPEC
sub48090-50321
main48090-50320i201009-201102
CHINA(EXCEPT BEIJING) SPEC
sub48090-50321
main48090-50321i201103-201209
PHILIPPINES SPEC
main48090-50321i201103-201209
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
HONG KONG SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
ISRAEL SPEC
main48090-50321i201103-201209
ISRAEL SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
SUSPENSION-COIL SPRING
main48090-50321i201103-201209
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main48090-50321i201103-201209
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)
main90301-04011i200809-200909
ISRAEL SPEC
main90301-04011i200608-200909
RUSSIA SPEC
main90301-04011i200608-200809
HONG KONG SPEC
main90301-04011i200608-200909
FORMOSA SPEC
main90301-04011i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
THAILAND SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
main90301-04011i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main90301-04011i200909
PHILIPPINES SPEC
main90301-04011i200909
HONG KONG SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
SUSPENSION-COIL SPRING
main90301-04011i200909
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main90301-04011i200909
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
main90301-04011i201009
48231ASPRING, COIL, REAR RH
main48231-50240i200608-200705
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48231-50241
main48231-50240i200608-200705
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48231-50241
main48231-50240i200608-200705
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48231-50241
main48231-50240i200608-200705
ISRAEL SPEC
sub48231-50241
main48231-50241i200705-200808
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48231-50242
main48231-50241i200705-200808
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48231-50242
main48231-50241i200705-200808
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48231-50242
main48231-50241i200705-200808
ISRAEL SPEC
sub48231-50242
main48231-50242i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50250i200608-200705
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48231-50251
main48231-50250i200608-200705
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48231-50251
main48231-50251i200705-200808
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48231-50252
main48231-50251i200705-200808
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48231-50252
main48231-50252i200809-200909
sub48231-50330
main48231-50320i200909
main48231-50330i200909
CHINA(EXCEPT BEIJING) SPEC
main48231-50330i200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
BRAZIL SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
PHILIPPINES SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
SOUTH AMERICA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
BEIJING SPEC
main48231-50330i200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
THAILAND/INDONESIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
SINGAPOLE/BRUNEI SPEC&SUSPENSION-SPORT AIR SUSPENTION
48231BSPRING, COIL, REAR LH
main48231-50240i200608-200705
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48231-50241
main48231-50240i200608-200705
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48231-50241
main48231-50240i200608-200705
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48231-50241
main48231-50240i200608-200705
ISRAEL SPEC
sub48231-50241
main48231-50241i200705-200808
ISRAEL SPEC
sub48231-50242
main48231-50241i200705-200808
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48231-50242
main48231-50241i200705-200808
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48231-50242
main48231-50241i200705-200808
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48231-50242
main48231-50242i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50242i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48231-50320
main48231-50250i200608-200705
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48231-50251
main48231-50250i200608-200705
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48231-50251
main48231-50251i200705-200808
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48231-50252
main48231-50251i200705-200808
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48231-50252
main48231-50252i200809-200909
sub48231-50330
main48231-50320i200909
main48231-50330i200909
PHILIPPINES SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
SOUTH AMERICA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
BEIJING SPEC
main48231-50330i200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
CHINA(EXCEPT BEIJING) SPEC
main48231-50330i200909-201009
SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
BRAZIL SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
THAILAND/INDONESIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48231-50330i200909-201009
SINGAPOLE/BRUNEI SPEC&SUSPENSION-SPORT AIR SUSPENTION
48257CINSULATOR, REAR COIL SPRING, UPPER RH
main48257-50030i200608-200809
ISRAEL SPEC
main48257-50030i200608-200909
SUSPENSION-COIL SPRING
main48257-50030i200909-201009
48258BINSULATOR, REAR COIL SPRING, LOWER RH
main48158-30020i200608-200909
SUSPENSION-COIL SPRING
main48158-30020i200608-200809
ISRAEL SPEC
main48158-30020i200909-201009
48258CINSULATOR, REAR COIL SPRING, LOWER LH
main48158-30020i200608-200809
ISRAEL SPEC
main48158-30020i200608-200909
SUSPENSION-COIL SPRING
main48158-30020i200909-201009
48259AINSULATOR, REAR COIL SPRING, UPPER LH
main48257-50030i200909-201009
main48257-50030i200608-200809
ISRAEL SPEC
main48257-50030i200608-200909
SUSPENSION-COIL SPRING
48341ABUMPER, REAR SPRING, NO.1 RH
main48341-50080i200608-200909
SUSPENSION-COIL SPRING
main48341-50080i200909-201009
main48341-50080i200608-200809
ISRAEL SPEC
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
main48409-50020i200608-200909
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
main48452-50010i200608-201209
MARK1,NO.1,REFER R/M
main48452-50020i200608-201209
MARK2,NO.1,REFER R/M
main48452-50030i200608-201209
MARK3,NO.1,REFER R/M
main48452-50040i200608-201209
NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-80387i200608-200909
MARK 48530-50190,SUSPENSION-COIL SPRING
main48530-80387i200608-201009
MARK 48530-50190
main48530-80387i200608-200809
MARK 48530-50190,ISRAEL SPEC
main48530-80387i200909-201009
MARK 48530-50190,SUSPENSION-SPORT AIR SUSPENTION
main48530-80387i200909
MARK 48530-50190,BEIJING SPEC
main48530-80387i200909
MARK 48530-50190,CHINA(EXCEPT BEIJING) SPEC
48540ABSORBER ASSY, SHOCK, REAR LH
main48540-59065i200608-201009
MARK 48540-50020
main48540-59065i200608-200809
MARK 48540-50020,ISRAEL SPEC
main48540-59065i200608-200909
MARK 48540-50020,SUSPENSION-COIL SPRING
main48540-59065i200909-201009
MARK 48540-50020,SUSPENSION-SPORT AIR SUSPENTION
main48540-59065i200909
MARK 48540-50020,BEIJING SPEC
main48540-59065i200909
MARK 48540-50020,CHINA(EXCEPT BEIJING) SPEC
48553DCAP, REAR SHOCK ABSORBER, RH
main48553-50051i200608-200609
SUSPENSION-SPORT AIR SUSPENTION
sub48553-50052
main48553-50051i200608-200609
RUSSIA SPEC
sub48553-50052
main48553-50051i200608-200609
HONG KONG SPEC
sub48553-50052
main48553-50051i200608-200609
FORMOSA SPEC
sub48553-50052
main48553-50052i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48553-50053
main48553-50052i200610-200809
HONG KONG SPEC
sub48553-50053
main48553-50052i200610-200909
FORMOSA SPEC
sub48553-50053
main48553-50052i200610-200909
RUSSIA SPEC
sub48553-50053
main48553-50052i200809-201010
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200809-200909
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48553-50053
main48553-50052i200809-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200809-201010
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200809-200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48553-50053
main48553-50052i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48553-50053
main48553-50052i200809-201010
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200809-200909
THAILAND SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48553-50053
main48553-50052i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48553-50053
main48553-50052i200809-201010
ISRAEL SPEC
sub48553-50053
main48553-50052i200809-201010
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200909-201010
PHILIPPINES SPEC
sub48553-50053
main48553-50052i200909-201010
HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200909-201010
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200909-201010
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200909-201010
SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200909-201010
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i200909-201010
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
sub48553-50053
main48553-50052i201009-201010
BEIJING SPEC
sub48553-50053
main48553-50052i201009-201010
CHINA(EXCEPT BEIJING) SPEC
sub48553-50053
main48553-50053i201011-201112
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
ISRAEL SPEC
sub48553-50054
main48553-50053i201011-201112
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48553-50054
main48553-50053i201011-201112
PHILIPPINES SPEC
sub48553-50054
main48553-50054i201201
ISRAEL SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48553-50054i201201
HONG KONG SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48553-50054i201201
ISRAEL SPEC
main48553-50054i201201
SUSPENSION-COIL SPRING
main48553-50054i201201
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
PHILIPPINES SPEC
main48553-50054i201201
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main48553-50054i201201
SOUTH AMERICA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48553-50100i200909-201009
main48553-50100i200608-200809
ISRAEL SPEC
main48553-50100i200608-200909
SUSPENSION-COIL SPRING
48554ACAP, REAR SHOCK ABSORBER, LH
main48553-50100i200608-200809
ISRAEL SPEC
main48553-50100i200608-200909
SUSPENSION-COIL SPRING
main48553-50100i200909-201009
main48554-50061i200608-200609
RUSSIA SPEC
sub48554-50062
main48554-50061i200608-200609
SUSPENSION-SPORT AIR SUSPENTION
sub48554-50062
main48554-50061i200608-200609
FORMOSA SPEC
sub48554-50062
main48554-50061i200608-200609
HONG KONG SPEC
sub48554-50062
main48554-50062i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200610-200909
RUSSIA SPEC
sub48554-50063
main48554-50062i200610-200809
HONG KONG SPEC
sub48554-50063
main48554-50062i200610-200909
FORMOSA SPEC
sub48554-50063
main48554-50062i200809-201010
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200809-200909
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48554-50063
main48554-50062i200809-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200809-201010
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200809-200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48554-50063
main48554-50062i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48554-50063
main48554-50062i200809-201010
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200809-200909
THAILAND SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48554-50063
main48554-50062i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48554-50063
main48554-50062i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
sub48554-50063
main48554-50062i200809-201010
ISRAEL SPEC
sub48554-50063
main48554-50062i200809-201010
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200909-201010
PHILIPPINES SPEC
sub48554-50063
main48554-50062i200909-201010
HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200909-201010
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200909-201010
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200909-201010
SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200909-201010
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i200909-201010
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
sub48554-50063
main48554-50062i201009-201010
BEIJING SPEC
sub48554-50063
main48554-50062i201009-201010
CHINA(EXCEPT BEIJING) SPEC
sub48554-50063
main48554-50063i201011-201112
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
ISRAEL SPEC
sub48554-50064
main48554-50063i201011-201112
ISRAEL SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
PHILIPPINES SPEC
sub48554-50064
main48554-50063i201011-201112
MALAYSIA SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
HONG KONG SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50063i201011-201112
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
sub48554-50064
main48554-50064i201201
HONG KONG SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48554-50064i201201
ISRAEL SPEC
main48554-50064i201201
SUSPENSION-COIL SPRING
main48554-50064i201201
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
PHILIPPINES SPEC
main48554-50064i201201
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
SOUTH AMERICA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48554-50064i201201
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main48554-50064i201201
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48554-50064i201201
ISRAEL SPEC&SUSPENSION-COIL SPRING
48705LINK SUB-ASSY, TOE CONTROL, RH
main48705-50030i200608-200909
48706BLINK SUB-ASSY, TOE CONTROL, LH
main48706-50020i200608-200909
48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM
main48709-50040i200608-201209
MARK 1,REFER R/M
main48709-50050i200608-201209
MARK 2,REFER R/M
main48709-50060i200608-201209
MARK 3,REFER R/M
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
main48710-50080i200608-200909
sub48710-40080
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
main48710-50080i200608-200909
sub48710-40080
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
main48730-50110i200608-200702
sub48730-50111
main48730-50111i200703-200909
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
main48730-50110i200608-200702
sub48730-50111
main48730-50111i200703-200909
48750GNUT(FOR REAR SUSPENSION SUPPORT)
main90179-10088i200608-200909
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
main90177-12002i200608-200809
ISRAEL SPEC
main90177-12002i200608-200909
SUSPENSION-COIL SPRING
main90177-12002i200909-201009
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
main90387-12057i200608-200809
ISRAEL SPEC
main90387-12057i200608-200909
SUSPENSION-COIL SPRING
main90387-12057i200909-201009
48755SUPPORT, REAR SUSPENSION
main48755-50120i200608-200902
SUSPENSION-COIL SPRING
sub48755-50121
main48755-50120i200608-200809
ISRAEL SPEC
sub48755-50121
main48755-50121i200903-200909
SUSPENSION-COIL SPRING
main48755-50121i200909-201009
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
main90177-12002i200608-200809
ISRAEL SPEC
main90177-12002i200608-200909
SUSPENSION-COIL SPRING
main90177-12002i200909-201009
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
main90387-12057i200608-200809
ISRAEL SPEC
main90387-12057i200608-200909
SUSPENSION-COIL SPRING
main90387-12057i200909-201009
48770AARM ASSY, UPPER CONTROL, REAR RH
main48710-50090i200608-201209
NO.1
main48770-50060i200608-201209
NO.2
48790ARM ASSY, UPPER CONTROL, REAR LH
main48710-50090i200608-201209
NO.1
main48790-50080i200608-201209
NO.2
48812BAR, STABILIZER, REAR
main48805-50020i200608-200909
48830DLINK ASSY, REAR STABILIZER, RH
main48830-50040i200608-200909
48840ALINK ASSY, REAR STABILIZER, LH
main48840-50020i200608-200909
48932CPLATE, HEIGHT CONTROL TUBE
main48932-30010i200909
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main48932-30010i200608-200909
RUSSIA SPEC
main48932-30010i200608-200809
HONG KONG SPEC
main48932-30010i200608-200909
FORMOSA SPEC
main48932-30010i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main48932-30010i200809-200909
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48932-30010i200809-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
main48932-30010i200809-200909
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main48932-30010i200809-200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48932-30010i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48932-30010i200809-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main48932-30010i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
main48932-30010i200809-200909
THAILAND SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48932-30010i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
main48932-30010i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48932-30010i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48932-30010i200809-200909
ISRAEL SPEC
main48932-30010i200909
PHILIPPINES SPEC
main48932-30010i200909
HONG KONG SPEC&SUSPENSION-COIL SPRING
main48932-30010i200909
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main48932-30010i200909
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main48932-30010i200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
main48932-30010i200909
SUSPENSION-COIL SPRING
main48932-30010i200909
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
main48932-30010i201009
48934DCONNECTOR, HEIGHT CONTROL TUBE
main48934-30010i200608-200909
RUSSIA SPEC
main48934-30010i200608-200809
HONG KONG SPEC
main48934-30010i200608-200909
FORMOSA SPEC
main48934-30010i200809-200909
MALAYSIA SPEC&SUSPENSION-COIL SPRING
main48934-30010i200809-200909
MALAYSIA SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48934-30010i200809-200909
NEW ZEALAND SPEC&SUSPENSION-COIL SPRING
main48934-30010i200809-200909
AUSTRALIA SPEC&SUSPENSION-COIL SPRING
main48934-30010i200809-200909
BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48934-30010i200809-200909
HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48934-30010i200809-200909
SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING
main48934-30010i200809-200909
THAILAND SPEC&SUSPENSION-COIL SPRING
main48934-30010i200809-200909
THAILAND SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48934-30010i200809-200909
SINGAPORE SPEC&SUSPENSION-COIL SPRING
main48934-30010i200809-200909
SINGAPORE SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48934-30010i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION
main48934-30010i200809-200909
ISRAEL SPEC
main48934-30010i200909
PHILIPPINES SPEC
main48934-30010i200909
HONG KONG SPEC&SUSPENSION-COIL SPRING
main48934-30010i200909
THAILAND/INDONESIA SPEC&SUSPENSION-COIL SPRING
main48934-30010i200909
SINGAPOLE/BRUNEI SPEC&SUSPENSION-COIL SPRING
main48934-30010i200909
ISRAEL SPEC&SUSPENSION-COIL SPRING
main48934-30010i200909
SUSPENSION-COIL SPRING
main48934-30010i200909
PHILIPPINES SPEC&SUSPENSION-COIL SPRING
main48934-30010i200909
SOUTH AMERICA SPEC&SUSPENSION-COIL SPRING
main48934-30010i201009
61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
main61675-50030i200608-200909
9010512364
main90105-12364
9010516087
main90105-16087
9011910940
main90119-10940
9017010017
main90170-10017
9017012030
main90170-12030
9017712001
main90177-12001
9017714004
main90177-14004
9017714006
main90177-14006
9017812009
main90178-12009
9017912151
main90179-12151
9020117009
main90201-17009
91551G0875
main91551-G0875
9155611685
main91556-11685
91556G1480
main91556-G1480
91672G1275
main91672-G1275
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9415121601
main94151-21601
9462241600
main94622-41600
9462251400
main94622-51400

61 parts on this diagram · 1 diagram in section

REAR SPRING & SHOCK ABSORBER — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
