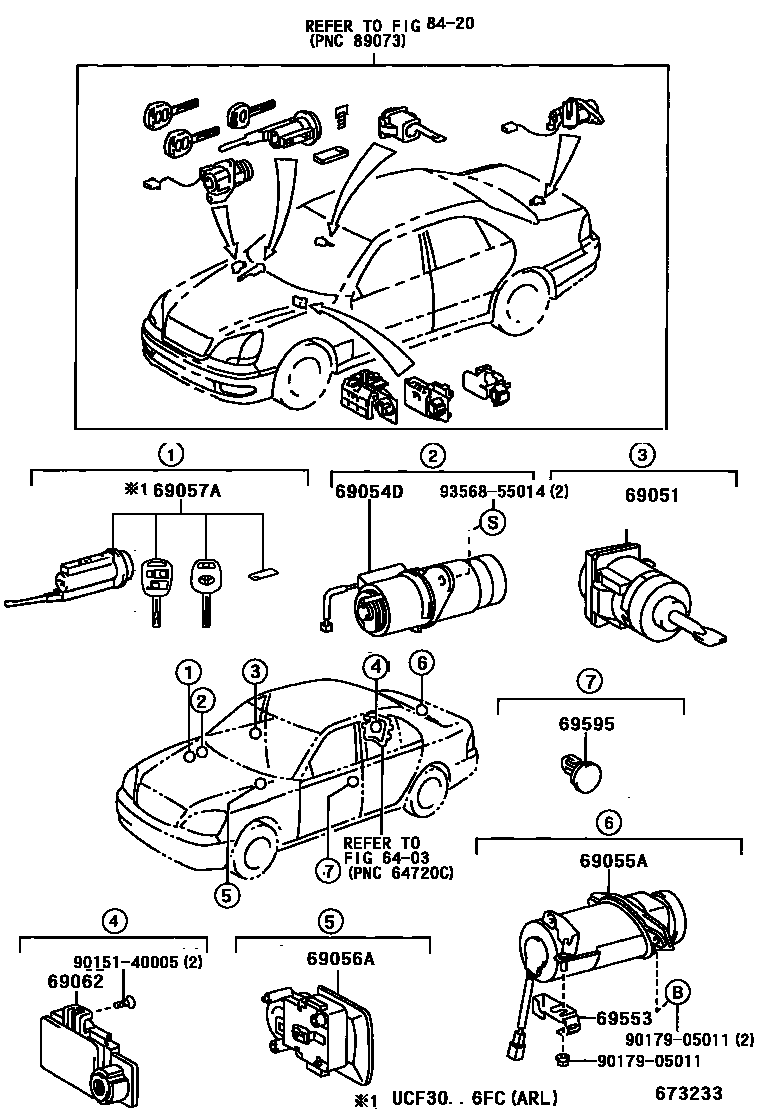

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1

6403

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-50150iUCF30..RHD..EUR200008-200608

main69051-50160iUCF30..ARL200008-200608

69054DCYLINDER & KEY SET, LUGGAGE OPENER CANCEL

main69053-50080iUCF30200008-200608

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-50140iUCF30..ARL,GCC200008-200608

main69055-50150iUCF30..EUR200008-200608

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50130iUCF30200008-200307

UPPER

main69056-50130iUCF30200307-200608

main69056-50140iUCF30200008-200307

LOWER

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-50170iUCF30..ARL,GCC200307-200604

sub69057-50171

main69057-50171iUCF30..ARL,GCC200605

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50150iUCF30200008-200608

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-50010iUCF30..RHD..EUR200008-200307

69595PROTECTOR, KEY

main69595-50020iUCF30..EUR200008-200307

8420

9015140005

main90151-40005

9017905011

main90179-05011

9356855014

main93568-55014

13 parts on this diagram · 4 diagrams in section
