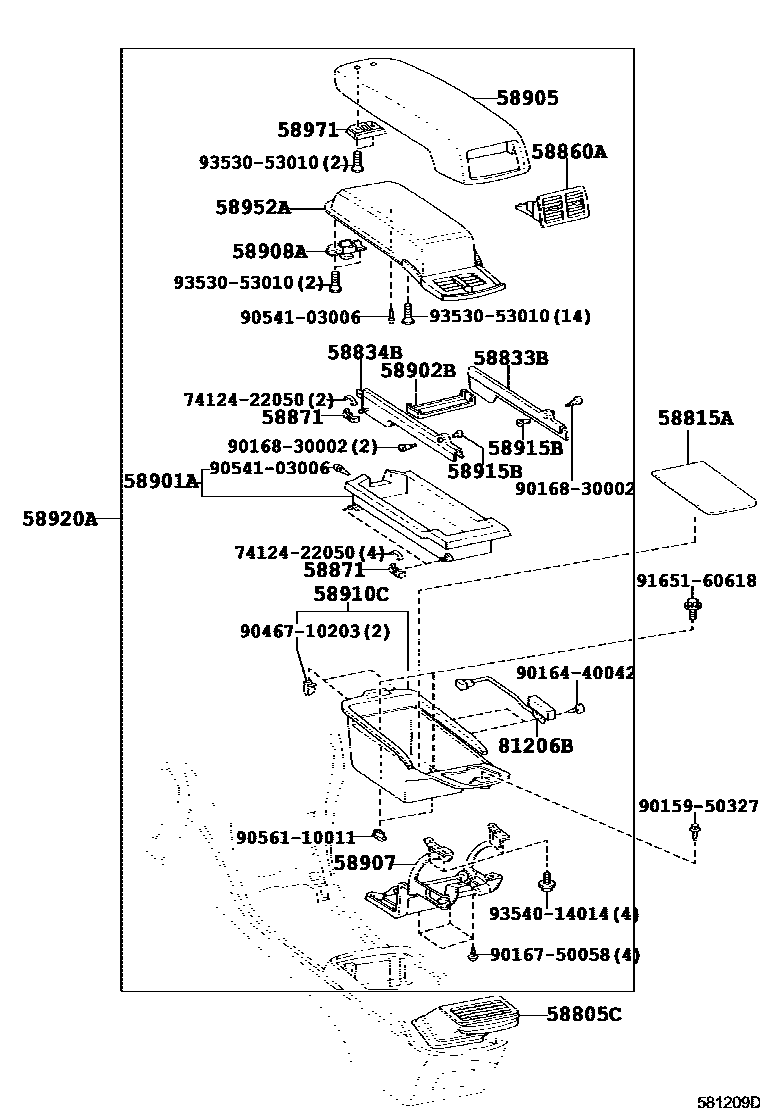

CONSOLE BOX & BRACKET
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
58815ACARPET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
58860AREGISTER ASSY, CONSOLE BOX
58871CUSHION, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
58902BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
CONSOLE BOX=TYPE B-*104,ECRU,TRIM03
CONSOLE BOX=TYPE B-*104,IVORY,TRIM04
CONSOLE BOX=TYPE B-*104,CHARCOAL,TRIM1#
CONSOLE BOX=TYPE B-*104,BLACK,TRIM2#
CONSOLE BOX=TYPE A-*104,BLACK,TRIM2#
CONSOLE BOX=TYPE B-*104,BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
58915BCOVER, CONSOLE COMPARTMENT DOOR BOX, REAR
58920AARMREST ASSY, REAR CONSOLE
CONSOLE BOX=TYPE B-*104,BLACK,TRIM2#
58952ADOOR, CONSOLE COMPARTMENT, INNER
58971LOCK, CONSOLE COMPARTMENT DOOR
81206BLAMP SUB-ASSY, CONSOLE BOX
7412422050SPRING, FRONT ASH RECEPTACLE RETAINER, RH
main74124-22050
9015950327
main90159-50327
9016440042
main90164-40042
9016750058
main90167-50058
9016830002
main90168-30002
9046710203
main90467-10203
9054103006
main90541-03006
9056110011
main90561-10011
9165160618
main91651-60618
9353053010
main93530-53010
9354014014
main93540-14014
28 parts on this diagram · 3 diagrams in section
