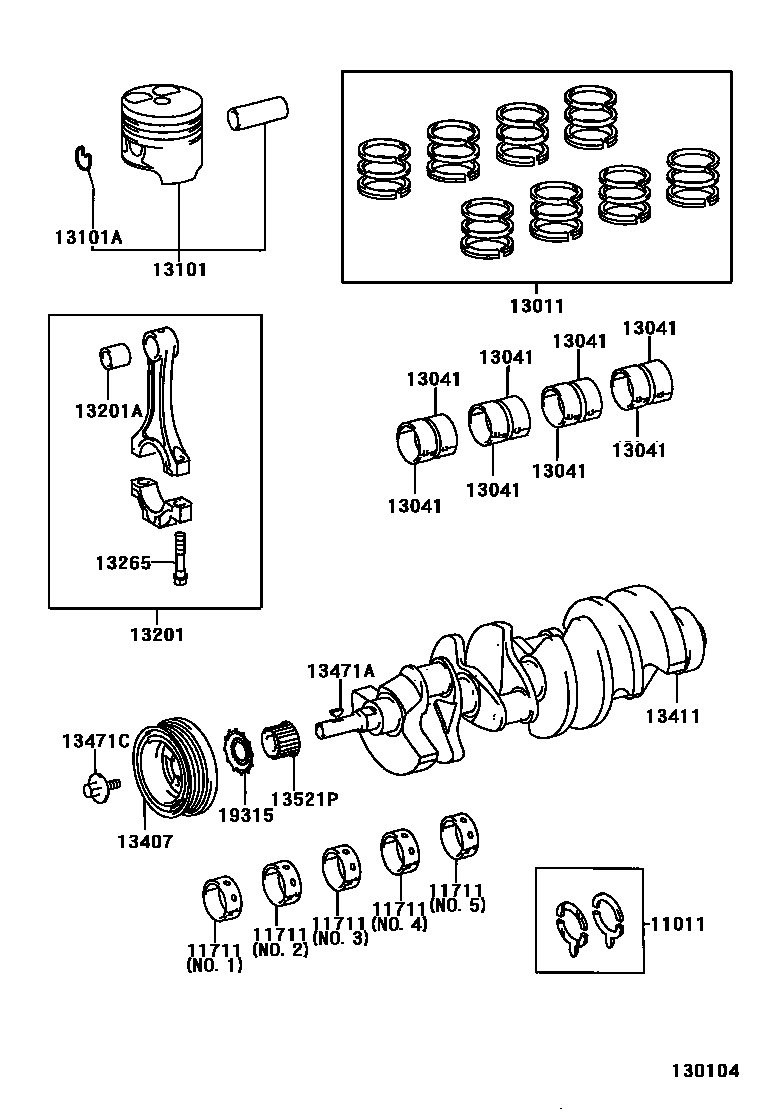

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK UPPER 1 LOWER 1,NO.2,3,4 REFER R/M
MARK UPPER 1 LOWER 2,NO.2,3,4 REFER R/M
MARK UPPER 2 LOWER 2,NO.2,3,4:REFER TO REPAIR MANUAL,MARK UPPER 2 LOWER 2
MARK UPPER 2 LOWER 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK UPPER 2 LOWER 3
MARK UPPER 3 LOWER 3,NO.2,3,4:REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 3
MARK UPPER 3 LOWER 4,NO.2,3,4:REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 4
MARK UPPER 4 LOWER 4,NO.2,3,4 REFER R/M
MARK UPPER 4 LOWER 5,NO.2,3,4 REFER R/M
MARK UPPER 5 LOWER 5,NO.2,3,4:REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 5
MARKUPPER2LOWER1,NO.2,3,4,5 REFER R/M
MARKUPPER1LOWER2,NO.2,3,4,5 REFER R/M
MARKUPPER2LOWER2,NO.2,3,4,5 REFER R/M
MARKUPPER2LOWER3,NO.2,3,4,5 REFER R/M
MARKUPPER3LOWER3,NO.2,3,4,5 REFER R/M
MARKUPPER3LOWER4,NO.2,3,4,5 REFER R/M
MARKUPPER4LOWER4,NO.2,3,4,5 REFER R/M
MARKUPPER4LOWER5,NO.2,3,4,5 REFER R/M
MARKUPPER5LOWER5,NO.2,3,4,5 REFER R/M
MARK UPPER 3 LOWER 3,NO.1,5:REFER TO REPAIR MANUAL,MARK UPPER 3 LOWER 3
MARK UPPER 3 LOWER 4,NO.1,5 REFER R/M
MARK UPPER 4 LOWER 4,NO.1,5 REFER R/M
MARK UPPER 4 LOWER 5,NO.1,5 REFER R/M
MARK UPPER 5 LOWER 5,NO.1,5:REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 5
MARK UPPER 5 LOWER 6,NO.1,5:REFER TO REPAIR MANUAL,MARK UPPER 5 LOWER 6
MARK UPPER 6 LOWER 6,NO.1,5:REFER TO REPAIR MANUAL,MARK UPPER 6 LOWER 6
MARK UPPER 6 LOWER 7,NO.1,5:REFER TO REPAIR MANUAL,MARK UPPER 6 LOWER 7
MARK UPPER 7 LOWER 7,NO.1,5:REFER TO REPAIR MANUAL,MARK UPPER 7 LOWER 7
MARKUPPER3LOWER3,NO.1,5 REFER R/M
MARKUPPER3LOWER4,NO.1,5 REFER R/M
MARKUPPER4LOWER4,NO.1,5 REFER R/M
MARKUPPER4LOWER5,NO.1,5 REFER R/M
MARKUPPER5LOWER5,NO.1,5 REFER R/M
MARKUPPER5LOWER6,NO.1,5 REFER R/M
MARKUPPER6LOWER6,NO.1,5 REFER R/M
MARKUPPER6LOWER7,NO.1,5 REFER R/M
MARKUPPER7LOWER7,NO.1,5 REFER R/M
13011RING SET, PISTON
STD
STD
13041BEARING, CONNECTING ROD
MARK 2:REFER TO REPAIR MANUAL,MARK2
MARK 3:REFER TO REPAIR MANUAL,MARK3
MARK 4:REFER TO REPAIR MANUAL,MARK4
MARK 5:REFER TO REPAIR MANUAL,MARK5
MARK 6:REFER TO REPAIR MANUAL,MARK6
MARK 7:REFER TO REPAIR MANUAL,MARK7
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4:REFER TO REPAIR MANUAL,MARK 4
MARK 5:REFER TO REPAIR MANUAL,MARK 5
MARK 6:REFER TO REPAIR MANUAL,MARK 6
MARK 7:REFER TO REPAIR MANUAL,MARK 7
13101PISTON SUB-ASSY, W/PIN
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1,RH
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2,RH
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3,RH
STD,MARK 1:REFER TO REPAIR MANUAL,MARK 1,LH
STD,MARK 2:REFER TO REPAIR MANUAL,MARK 2,LH
STD,MARK 3:REFER TO REPAIR MANUAL,MARK 3,LH
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13407DAMPER SUB-ASSY, CRANKSHAFT
CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA SPEC; HONG KONG OR SINGAPOLE OR SOUTH AFRICA OR THAILAND SPEC
13411CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
19315PLATE, CRANK ANGLE SENSOR, NO.1
15 parts on this diagram · 1 diagram in section
