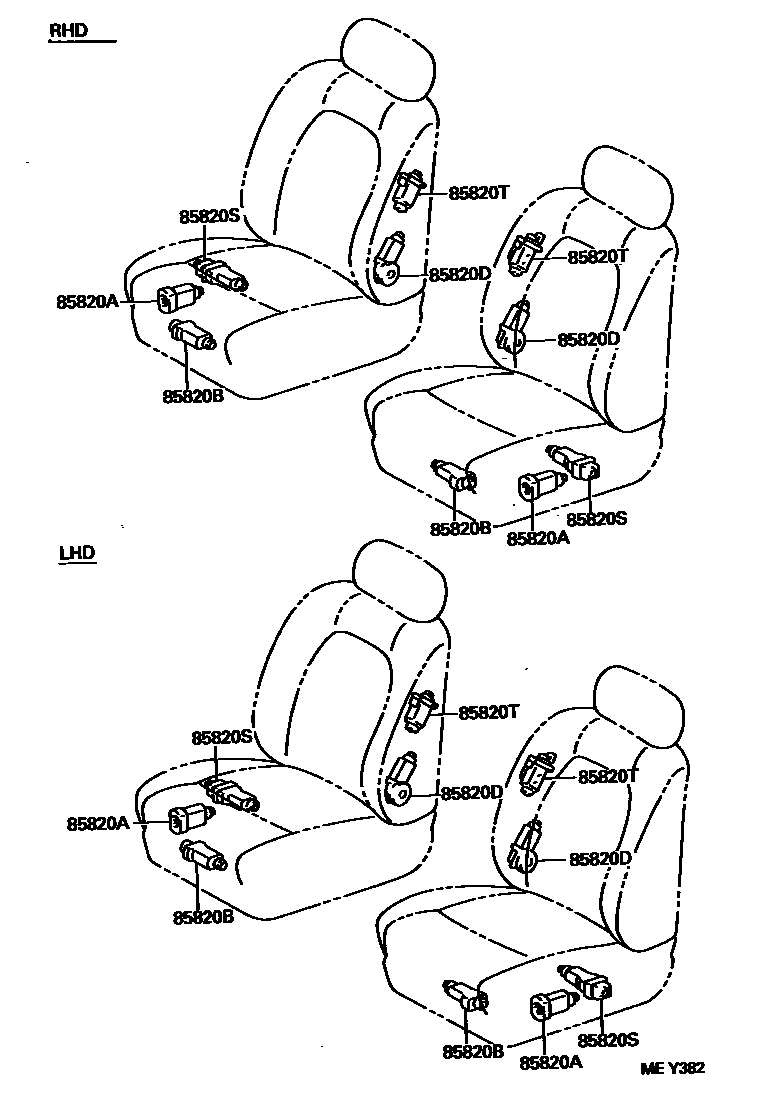

SEAT MOTOR & SEAT HEATER

0001 1 0002 1REAR SEAT

85820MOTOR ASSY, POWER SEAT (FOR REAR)

main85820-30310×2iUCF20..ARL,V199808

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85801-50050iUCF20..LHD199410

LH

main85801-50060iUCF20..RHD199410

RH

main85820-50290iUCF20..RHD199410

LH

main85820-50300iUCF20..LHD199410

RH

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-50250iUCF20..LHD199410

RH

main85820-50260iUCF20..RHD199410

RH

main85820-50270iUCF20..RHD199410

LH

main85820-50280iUCF20..LHD199410

LH

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85801-50090iUCF20..RHD199410

RH

main85801-50100iUCF20..LHD199410

LH

main85820-50380iUCF20..LHD199410

RH

main85820-50390iUCF20..RHD199410

LH

85820SMOTOR ASSY, POWER SEAT

main85820-50330iUCF20..LHD199410

LH

main85820-50420iUCF20..LHD199410

RH

main85820-50430iUCF20..RHD199410

RH

main85820-50440iUCF20..RHD199410

LH

85820TMOTOR ASSY, POWER SEAT

main85820-50240iUCF20199410

LH

main85820-50340iUCF20199410

RH

6 parts on this diagram · 2 diagrams in section
