E
EPC Data

REAR SEAT & SEAT TRACK

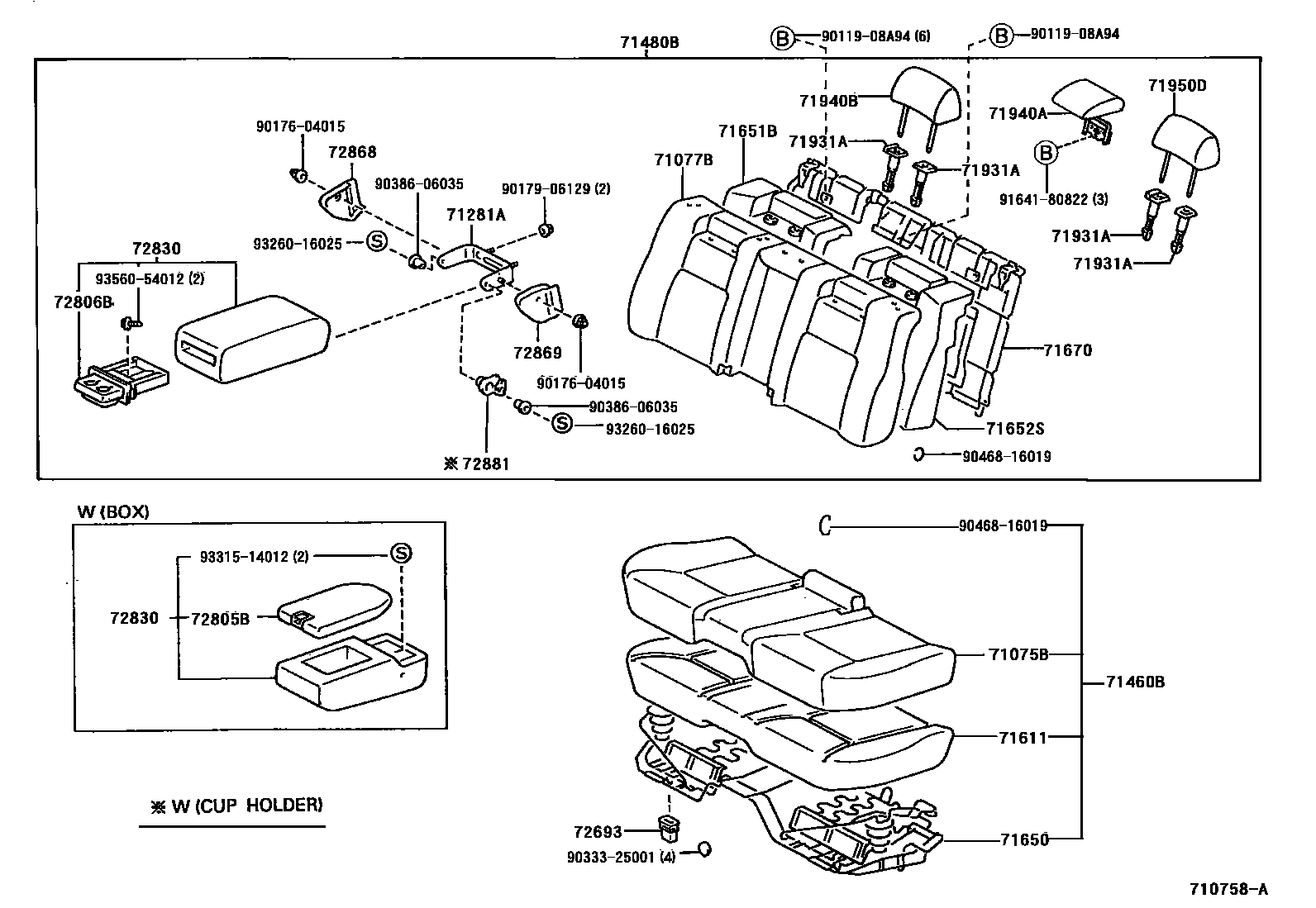

Parts diagram
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-50150-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71075-50150-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71075-50150-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71075-50150-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71075-50220-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71075-50220-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71075-50220-G0i199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71075-50230-A0i199410-199707
IVORY,TRIM0#
main71075-50230-B0i199410-199707
BLUE GRAY,TRIM1#
main71075-50230-C0i199410-199707
BLACK,TRIM2#
main71075-50230-G0i199410-199707
AGATE,TRIM6#
main71075-50240-A0i199707
IVORY,TRIM0#
main71075-50240-B0i199707
BLUE GRAY,TRIM1#
main71075-50240-C0i199707
BLACK,TRIM2#
main71075-50240-G0i199707
AGATE,TRIM6#
main71075-50290-A0i199707
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71075-50290-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71075-50290-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71075-50290-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71075-50310-B0i199707
BLUE GRAY,TRIM1#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-50160-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71077-50160-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71077-50160-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71077-50160-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71077-50230-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71077-50230-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71077-50230-G0i199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71077-50240-A0i199707
IVORY,TRIM0#
main71077-50240-B0i199707
BLUE GRAY,TRIM1#
main71077-50240-C0i199707
BLACK,TRIM2#
main71077-50240-G0i199707
AGATE,TRIM6#
main71077-50250-A0i199410-199707
IVORY,TRIM0#
main71077-50250-B0i199410-199707
BLUE GRAY,TRIM1#
main71077-50250-C0i199410-199707
BLACK,TRIM2#
main71077-50250-G0i199410-199707
AGATE,TRIM6#
main71077-50300-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71077-50300-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71077-50300-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71077-50300-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71077-50320-B0i199707
BLUE GRAY,TRIM1#
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-50040i199410-200008
main71281-50050i199808-200008
SINGAPORE OR THAILAND SPEC; W(REAR POWER SEAT)
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-50270-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71460-50270-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71460-50270-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71460-50270-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71460-50290-A0i199410-199707
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71460-50290-B0i199410-199707
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71460-50290-C0i199410-199707
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71460-50290-G0i199410-199707
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71460-50360-A0i199410-199707
IVORY,TRIM0#
main71460-50360-B0i199410-199707
BLUE GRAY,TRIM1#
main71460-50360-C0i199410-199707
BLACK,TRIM2#
main71460-50360-G0i199410-199707
AGATE,TRIM6#
main71460-50370-A0i199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main71460-50370-C0i199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main71460-50370-G0i199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71460-50380-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71460-50380-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71460-50380-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71460-50380-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71460-50430-A0i199707
IVORY,TRIM0#
main71460-50430-B0i199707
BLUE GRAY,TRIM1#
main71460-50430-C0i199707
BLACK,TRIM2#
main71460-50430-G0i199707
AGATE,TRIM6#
main71460-50440-B0i199707
BLUE GRAY,TRIM1#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-50320-A0i199608-199707
IVORY,TRIM0#
main71480-50320-B0i199608-199707
BLUE GRAY,TRIM1#
main71480-50320-C0i199608-199707
BLACK,TRIM2#
main71480-50320-G0i199608-199707
AGATE,TRIM6#
main71480-50330-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71480-50330-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71480-50330-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71480-50330-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71480-50340-A0i199608-199707
IVORY,TRIM0#
main71480-50340-B0i199608-199707
BLUE GRAY,TRIM1#
main71480-50340-C0i199608-199707
BLACK,TRIM2#
main71480-50340-G0i199608-199707
AGATE,TRIM6#
main71480-50350-A0i199608-199707
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71480-50350-B0i199608-199707
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71480-50350-C0i199608-199707
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71480-50350-G0i199608-199707
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71480-50360-A0i199608-199707
IVORY,TRIM0#; W(REAR AIR CONDITIONER),IVORY,TRIM0#
main71480-50360-B0i199608-199707
BLUE GRAY,TRIM1#; W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main71480-50360-C0i199608-199707
BLACK,TRIM2#; W(REAR AIR CONDITIONER),BLACK,TRIM2#
main71480-50360-G0i199608-199707
W(REAR AIR CONDITIONER),AGATE,TRIM6#
main71480-50370-A0i199410-199608
IVORY,TRIM0#
main71480-50370-B0i199410-199608
BLUE GRAY,TRIM1#
main71480-50370-C0i199410-199608
BLACK,TRIM2#
main71480-50370-G0i199410-199608
AGATE,TRIM6#
main71480-50380-A0i199410-199608
IVORY,TRIM0#
main71480-50380-B0i199410-199608
BLUE GRAY,TRIM1#
main71480-50380-C0i199410-199608
BLACK,TRIM2#
main71480-50380-G0i199410-199608
AGATE,TRIM6#
main71480-50400-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71480-50400-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71480-50400-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71480-50400-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71480-50410-A0i199410-199608
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71480-50410-B0i199410-199608
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71480-50410-C0i199410-199608
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71480-50410-G0i199410-199608
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71480-50430-A0i199410-199608
IVORY,TRIM0#; W(REAR AIR CONDITIONER),IVORY,TRIM0#
main71480-50430-B0i199410-199608
BLUE GRAY,TRIM1#; W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main71480-50430-C0i199410-199608
BLACK,TRIM2#; W(REAR AIR CONDITIONER),BLACK,TRIM2#
main71480-50430-G0i199410-199608
W(REAR AIR CONDITIONER),AGATE,TRIM6#
main71480-50520-B0i199707
BLUE GRAY,TRIM1#
main71480-50540-A0i199707
IVORY,TRIM0#
main71480-50540-B0i199707
BLUE GRAY,TRIM1#
main71480-50540-C0i199707
BLACK,TRIM2#
main71480-50540-G0i199707
AGATE,TRIM6#
main71480-50550-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71480-50550-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71480-50550-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71480-50550-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71480-50560-A0i199707
IVORY,TRIM0#; W(AIR CONDITIONER),IVORY,TRIM0#
main71480-50560-B0i199707
BLUE GRAY,TRIM1#; W(AIR CONDITIONER),BLUE GRAY,TRIM1#
main71480-50560-C0i199707
BLACK,TRIM2#; W(AIR CONDITIONER),BLACK,TRIM2#
main71480-50560-G0i199707
W(AIR CONDITIONER),AGATE,TRIM6#
main71480-50610-A0i199707
IVORY,TRIM0#
main71480-50610-B0i199707
BLUE GRAY,TRIM1#
main71480-50610-C0i199707
BLACK,TRIM2#
main71480-50610-G0i199707
AGATE,TRIM6#
main71480-50620-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71480-50620-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71480-50620-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71480-50710-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM27
main71480-50720-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),IVORY,TRIM03
main71480-50720-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLUE GRAY,TRIM15
main71480-50720-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM27
71611PAD, REAR SEAT CUSHION
main71503-50010i199410-199707
W(FRONT SEAT HEATER & REAR SEAT HEATER)
main71611-50080i199410-199707
SOUTH AFRICA SPEC
main71611-50130i199707
71650SPRING ASSY, REAR SEAT CUSHION
main71650-50050i199410
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-50010i199410-199707
W(FRONT SEAT HEATER & REAR SEAT HEATER)
main71651-50070i199410-199707
SOUTH AFRICA SPEC
main71651-50110i199707
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-50090i199808-200008
SINGAPORE OR THAILAND SPEC; W(REAR POWER SEAT)
main71652-50110i199707-200008
71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)
main71670-50060i199410-199707
main71670-50080i199707
71931ASUPPORT, REAR SEAT HEADREST
main71930-32020-A0×2i199410-199707
W(LOCK),IVORY,TRIM0#
main71930-32020-A1×2i199707-200008
W(LOCK),IVORY,TRIM0#
main71930-32020-B2×2i199410-200008
W(LOCK),BLUE GRAY,TRIM1#
main71930-32020-C0×2i199410-200008
W(LOCK),BLACK,TRIM2#
main71930-32020-G0×2i199410-200008
W(LOCK),AGATE,TRIM6#
main71931-32020-A0×2i199410-199707
W/O(LOCK),IVORY,TRIM0#
main71931-32020-A1×2i199707-200008
W/O(LOCK),IVORY,TRIM0#
main71931-32020-B2×2i199410-200008
W/O(LOCK),BLUE GRAY,TRIM1#
main71931-32020-C0×2i199410-200008
W/O(LOCK),BLACK,TRIM2#
main71931-32020-G0×2i199410-200008
W/O(LOCK),AGATE,TRIM6#
main71990-50040-A0×2i199808-200008
IVORY,TRIM0#
main71990-50040-B0×2i199808-200008
BLUE GRAY,TRIM1#
main71990-50040-C0×2i199808-200008
BLACK,TRIM2#
main71990-50040-G0×2i199808-200008
AGATE,TRIM6#
71940AHEADREST ASSY, REAR SEAT
main71960-50010-A0i199707-200008
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71960-50010-B0i199707-200008
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71960-50010-C0i199707-200008
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71960-50010-G0i199707-200008
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71960-50020-A0i199707-200008
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71960-50020-B0i199707-200008
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71960-50020-C0i199707-200008
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71960-50020-G0i199707-200008
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
main71960-50050-A0i199808-200008
W(REAR POWER SEAT),IVORY,TRIM0#
main71960-50050-B0i199808-200008
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main71960-50050-C0i199808-200008
W(REAR POWER SEAT),BLACK,TRIM2#
main71960-50050-G0i199808-200008
W(REAR POWER SEAT),AGATE,TRIM6#
71940BHEADREST ASSY, REAR SEAT, RH
main71940-50160-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71940-50160-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71940-50160-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71940-50160-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71940-50161-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71940-50161-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71940-50161-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71940-50161-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71940-50220-A0i199707-200008
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71940-50220-B0i199707-200008
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71940-50220-C0i199707-200008
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71940-50220-G0i199707-200008
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71940-50230-A0i199410-199608
IVORY,TRIM0#
main71940-50230-B0i199410-199608
BLUE GRAY,TRIM1#
main71940-50230-C0i199410-199608
BLACK,TRIM2#
main71940-50230-G0i199410-199608
AGATE,TRIM6#
main71940-50231-A0i199608-199707
IVORY,TRIM0#
main71940-50231-B0i199608-199707
BLUE GRAY,TRIM1#
main71940-50231-C0i199608-199707
BLACK,TRIM2#
main71940-50231-G0i199608-199707
AGATE,TRIM6#
main71940-50240-A0i199707-200008
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71940-50240-B0i199707-200008
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71940-50240-C0i199707-200008
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71940-50240-G0i199707-200008
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
main71940-50270-A0i199808-200008
W(REAR POWER SEAT),IVORY,TRIM0#
main71940-50270-B0i199808-200008
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main71940-50270-C0i199808-200008
W(REAR POWER SEAT),BLACK,TRIM2#
main71940-50270-G0i199808-200008
W(REAR POWER SEAT),AGATE,TRIM6#
71950DHEADREST ASSY, REAR SEAT, LH
main71940-50160-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71940-50160-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71940-50160-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71940-50160-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71940-50161-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71940-50161-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71940-50161-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71940-50161-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71940-50220-A0i199707-200008
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71940-50220-B0i199707-200008
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71940-50220-C0i199707-200008
SOUTH AFRICA SPEC,BLACK,TRIM2#
main71940-50220-G0i199707-200008
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71940-50230-A0i199410-199608
IVORY,TRIM0#
main71940-50230-B0i199410-199608
BLUE GRAY,TRIM1#
main71940-50230-C0i199410-199608
BLACK,TRIM2#
main71940-50230-G0i199410-199608
AGATE,TRIM6#
main71940-50231-A0i199608-199707
IVORY,TRIM0#
main71940-50231-B0i199608-199707
BLUE GRAY,TRIM1#
main71940-50231-C0i199608-199707
BLACK,TRIM2#
main71940-50231-G0i199608-199707
AGATE,TRIM6#
main71940-50240-A0i199707-200008
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71940-50240-B0i199707-200008
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71940-50240-C0i199707-200008
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71940-50240-G0i199707-200008
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
main71950-50080-A0i199808-200008
W(REAR POWER SEAT),IVORY,TRIM0#
main71950-50080-B0i199808-200008
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main71950-50080-C0i199808-200008
W(REAR POWER SEAT),BLACK,TRIM2#
main71950-50080-G0i199808-200008
W(REAR POWER SEAT),AGATE,TRIM6#
72693HOOK, REAR SEAT CUSHION LOCK
main72693-14050×4i199410
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
main72805-50010-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main72805-50010-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main72805-50010-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main72805-50010-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main72805-50080-A0i199410-199707
IVORY,TRIM0#
main72805-50080-B0i199410-199707
BLUE GRAY,TRIM1#
main72805-50080-C0i199410-199707
BLACK,TRIM2#
main72805-50080-G0i199410-199707
AGATE,TRIM6#
main72805-50100-A0i199707-200008
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main72805-50100-B0i199707-200008
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main72805-50100-C0i199707-200008
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main72805-50100-G0i199707-200008
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
main72805-50110-A0i199707-200008
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main72805-50110-B0i199707-200008
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main72805-50110-C0i199707-200008
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main72805-50110-G0i199707-200008
SOUTH AFRICA SPEC,AGATE,TRIM6#
main72805-50120-A0i199808-200008
W(REAR POWER SEAT),IVORY,TRIM0#
main72805-50120-B0i199808-200008
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main72805-50120-C0i199808-200008
W(REAR POWER SEAT),BLACK,TRIM2#
main72805-50120-G0i199808-200008
W(REAR POWER SEAT),AGATE,TRIM6#
main72805-50130-B0i199809-200008
BLUE GRAY,TRIM1#
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-50010-A0i199410-199707
IVORY,TRIM0#
main72806-50010-A1i199707
IVORY,TRIM0#
main72806-50010-B0i199410
BLUE GRAY,TRIM1#
main72806-50010-C0i199410
BLACK,TRIM2#
main72806-50010-G0i199410
AGATE,TRIM6#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-50250-A0i199707-200008
IVORY,TRIM0#
main72830-50250-B0i199707-200008
BLUE GRAY,TRIM1#
main72830-50250-C0i199707-200008
BLACK,TRIM2#
main72830-50250-G0i199707-200008
AGATE,TRIM6#
main72830-50260-A0i199410-199707
IVORY,TRIM0#
main72830-50260-B0i199410-199707
BLUE GRAY,TRIM1#
main72830-50260-C0i199410-199707
BLACK,TRIM2#
main72830-50260-G0i199410-199707
AGATE,TRIM6#
main72830-50270-A0i199410-199707
IVORY,TRIM0#
main72830-50270-B0i199410-199707
BLUE GRAY,TRIM1#
main72830-50270-C0i199410-199707
BLACK,TRIM2#
main72830-50270-G0i199410-199707
AGATE,TRIM6#
main72830-50280-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main72830-50280-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main72830-50280-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main72830-50280-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main72830-50310-A0i199410-199707
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main72830-50310-B0i199410-199707
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main72830-50310-C0i199410-199707
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main72830-50310-G0i199410-199707
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main72830-50320-A0i199410-199707
IVORY,TRIM0#; W(REAR AIR CONDITIONER),IVORY,TRIM0#
main72830-50320-B0i199410-199707
BLUE GRAY,TRIM1#; W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main72830-50320-C0i199410-199707
BLACK,TRIM2#; W(REAR AIR CONDITIONER),BLACK,TRIM2#
main72830-50320-G0i199410-199707
W(REAR AIR CONDITIONER),AGATE,TRIM6#
main72830-50330-A0i199707-200008
IVORY,TRIM0#
main72830-50330-B0i199707-200008
BLUE GRAY,TRIM1#
main72830-50330-C0i199707-200008
BLACK,TRIM2#
main72830-50330-G0i199707-200008
AGATE,TRIM6#
main72830-50370-A0i199707-200008
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main72830-50370-B0i199707-200008
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main72830-50370-C0i199707-200008
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main72830-50370-G0i199707-200008
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
main72830-50380-A0i199707-200008
IVORY,TRIM0#; W(AIR CONDITIONER),IVORY,TRIM0#
main72830-50380-B0i199707-200008
BLUE GRAY,TRIM1#; W(AIR CONDITIONER),BLUE GRAY,TRIM1#
main72830-50380-C0i199707-200008
BLACK,TRIM2#; W(AIR CONDITIONER),BLACK,TRIM2#
main72830-50380-G0i199707-200008
W(AIR CONDITIONER),AGATE,TRIM6#
main72830-50430-A0i199707-200008
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main72830-50430-B0i199707-200008
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main72830-50430-C0i199707-200008
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main72830-50430-G0i199707-200008
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main72830-50470-A0i199808-200008
SINGAPORE OR THAILAND SPEC,IVORY,TRIM0#; W(REAR POWER SEAT),IVORY,TRIM0#
main72830-50470-B0i199808-200008
SINGAPORE OR THAILAND SPEC,BLUE GRAY,TRIM1#; W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main72830-50470-C0i199808-200008
SINGAPORE OR THAILAND SPEC,BLACK,TRIM2#; W(REAR POWER SEAT),BLACK,TRIM2#
main72830-50470-G0i199808-200008
SINGAPORE OR THAILAND SPEC,AGATE,TRIM6#
main72830-50530-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM27
main72830-50540-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),IVORY,TRIM03
main72830-50540-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLUE GRAY,TRIM15
main72830-50540-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM27
main72830-50550-A0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.) & W(REAR POWER SEAT),IVORY,TRIM03
main72830-50550-B0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.) & W(REAR POWER SEAT),BLUE GRAY,TRIM15
main72830-50550-C0i200001-200007
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.) & W(REAR POWER SEAT),BLACK,TRIM27
72868COVER, CENTER ARMREST HINGE, RH
main72868-50050-A0i199808-200008
W(REAR POWER SEAT),IVORY,TRIM0#
main72868-50050-B0i199808-200008
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main72868-50050-G0i199808-200008
W(REAR POWER SEAT),AGATE,TRIM6#
main72868-50070-A0i199410-200008
IVORY,TRIM0#
main72868-50070-B0i199410-200008
BLUE GRAY,TRIM1#
main72868-50070-C0i199410-200008
BLACK,TRIM2#
main72868-50070-G0i199410-200008
AGATE,TRIM6#
72869COVER, CENTER ARMREST HINGE, LH
main72869-50040-A0i199808-200008
W(REAR POWER SEAT),IVORY,TRIM0#
main72869-50040-B0i199808-200008
W(REAR POWER SEAT),BLUE GRAY,TRIM1#
main72869-50040-C0i199808-200008
W(REAR POWER SEAT),BLACK,TRIM2#
main72869-50040-G0i199808-200008
W(REAR POWER SEAT),AGATE,TRIM6#
main72869-50050-A0i199410-200008
IVORY,TRIM0#
main72869-50050-B0i199410-200008
BLUE GRAY,TRIM1#
main72869-50050-C0i199410-200008
BLACK,TRIM2#
main72869-50050-G0i199410-200008
AGATE,TRIM6#
72881SUPPORT, REAR SEAT CENTER ARMREST, RH
main72881-50020i199410
RH
main72881-50030i199410
LH
9011908A94
main90119-08A94
9017604015
main90176-04015
9017906129
main90179-06129
9033325001
main90333-25001
9038606035
main90386-06035
9046816019
main90468-16019
9164180822
main91641-80822
9326016025
main93260-16025
9331514012
main93315-14012
9356054012
main93560-54012

31 parts on this diagram · 2 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
