FRONT SEAT & SEAT TRACK

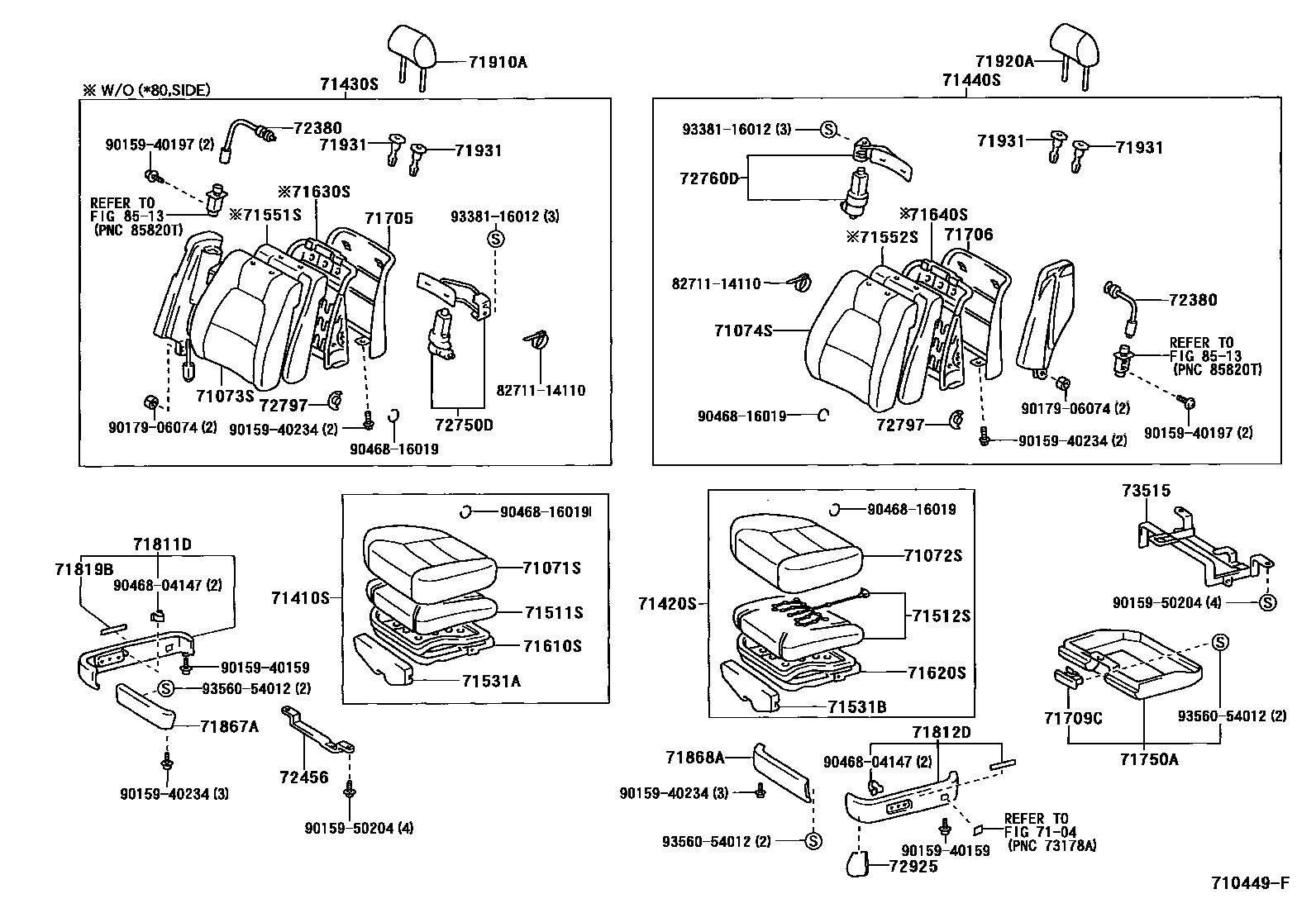

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-50160-A0i199707
W(LEATHER SEAT & MEMORY ADJUST SYSTEM),IVORY,TRIM0#
main71071-50160-B0i199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71071-50160-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71071-50160-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71071-50170-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71071-50170-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71071-50170-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71071-50170-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71071-50171-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71071-50171-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71071-50171-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71071-50171-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71071-50210-A0i199410-199608
IVORY,TRIM0#
main71071-50210-B0i199410-199608
BLUE GRAY,TRIM1#
main71071-50210-C0i199410-199608
BLACK,TRIM2#
main71071-50210-G0i199410-199608
AGATE,TRIM6#
main71071-50211-A0i199608-199707
IVORY,TRIM0#
main71071-50211-B0i199608-199707
BLUE GRAY,TRIM1#
main71071-50211-C0i199608-199707
BLACK,TRIM2#
main71071-50211-G0i199608-199707
AGATE,TRIM6#
main71071-50220-A0i199707
IVORY,TRIM0#
main71071-50220-B0i199707
BLUE GRAY,TRIM1#
main71071-50220-C0i199707
BLACK,TRIM2#
main71071-50220-G0i199707
AGATE,TRIM6#
main71071-50240-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71071-50260-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71071-50260-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71071-50260-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71071-50270-A0i199707
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71071-50270-B0i199707
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71071-50270-C0i199707
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71071-50270-G0i199707
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-50160-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71072-50160-B0i199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71072-50160-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71072-50160-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71072-50170-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71072-50170-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71072-50170-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71072-50170-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71072-50171-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71072-50171-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71072-50171-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71072-50171-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71072-50210-A0i199410-199608
IVORY,TRIM0#
main71072-50210-B0i199410-199608
BLUE GRAY,TRIM1#
main71072-50210-C0i199410-199608
BLACK,TRIM2#
main71072-50210-G0i199410-199608
AGATE,TRIM6#
main71072-50211-A0i199608-199707
IVORY,TRIM0#
main71072-50211-B0i199608-199707
BLUE GRAY,TRIM1#
main71072-50211-C0i199608-199707
BLACK,TRIM2#
main71072-50211-G0i199608-199707
AGATE,TRIM6#
main71072-50220-A0i199707
IVORY,TRIM0#
main71072-50220-B0i199707
BLUE GRAY,TRIM1#
main71072-50220-C0i199707
BLACK,TRIM2#
main71072-50220-G0i199707
AGATE,TRIM6#
main71072-50240-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71072-50260-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71072-50260-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71072-50260-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71072-50270-A0i199707
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71072-50270-B0i199707
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71072-50270-C0i199707
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71072-50270-G0i199707
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-50400-A0i199410-199608
IVORY,TRIM0#
main71073-50400-B0i199410-199608
BLUE GRAY,TRIM1#
main71073-50400-C0i199410-199608
BLACK,TRIM2#
main71073-50400-G0i199410-199608
AGATE,TRIM6#
main71073-50401-A0i199608-199707
IVORY,TRIM0#
main71073-50401-B0i199608-199707
BLUE GRAY,TRIM1#
main71073-50401-C0i199608-199707
BLACK,TRIM2#
main71073-50401-G0i199608-199707
AGATE,TRIM6#
main71073-50410-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71073-50410-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71073-50410-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71073-50410-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71073-50411-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71073-50411-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71073-50411-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71073-50411-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71073-50430-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71073-50430-B0i199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71073-50430-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71073-50430-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71073-50440-A0i199707
IVORY,TRIM0#
main71073-50440-B0i199707
BLUE GRAY,TRIM1#
main71073-50440-C0i199707
BLACK,TRIM2#
main71073-50440-G0i199707
AGATE,TRIM6#
main71073-50520-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71073-50520-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71073-50520-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71073-50530-A0i199707
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71073-50530-B0i199707
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71073-50530-C0i199707
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71073-50530-G0i199707
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
main71073-50540-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-50150-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71074-50150-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71074-50150-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71074-50150-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71074-50151-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71074-50151-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71074-50151-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71074-50151-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71074-50170-A0i199410-199608
IVORY,TRIM0#
main71074-50170-B0i199410-199608
BLUE GRAY,TRIM1#
main71074-50170-C0i199410-199608
BLACK,TRIM2#
main71074-50170-G0i199410-199608
AGATE,TRIM6#
main71074-50171-A0i199608-199707
IVORY,TRIM0#
main71074-50171-B0i199608-199707
BLUE GRAY,TRIM1#
main71074-50171-C0i199608-199707
BLACK,TRIM2#
main71074-50171-G0i199608-199707
AGATE,TRIM6#
main71074-50190-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71074-50190-B0i199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71074-50190-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71074-50190-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71074-50200-A0i199707
IVORY,TRIM0#
main71074-50200-B0i199707
BLUE GRAY,TRIM1#
main71074-50200-C0i199707
BLACK,TRIM2#
main71074-50200-G0i199707
AGATE,TRIM6#
main71074-50290-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71074-50290-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71074-50290-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71074-50290-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71074-50300-A0i199707
IVORY,TRIM0#; W(SEAT HEATER),IVORY,TRIM0#
main71074-50300-B0i199707
BLUE GRAY,TRIM1#; W(SEAT HEATER),BLUE GRAY,TRIM1#
main71074-50300-C0i199707
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71074-50300-G0i199707
AGATE,TRIM6#; W(SEAT HEATER),AGATE,TRIM6#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-50140-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71410-50140-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71410-50140-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71410-50140-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71410-50220-A0i199608-199707
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71410-50220-B0i199608-199707
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71410-50220-C0i199608-199707
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71410-50220-G0i199608-199707
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71410-50350-A0i199608-199707
IVORY,TRIM0#
main71410-50350-B0i199608-199707
BLUE GRAY,TRIM1#
main71410-50350-C0i199608-199707
BLACK,TRIM2#
main71410-50350-G0i199608-199707
AGATE,TRIM6#
main71410-50440-A0i199410-199608
IVORY,TRIM0#
main71410-50440-B0i199410-199608
BLUE GRAY,TRIM1#
main71410-50440-C0i199410-199608
BLACK,TRIM2#
main71410-50440-G0i199410-199608
AGATE,TRIM6#
main71410-50450-A0i199410-199608
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71410-50450-B0i199410-199608
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71410-50450-C0i199410-199608
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71410-50450-G0i199410-199608
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71410-50460-A0i199608-199707
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71410-50460-B0i199608-199707
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71410-50460-C0i199608-199707
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71410-50460-G0i199608-199707
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71410-50470-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71410-50470-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71410-50470-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71410-50470-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71410-50480-A0i199410-199608
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71410-50480-B0i199410-199608
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71410-50480-C0i199410-199608
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71410-50480-G0i199410-199608
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71410-50570-A0i199707
IVORY,TRIM0#
main71410-50570-B0i199707
BLUE GRAY,TRIM1#
main71410-50570-C0i199707
BLACK,TRIM2#
main71410-50590-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71410-50590-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71410-50590-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71410-50590-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71410-50610-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71410-50620-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71410-50620-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71410-50620-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71410-50640-A0i199707
IVORY,TRIM0#
main71410-50640-B0i199707
BLUE GRAY,TRIM1#
main71410-50640-C0i199707
BLACK,TRIM2#
main71410-50640-G0i199707
AGATE,TRIM6#
main71410-50650-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71410-50650-B0i199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71410-50650-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71410-50650-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71410-50660-A0i199707
IVORY,TRIM0#
main71410-50660-B0i199707
BLUE GRAY,TRIM1#
main71410-50660-C0i199707
BLACK,TRIM2#
main71410-50660-G0i199707
AGATE,TRIM6#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-50440-A0i199410-199608
IVORY,TRIM0#
main71420-50440-B0i199410-199608
BLUE GRAY,TRIM1#
main71420-50440-C0i199410-199608
BLACK,TRIM2#
main71420-50440-G0i199410-199608
AGATE,TRIM6#
main71420-50450-A0i199410-199608
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71420-50450-B0i199410-199608
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71420-50450-C0i199410-199608
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71420-50450-G0i199410-199608
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71420-50460-A0i199608-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71420-50460-B0i199608-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71420-50460-C0i199608-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71420-50460-G0i199608-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71420-50470-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71420-50470-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71420-50470-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71420-50470-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71420-50480-A0i199410-199608
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71420-50480-B0i199410-199608
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71420-50480-C0i199410-199608
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71420-50480-G0i199410-199608
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71420-50520-A0i199608-199707
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71420-50520-B0i199608-199707
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71420-50520-C0i199608-199707
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71420-50520-G0i199608-199707
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71420-50530-A0i199608-199707
IVORY,TRIM0#
main71420-50530-B0i199608-199707
BLUE GRAY,TRIM1#
main71420-50530-C0i199608-199707
BLACK,TRIM2#
main71420-50530-G0i199608-199707
AGATE,TRIM6#
main71420-50540-A0i199608-199707
IVORY,TRIM0#; W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71420-50540-B0i199608-199707
BLUE GRAY,TRIM1#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71420-50540-C0i199608-199707
BLACK,TRIM2#; W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71420-50540-G0i199608-199707
AGATE,TRIM6#; W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71420-50600-A0i199707
IVORY,TRIM0#
main71420-50600-B0i199707
BLUE GRAY,TRIM1#
main71420-50600-C0i199707
BLACK,TRIM2#
main71420-50620-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71420-50620-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71420-50620-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71420-50620-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71420-50640-B0i199707
W(SEAT HEATER),BLUE GRAY,TRIM1#
main71420-50650-A0i199707
W(SEAT HEATER),IVORY,TRIM0#
main71420-50650-C0i199707
W(SEAT HEATER),BLACK,TRIM2#
main71420-50650-G0i199707
W(SEAT HEATER),AGATE,TRIM6#
main71420-50670-A0i199707
IVORY,TRIM0#
main71420-50670-B0i199707
BLUE GRAY,TRIM1#
main71420-50670-C0i199707
BLACK,TRIM2#
main71420-50670-G0i199707
AGATE,TRIM6#
main71420-50690-A0i199707
IVORY,TRIM0#
main71420-50690-B0i199707
BLUE GRAY,TRIM1#
main71420-50690-C0i199707
BLACK,TRIM2#
main71420-50690-G0i199707
AGATE,TRIM6#
main71420-50700-A0i199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71420-50700-B0i199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71420-50700-C0i199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71420-50700-G0i199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-50360-A0i199608-199707
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71430-50360-B0i199608-199707
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71430-50360-C0i199608-199707
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71430-50360-G0i199608-199707
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71430-50500-A0i199410-199608
IVORY,TRIM0#
main71430-50500-B0i199410-199608
BLUE GRAY,TRIM1#
main71430-50500-C0i199410-199608
BLACK,TRIM2#
main71430-50520-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71430-50520-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71430-50520-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71430-50520-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71430-50530-A0i199410-199608
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71430-50530-B0i199410-199608
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71430-50530-C0i199410-199608
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71430-50530-G0i199410-199608
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71430-50550-A0i199707-200008
IVORY,TRIM0#
main71430-50550-B0i199707-200008
BLUE GRAY,TRIM1#
main71430-50550-C0i199707-200008
BLACK,TRIM2#
main71430-50550-G0i199707-200008
AGATE,TRIM6#
main71430-50570-A0i199410-199608
IVORY,TRIM0#
main71430-50570-B0i199410-199608
BLUE GRAY,TRIM1#
main71430-50570-C0i199410-199608
BLACK,TRIM2#
main71430-50570-G0i199410-199608
AGATE,TRIM6#
main71430-50580-A0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71430-50580-B0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71430-50580-C0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71430-50580-G0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71430-50600-A0i199410-199608
IVORY,TRIM0#
main71430-50600-B0i199410-199608
BLUE GRAY,TRIM1#
main71430-50600-C0i199410-199608
BLACK,TRIM2#
main71430-50600-G0i199410-199608
AGATE,TRIM6#
main71430-50620-A0i199608-199707
IVORY,TRIM0#
main71430-50620-B0i199608-199707
BLUE GRAY,TRIM1#
main71430-50620-C0i199608-199707
BLACK,TRIM2#
main71430-50640-A0i199707-200008
SOUTH AFRICA SPEC,IVORY,TRIM0#
main71430-50640-B0i199707-200008
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71430-50640-C0i199707-200008
SOUTH AFRICA SPEC,BLACK,TRIM2#
main71430-50640-G0i199707-200008
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71430-50650-A0i199608-199707
IVORY,TRIM0#
main71430-50650-B0i199608-199707
BLUE GRAY,TRIM1#
main71430-50650-C0i199608-199707
BLACK,TRIM2#
main71430-50650-G0i199608-199707
AGATE,TRIM6#
main71430-50660-A0i199608-199707
W(SEAT HEATER(FRONT & REAR)),IVORY,TRIM0#
main71430-50660-B0i199608-199707
W(SEAT HEATER(FRONT & REAR)),BLUE GRAY,TRIM1#
main71430-50660-C0i199608-199707
W(SEAT HEATER(FRONT & REAR)),BLACK,TRIM2#
main71430-50660-G0i199608-199707
W(SEAT HEATER(FRONT & REAR)),AGATE,TRIM6#
main71430-50670-A0i199608-199707
IVORY,TRIM0#
main71430-50670-B0i199608-199707
BLUE GRAY,TRIM1#
main71430-50670-C0i199608-199707
BLACK,TRIM2#
main71430-50670-G0i199608-199707
AGATE,TRIM6#
main71430-50680-A0i199608-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main71430-50680-B0i199608-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71430-50680-C0i199608-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main71430-50680-G0i199608-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71430-50780-B0i199707-200008
BLUE GRAY,TRIM1#
main71430-50790-A0i199707-200008
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71430-50790-C0i199707-200008
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71430-50790-G0i199707-200008
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71430-50820-A0i199707-200008
IVORY,TRIM0#
main71430-50820-B0i199707-200008
BLUE GRAY,TRIM1#
main71430-50820-C0i199707-200008
BLACK,TRIM2#
main71430-50840-A0i199707-200008
W(SEAT HEATER(FRONT & REAR)),IVORY,TRIM0#
main71430-50840-B0i199707-200008
W(SEAT HEATER(FRONT & REAR)),BLUE GRAY,TRIM1#
main71430-50840-C0i199707-200008
W(SEAT HEATER(FRONT & REAR)),BLACK,TRIM2#
main71430-50840-G0i199707-200008
W(SEAT HEATER(FRONT & REAR)),AGATE,TRIM6#
main71430-50850-A0i199707-200008
IVORY,TRIM0#
main71430-50850-B0i199707-200008
BLUE GRAY,TRIM1#
main71430-50850-C0i199707-200008
BLACK,TRIM2#
main71430-50850-G0i199707-200008
AGATE,TRIM6#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-50350-A0i199707
IVORY,TRIM0#
main71440-50350-B0i199707
BLUE GRAY,TRIM1#
main71440-50350-C0i199707
BLACK,TRIM2#
main71440-50350-G0i199707
AGATE,TRIM6#
main71440-50440-A0i199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main71440-50440-B0i199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71440-50440-C0i199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main71440-50440-G0i199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71440-50520-A0i199410-199608
IVORY,TRIM0#
main71440-50520-B0i199410-199608
BLUE GRAY,TRIM1#
main71440-50520-C0i199410-199608
BLACK,TRIM2#
main71440-50540-A0i199410-199608
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71440-50540-B0i199410-199608
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71440-50540-C0i199410-199608
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71440-50540-G0i199410-199608
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71440-50550-A0i199410-199608
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71440-50550-B0i199410-199608
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71440-50550-C0i199410-199608
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71440-50550-G0i199410-199608
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71440-50600-A0i199608-199707
IVORY,TRIM0#
main71440-50600-B0i199608-199707
BLUE GRAY,TRIM1#
main71440-50600-C0i199608-199707
BLACK,TRIM2#
main71440-50640-A0i199410-199608
IVORY,TRIM0#
main71440-50640-B0i199410-199608
BLUE GRAY,TRIM1#
main71440-50640-C0i199410-199608
BLACK,TRIM2#
main71440-50640-G0i199410-199608
AGATE,TRIM6#
main71440-50650-A0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),IVORY,TRIM0#
main71440-50650-B0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),BLUE GRAY,TRIM1#
main71440-50650-C0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),BLACK,TRIM2#
main71440-50650-G0i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER),AGATE,TRIM6#
main71440-50660-A0i199410-199608
IVORY,TRIM0#
main71440-50660-B0i199410-199608
BLUE GRAY,TRIM1#
main71440-50660-C0i199410-199608
BLACK,TRIM2#
main71440-50660-G0i199410-199608
AGATE,TRIM6#
main71440-50690-A0i199608-199707
IVORY,TRIM0#
main71440-50690-B0i199608-199707
BLUE GRAY,TRIM1#
main71440-50690-C0i199608-199707
BLACK,TRIM2#
main71440-50690-G0i199608-199707
AGATE,TRIM6#
main71440-50700-A0i199608-199707
W(SEAT HEATER(FRONT & REAR)),IVORY,TRIM0#
main71440-50700-B0i199608-199707
W(SEAT HEATER(FRONT & REAR)),BLUE GRAY,TRIM1#
main71440-50700-C0i199608-199707
W(SEAT HEATER(FRONT & REAR)),BLACK,TRIM2#
main71440-50700-G0i199608-199707
W(SEAT HEATER(FRONT & REAR)),AGATE,TRIM6#
main71440-50710-A0i199608-199707
IVORY,TRIM0#
main71440-50710-B0i199608-199707
BLUE GRAY,TRIM1#
main71440-50710-C0i199608-199707
BLACK,TRIM2#
main71440-50710-G0i199608-199707
AGATE,TRIM6#
main71440-50720-A0i199608-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main71440-50720-B0i199608-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71440-50720-C0i199608-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main71440-50720-G0i199608-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main71440-50730-A0i199608-199707
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71440-50730-B0i199608-199707
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71440-50730-C0i199608-199707
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71440-50730-G0i199608-199707
W(FRONT SEAT HEATER),AGATE,TRIM6#
main71440-50880-A0i199707
IVORY,TRIM0#
main71440-50880-B0i199707
BLUE GRAY,TRIM1#
main71440-50880-C0i199707
BLACK,TRIM2#
main71440-5A010-A0i199707
W(SEAT HEATER(FRONT & REAR)),IVORY,TRIM0#
main71440-5A010-B0i199707
W(SEAT HEATER(FRONT & REAR)),BLUE GRAY,TRIM1#
main71440-5A010-C0i199707
W(SEAT HEATER(FRONT & REAR)),BLACK,TRIM2#
main71440-5A010-G0i199707
W(SEAT HEATER(FRONT & REAR)),AGATE,TRIM6#
main71440-5A020-A0i199707
IVORY,TRIM0#
main71440-5A020-B0i199707
BLUE GRAY,TRIM1#
main71440-5A020-C0i199707
BLACK,TRIM2#
main71440-5A020-G0i199707
AGATE,TRIM6#
main71440-5A070-A0i199707
W(FRONT SEAT HEATER),IVORY,TRIM0#
main71440-5A070-B0i199707
W(FRONT SEAT HEATER),BLUE GRAY,TRIM1#
main71440-5A070-C0i199707
W(FRONT SEAT HEATER),BLACK,TRIM2#
main71440-5A070-G0i199707
W(FRONT SEAT HEATER),AGATE,TRIM6#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-50060i199410-199707
SOUTH AFRICA SPEC
main71511-50080i199707
main71511-50100i199707
main71515-50050i199410-199707
W(FRONT SEAT HEATER & REAR SEAT HEATER); W(FRONT SEAT HEATER)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-50060i199410-199707
SOUTH AFRICA SPEC
main71512-50080i199707
main71512-50100i199707
main71516-50050i199410-199707
W(FRONT SEAT HEATER & REAR SEAT HEATER); W(FRONT SEAT HEATER)
71531APAD, FRONT SEAT CUSHION CORNER, A RH
main71531-50020i199707
71531BPAD, FRONT SEAT CUSHION CORNER, A LH
main71531-50020i199707
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-50100i199410-199608
SOUTH AFRICA SPEC
main71555-50060i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER); W(FRONT SEAT HEATER)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-50100i199410-199608
SOUTH AFRICA SPEC
main71555-50060i199410-199608
W(FRONT SEAT HEATER & REAR SEAT HEATER); W(FRONT SEAT HEATER)
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-50090i199410-199707
main71610-50110i199707
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-50090i199410-199707
main71620-50110i199707
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-50140i199410-199608
main71630-50150i199410-199608
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-50170i199410-199608
main71640-50180i199410-199608
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-50150-A0i199410-199608
IVORY,TRIM0#
main71705-50150-B0i199410-199608
BLUE GRAY,TRIM1#
main71705-50150-C0i199410-199608
BLACK,TRIM2#
main71705-50150-G0i199410-199608
AGATE,TRIM6#
main71705-50151-A0i199608-199707
IVORY,TRIM0#
main71705-50151-A1i199707-200008
IVORY,TRIM0#
main71705-50151-B0i199608-200008
BLUE GRAY,TRIM1#
main71705-50151-C0i199608-200008
BLACK,TRIM2#
main71705-50151-G0i199608-200008
AGATE,TRIM6#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-50150-A0i199410-199608
IVORY,TRIM0#
main71705-50150-B0i199410-199608
BLUE GRAY,TRIM1#
main71705-50150-C0i199410-199608
BLACK,TRIM2#
main71705-50150-G0i199410-199608
AGATE,TRIM6#
main71705-50151-A0i199608-199707
IVORY,TRIM0#
main71705-50151-A1i199707-200008
IVORY,TRIM0#
main71705-50151-B0i199608-200008
BLUE GRAY,TRIM1#
main71705-50151-C0i199608-200008
BLACK,TRIM2#
main71705-50151-G0i199608-200008
AGATE,TRIM6#
71709CLOCK SUB-ASSY, SEAT UNDER TRAY
main71709-50020i199410
71750ATRAY ASSY, FRONT SEAT UNDER
main71750-50030i199410
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-50030-A0i199410-199608
IVORY,TRIM0#
main71811-50030-B0i199410-199608
BLUE GRAY,TRIM1#
main71811-50030-C0i199410-199608
BLACK,TRIM2#
main71811-50030-G0i199410-199608
AGATE,TRIM6#
main71811-50060-A0i199608-199707
IVORY,TRIM0#
main71811-50060-A1i199707
IVORY,TRIM0#
main71811-50060-B0i199608
BLUE GRAY,TRIM1#
main71811-50060-C0i199608
BLACK,TRIM2#
main71811-50060-G0i199608
AGATE,TRIM6#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-50030-A0i199410-199608
IVORY,TRIM0#
main71812-50030-B0i199410-199608
BLUE GRAY,TRIM1#
main71812-50030-C0i199410-199608
BLACK,TRIM2#
main71812-50030-G0i199410-199608
AGATE,TRIM6#
main71812-50050-A0i199608-199707
IVORY,TRIM0#
main71812-50050-A1i199707
IVORY,TRIM0#
main71812-50050-B0i199608
BLUE GRAY,TRIM1#
main71812-50050-C0i199608
BLACK,TRIM2#
main71812-50050-G0i199608
AGATE,TRIM6#
71819BLABEL, SIDE AIRBAG NAME
main71819-50010-A0×2i199608-199707
IVORY,TRIM0#
main71819-50010-A1×2i199707
IVORY,TRIM0#
main71819-50010-B0×2i199608
BLUE GRAY,TRIM1#
main71819-50010-C0×2i199608
BLACK,TRIM2#
main71819-50010-G0×2i199608
AGATE,TRIM6#
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-50010-A0i199410-199707
IVORY,TRIM0#
main71867-50010-A1i199707
IVORY,TRIM0#
main71867-50010-B0i199410
BLUE GRAY,TRIM1#
main71867-50010-C0i199410
BLACK,TRIM2#
main71867-50010-G0i199410
AGATE,TRIM6#
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
main71868-50010-A0i199410-199707
IVORY,TRIM0#
main71868-50010-A1i199707
IVORY,TRIM0#
main71868-50010-B0i199410
BLUE GRAY,TRIM1#
main71868-50010-C0i199410
BLACK,TRIM2#
main71868-50010-G0i199410
AGATE,TRIM6#
71910AHEADREST ASSY, FRONT SEAT
main71910-50220-A0i199707
SOUTH AFRICA SPEC,IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#
main71910-50220-C0i199707
SOUTH AFRICA SPEC,BLACK,TRIM2#; W(LEATHER SEAT),BLACK,TRIM2#
main71910-50220-G0i199707
SOUTH AFRICA SPEC,AGATE,TRIM6#; W(LEATHER SEAT),AGATE,TRIM6#
main71910-50260-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71910-50260-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71910-50260-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71910-50260-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71910-50280-A0i199410-199707
IVORY,TRIM0#
main71910-50280-B0i199410-199707
BLUE GRAY,TRIM1#
main71910-50280-C0i199410-199707
BLACK,TRIM2#
main71910-50280-G0i199410-199707
AGATE,TRIM6#
main71910-50300-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main71910-50300-B0i199707
W(LEATHER SEAT),BLUE GRAY,TRIM1#
main71910-50300-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main71910-50300-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
main71910-50350-B0i199707
BLUE GRAY,TRIM1#
71920AHEADREST ASSY, FRONT SEAT, LH
main71910-50220-A0i199707
SOUTH AFRICA SPEC,IVORY,TRIM0#; W(LEATHER SEAT),IVORY,TRIM0#
main71910-50220-C0i199707
SOUTH AFRICA SPEC,BLACK,TRIM2#; W(LEATHER SEAT),BLACK,TRIM2#
main71910-50220-G0i199707
SOUTH AFRICA SPEC,AGATE,TRIM6#; W(LEATHER SEAT),AGATE,TRIM6#
main71910-50260-A0i199410-199707
IVORY,TRIM0#; SOUTH AFRICA SPEC,IVORY,TRIM0#
main71910-50260-B0i199410-199707
BLUE GRAY,TRIM1#; SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main71910-50260-C0i199410-199707
BLACK,TRIM2#; SOUTH AFRICA SPEC,BLACK,TRIM2#
main71910-50260-G0i199410-199707
AGATE,TRIM6#; SOUTH AFRICA SPEC,AGATE,TRIM6#
main71910-50280-A0i199410-199707
IVORY,TRIM0#
main71910-50280-B0i199410-199707
BLUE GRAY,TRIM1#
main71910-50280-C0i199410-199707
BLACK,TRIM2#
main71910-50280-G0i199410-199707
AGATE,TRIM6#
main71910-50300-A0i199707
W(LEATHER SEAT),IVORY,TRIM0#
main71910-50300-B0i199707
W(LEATHER SEAT),BLUE GRAY,TRIM1#
main71910-50300-C0i199707
W(LEATHER SEAT),BLACK,TRIM2#
main71910-50300-G0i199707
W(LEATHER SEAT),AGATE,TRIM6#
main71910-50350-B0i199707
BLUE GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
main71931-50040-A0×4i199410-199707
W/O(LOCK),IVORY,TRIM0#
main71931-50040-A1×4i199707
W/O(LOCK),IVORY,TRIM0#
main71931-50040-B0×4i199410
W/O(LOCK),BLUE GRAY,TRIM1#
main71931-50040-C0×4i199410
W/O(LOCK),BLACK,TRIM2#
main71931-50040-G0×4i199410
W/O(LOCK),AGATE,TRIM6#
72380CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
main72380-50040×2i199410
72456BRACKET, SEAT FRAME SET, NO.2
main72456-50010i199410
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-50030i199410-199608
main72750-50031i199608
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-50030i199410-199608
main72760-50031i199608
72797SPACER, LUMBAR SUPPORT
main72797-50010×2i199410-199707
SOUTH AFRICA SPEC; W(SEAT HEATER)
72925COVER, FRONT SEAT CUSHION
main72925-50010i199707
73515RAIL, FRONT SEAT UNDER TRAY, NO.1
main73507-50010i199410
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9015940159
main90159-40159
9015940197
main90159-40197
9015940234
main90159-40234
9015950204
main90159-50204
9017906074
main90179-06074
9046804147
main90468-04147
9046816019
main90468-16019
9338116012
main93381-16012
9356054012
main93560-54012

49 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
