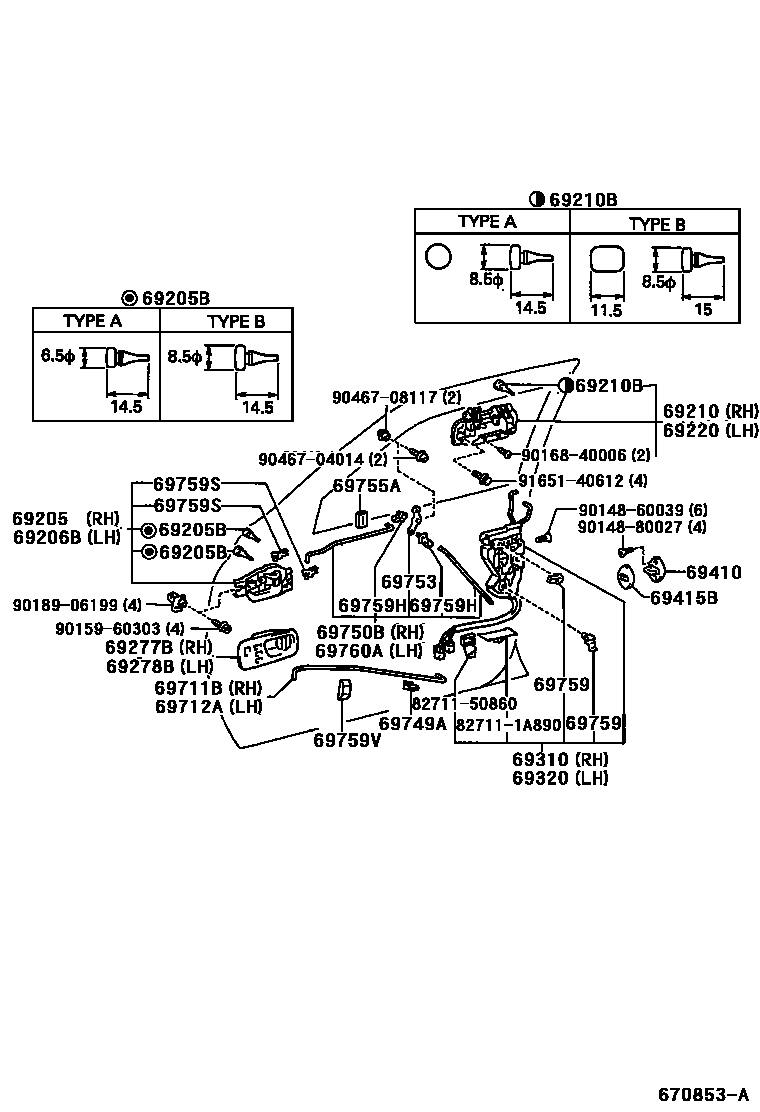

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-50020-B0iUCF20199410

DK.BLUE GRAY,TRIM1#

sub69205-50020

main69205-50020-C0iUCF20199410

BLACK,TRIM2#

sub69205-50020

main69205-50020-E0iUCF20199410-199707

OAK,TRIM0#

sub69205-50020

main69205-50020-E1iUCF20199707

SANDAL WOOD,TRIM0#

sub69205-50020

main69205-50020-G0iUCF20..ARL,EUR,GEN199410

DK.AGATE,TRIM6#

sub69205-50020

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iUCF20199410

TYPE A:REFER TO ILLUSTRATION

main90541-04018iUCF20199410

TYPE B:REFER TO ILLUSTRATION

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-50020-B0iUCF20199410

DK.BLUE GRAY,TRIM1#

sub69206-50020

main69206-50020-C0iUCF20199410

BLACK,TRIM2#

sub69206-50020

main69206-50020-E0iUCF20199410-199707

OAK,TRIM0#

sub69206-50020

main69206-50020-E1iUCF20199707

SANDAL WOOD,TRIM0#

sub69206-50020

main69206-50020-G0iUCF20..ARL,EUR,GEN199410

DK.AGATE,TRIM6#

sub69206-50020

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-50010-22iUCF20..EUR,GEN,V199410-199608

BLACK,202

sub69210-50010

main69210-50010-A0iUCF20199410-199608

WHITE PEARL MICA,051

sub69210-50010

main69210-50010-B0iUCF20199410-199608

SILVER ME,199

sub69210-50010

main69210-50010-E1iUCF20199410-199608

BEIGE ME.,4M9

sub69210-50010

main69210-50010-E2iUCF20199410-199608

GRAYISH BROWN ME.,4N1

sub69210-50010

main69210-50010-G1iUCF20199410-199608

GRAYISH GREEN M.M.,6N0

sub69210-50010

main69210-50010-G2iUCF20199410-199608

DK.GREEN MC.P.I.O.,6N9

sub69210-50010

main69210-50010-G3iUCF20199508-199608

DK.GREEN M.M.,6P3

sub69210-50010

main69210-50010-J1iUCF20199410-199608

DK BLUE MC.,8L1

sub69210-50010

main69210-50010-K1iUCF20..ARL199410-199608

DK.ROSE MC.,929

sub69210-50010

main69210-50011-22iUCF20..EUR,GEN,V199608-199707

BLACK,202

main69210-50011-A0iUCF20199608-199707

SU.WHITE PM,051

main69210-50011-B0iUCF20199608-199707

SILVER ME,199

main69210-50011-E1iUCF20199608-199707

BEIGE ME.,4M9

main69210-50011-E2iUCF20199608-199707

GRAYISH BROWN ME.,4N1

main69210-50011-G1iUCF20199608-199707

GRAYISH GREEN M.M.,6N0

main69210-50011-G2iUCF20199608-199707

DK.GREEN MC.P.I.O.,6N9

main69210-50011-G3iUCF20199608-199707

DK.GREEN M.M.,6P3

main69210-50011-G4iUCF20199608-199707

LT.GREEN ME.OP.,6P7

main69210-50011-J1iUCF20199608-199707

DK.BLUE MC.,8L1

main69210-50030-A0iUCF20199707-200001

SU.WHITE PM,051

main69210-50030-A1iUCF20200001

WHITE PEARL CS,062

main69210-50030-B0iUCF20199707-200001

SILVER ME,199

main69210-50030-B1iUCF20200001

SILVER ME.,1C0

main69210-50030-C0iUCF20199707

BLACK,202

main69210-50030-D0iUCF20199707

ROSE RED MC.,3M9

main69210-50030-E0iUCF20199707-199808

BEIGE ME.,4M9

main69210-50030-E1iUCF20..EUR,GEN,V199707

COPPER BROWN M.M.MS.,4P1

main69210-50030-E2iUCF20199808

BEIGE ME.,4P7

main69210-50030-G1iUCF20199707-199908

LT.GREEN ME.OP.,6P7

main69210-50030-G2iUCF20199707

DK. GREEN MC.,6Q7

main69210-50030-J0iUCF20199707

DK.BLUE MC.,8L4

main69210-50030-K0iUCF20199707-199908

AMETHYST ME.,941

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iUCF20199410

TYPE A:REFER TO ILLUSTRATION

main90541-04022iUCF20199410

TYPE B:REFER TO ILLUSTRATION

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-50020-22iUCF20..EUR,GEN,V199410-199608

BLACK,202

sub69220-50020

main69220-50020-A0iUCF20199410-199608

WHITE PEARL MICA,051

sub69220-50020

main69220-50020-B0iUCF20199410-199608

SILVER ME,199

sub69220-50020

main69220-50020-E1iUCF20199410-199608

BEIGE ME,4M9

sub69220-50020

main69220-50020-E2iUCF20199410-199608

GRAYISH BROWN ME.,4N1

sub69220-50020

main69220-50020-G1iUCF20199410-199608

GRAYISH GREEN M.M.,6N0

sub69220-50020

main69220-50020-G2iUCF20199410-199608

DK.GREEN MC.P.I.O.,6N9

sub69220-50020

main69220-50020-G3iUCF20199508-199608

DK.GREEN M.M.,6P3

sub69220-50020

main69220-50020-J1iUCF20199410-199608

DK BLUE MC.,8L1

sub69220-50020

main69220-50020-K1iUCF20..ARL199410-199608

DK.ROSE MC.,929

sub69220-50020

main69220-50021-22iUCF20..EUR,GEN,V199608-199707

BLACK,202

main69220-50021-A0iUCF20199608-199707

SU.WHITE PM,051

main69220-50021-B0iUCF20199608-199707

SILVER ME,199

main69220-50021-E1iUCF20199608-199707

BEIGE ME.,4M9

main69220-50021-E2iUCF20199608-199707

GRAYISH BROWN ME.,4N1

main69220-50021-G1iUCF20199608-199707

GRAYISH GREEN M.M.,6N0

main69220-50021-G2iUCF20199608-199707

DK.GREEN MC.P.I.O.,6N9

main69220-50021-G3iUCF20199608-199707

DK.GREEN M.M.,6P3

main69220-50021-G4iUCF20199608-199707

LT.GREEN ME.OP.,6P7

main69220-50021-J1iUCF20199608-199707

DK.BLUE MC.,8L1

main69220-50030-A0iUCF20199707-200001

SU.WHITE PM,051

sub69220-50030

main69220-50030-A1iUCF20200001

WHITE PEARL CS,062

sub69220-50030

main69220-50030-B0iUCF20199707-200001

SILVER ME,199

sub69220-50030

main69220-50030-B1iUCF20200001

SILVER ME.,1C0

sub69220-50030

main69220-50030-C0iUCF20199707

BLACK,202

sub69220-50030

main69220-50030-D0iUCF20199707

ROSE RED MC.,3M9

sub69220-50030

main69220-50030-E0iUCF20199707-199808

BEIGE ME.,4M9

sub69220-50030

main69220-50030-E1iUCF20..EUR,GEN,V199707

COPPER BROWN M.M.MS.,4P1

sub69220-50030

main69220-50030-E2iUCF20199808

BEIGE ME.,4P7

sub69220-50030

main69220-50030-G1iUCF20199707-199908

LT.GREEN ME.OP.,6P7

sub69220-50030

main69220-50030-G2iUCF20199707

DK. GREEN MC.,6Q7

sub69220-50030

main69220-50030-J0iUCF20199707

DK.BLUE MC.,8L4

sub69220-50030

main69220-50030-K0iUCF20199707-199908

AMETHYST ME.,941

sub69220-50030

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-50050-B0iUCF20..RHD199410

DK.BLUE GRAY,TRIM1#

sub69277-50050

main69277-50050-C0iUCF20..RHD199410

BLACK,TRIM2#

sub69277-50050

main69277-50050-E0iUCF20..RHD199410-199707

OAK,TRIM0#

sub69277-50050

main69277-50050-E1iUCF20..RHD199707

SANDAL WOOD,TRIM0#

sub69277-50050

main69277-50050-G0iUCF20..RHD199410

DK.AGATE,TRIM6#

sub69277-50050

main69277-50060-B0iUCF20..LHD199410

DK.BLUE GRAY,TRIM1#

sub69277-50060

main69277-50060-C0iUCF20..LHD199410

BLACK,TRIM2#

sub69277-50060

main69277-50060-E0iUCF20..LHD199410-199707

OAK,TRIM0#

sub69277-50060

main69277-50060-E1iUCF20..LHD199707

SANDAL WOOD,TRIM0#

sub69277-50060

main69277-50060-G0iUCF20..LHD..EUR199410

DK.AGATE,TRIM6#

sub69277-50060

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-50050-B0iUCF20..LHD199410

DK.BLUE GRAY,TRIM1#

sub69278-50050

main69278-50050-C0iUCF20..LHD199410

BLACK,TRIM2#

sub69278-50050

main69278-50050-E0iUCF20..LHD199410-199707

OAK,TRIM0#

sub69278-50050

main69278-50050-E1iUCF20..LHD199707

SANDAL WOOD,TRIM0#

sub69278-50050

main69278-50050-G0iUCF20..LHD..EUR199410

DK.AGATE,TRIM6#

sub69278-50050

main69278-50060-B0iUCF20..RHD199410

DK.BLUE GRAY,TRIM1#

sub69278-50060

main69278-50060-C0iUCF20..RHD199410

BLACK,TRIM2#

sub69278-50060

main69278-50060-E0iUCF20..RHD199410-199707

OAK,TRIM0#

sub69278-50060

main69278-50060-E1iUCF20..RHD199707

SANDAL WOOD,TRIM0#

sub69278-50060

main69278-50060-G0iUCF20..RHD199410

DK.AGATE,TRIM6#

sub69278-50060

69310LOCK ASSY, FRONT DOOR, RH

main69030-50130iUCF20..RHD199410-199707

main69030-50140iUCF20..LHD199410-199707

main69030-50160iUCF20..RHD199707

main69030-50170iUCF20..LHD199707

69320LOCK ASSY, FRONT DOOR, LH

main69040-50130iUCF20..RHD199410-199707

main69040-50140iUCF20..LHD199410-199707

main69040-50160iUCF20..RHD199707

main69040-50170iUCF20..LHD199707

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50010iUCF20199410

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-50010iUCF20199410

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-50020iUCF20199410

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-50020iUCF20199410

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50030iUCF20199410

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-50020iUCF20199410

69753BELLCRANK, DOOR LOCK CONTROL, RH

main69753-20070iUCF20199410

69755ASILENCER, FRONT DOOR LOCK LINK

main69759-50100iUCF20199410

sub90950-06117

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iUCF20199410

GREEN

main69759-24060iUCF20199410

GRAY

main69759-50040iUCF20199410

NATURAL

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20020iUCF20199410

NATURAL

main69759-20030iUCF20199410

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iUCF20199410

GRAY

main69759-20070iUCF20199410

GREEN

main69759-24010iUCF20199410

NATURAL

main69759-24020iUCF20199410

BLUE

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-50070iUCF20199410

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-50020iUCF20199410

827111A890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A890

8271150860WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50860

9014860039

main90148-60039

9014880027

main90148-80027

9015960303

main90159-60303

9016840006

main90168-40006

9018906199

main90189-06199

9046704014

main90467-04014

9046708117

main90467-08117

9165140612

main91651-40612

33 parts on this diagram · 1 diagram in section
