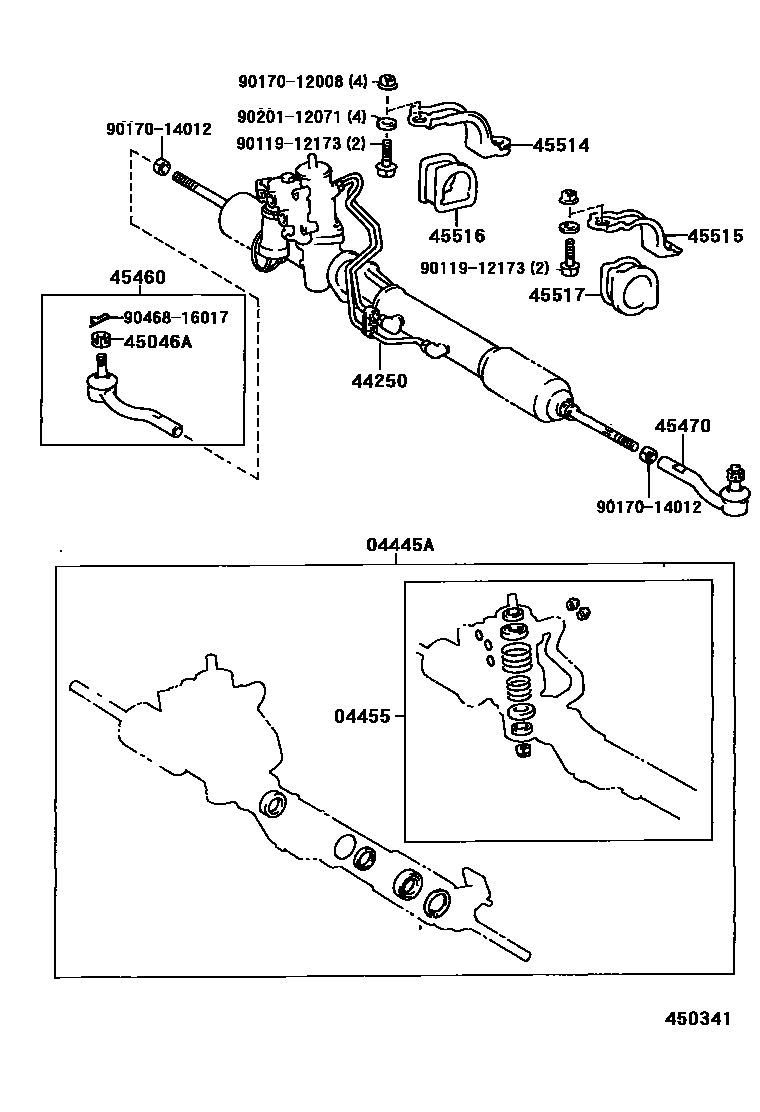

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-50020iUCF20199410-199707

main04445-50030iUCF20199707

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-50020iUCF20199410-199707

main04455-50030iUCF20199707

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-50100iUCF20..LHD199410-199707

main44250-50110iUCF20..RHD199410-199707

main44250-50140iUCF20..RHD199707

main44250-50160iUCF20..LHD199707

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iUCF20199410

45460ROD ASSY, TIE, RH

main45460-49025iUCF20199704

main45460-59025iUCF20199410-199704

sub45460-49025

45470ROD ASSY, TIE, LH

main45470-49015iUCF20199704

main45470-59025iUCF20199410-199704

sub45470-49015

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-50030iUCF20199410-199707

main45514-50040iUCF20199707

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-50010iUCF20199410-199707

main45515-50020iUCF20199707

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-50020iUCF20199410

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-50020iUCF20199410

9011912173

main90119-12173

9017012008

main90170-12008

9017014012

main90170-14012

9020112071

main90201-12071

9046816017

main90468-16017

15 parts on this diagram · 4 diagrams in section
