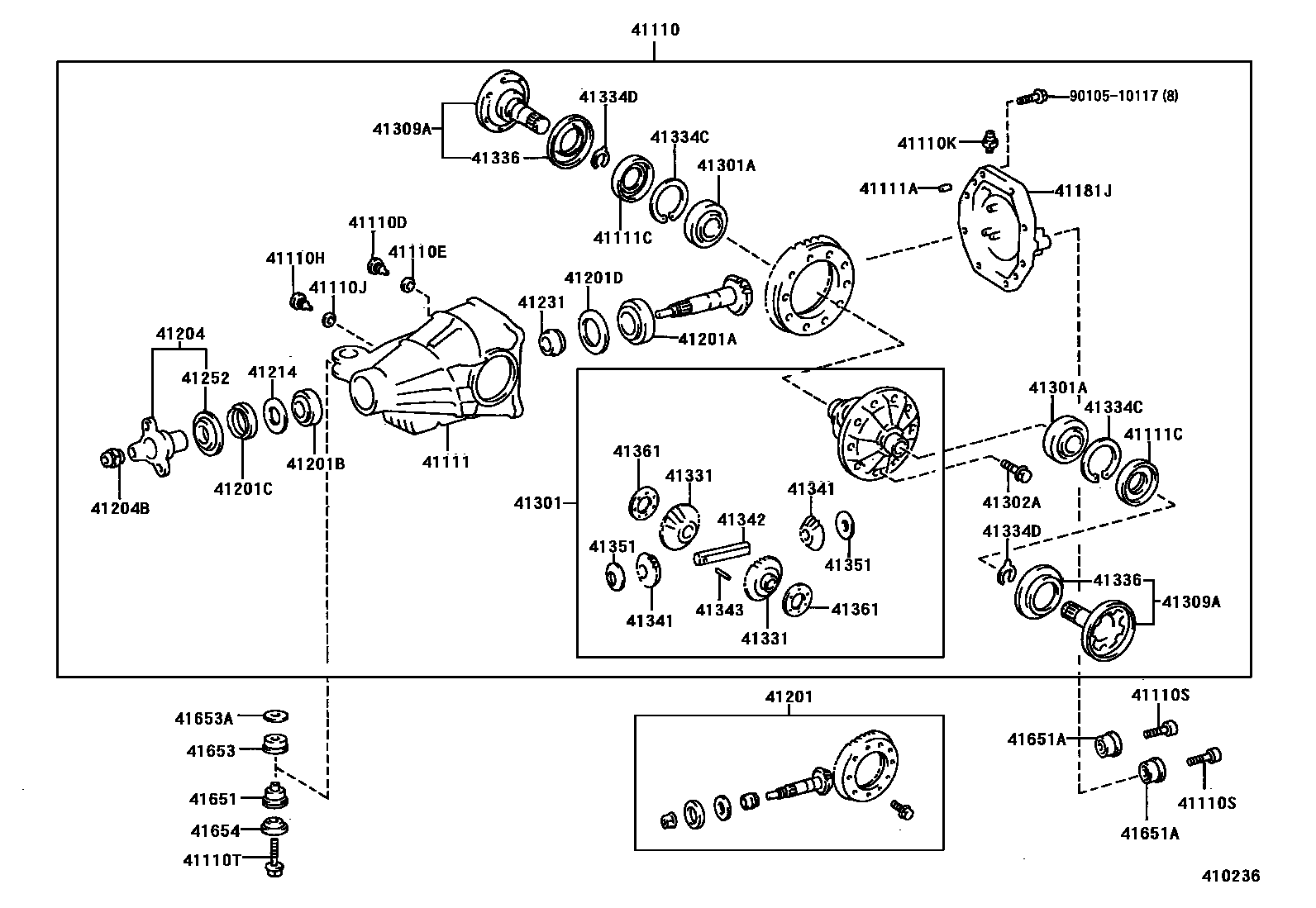

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)
sub90110-14007
41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)
41111CARRIER, REAR DIFFERENTIAL
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41111CSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41181JCOVER, REAR DIFFERENTIAL CARRIER
sub41108-50020
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
sub41301-50H00
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
T=2.30,MARK 30
T=2.32,MARK 32
T=2.34,MARK 34
T=2.36,MARK 36
T=2.38,MARK 38
T=2.40,MARK 40
T=2.42,MARK 42
T=2.44,MARK 44
T=2.46,MARK 46
T=2.48,MARK 48
T=2.50,MARK 50
T=2.52,MARK 52
T=2.54,MARK 54
T=2.56,MARK 56
T=2.58,MARK 58
T=2.60,MARK 60
T=2.62,MARK 62
T=2.64,MARK 64
T=2.66,MARK 66
T=2.68,MARK 68
T=2.70,MARK 70
T=2.72,MARK 72
T=2.74,MARK 74
T=2.76,MARK 76
T=2.78,MARK 78
T=2.80,MARK 80
T=2.82,MARK 82
T=2.84,MARK 84
T=2.86,MARK 86
T=3.66,MARK 66
T=3.68,MARK 68
T=3.70,MARK 70
T=3.72,MARK 72
T=3.74,MARK 74
T=3.76,MARK 76
T=3.78,MARK 78
T=3.80,MARK 80
T=3.82,MARK 82
T=3.84,MARK 84
T=3.86,MARK 86
T=3.88,MARK 88
T=3.90,MARK 90
T=3.92,MARK 92
T=3.94,MARK 94
T=3.96,MARK 96
T=3.98,MARK 98
T=4.00,MARK 00
T=4.02,MARK 02
T=4.04,MARK 04
T=4.06,MARK 06
T=4.08,MARK 08
T=4.10,MARK 10
T=4.12,MARK 12
T=4.14,MARK 14
T=4.16,MARK 16
T=4.18,MARK 18
T=4.20,MARK 20
T=4.22,MARK 22
T=4.24,MARK 24
T=4.26,MARK 26
T=4.28,MARK 28
T=4.30,MARK 30
T=4.32,MARK 32
T=4.34,MARK 34
T=4.36,MARK 36
T=4.38,MARK 38
T=4.40,MARK 40
T=4.42,MARK 42
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
T=1.50
T=1.55
T=1.65
T=1.75
T=1.85
T=1.90
T=1.7
T=1.8
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
H=17.5
H=19.0
H=19.8
41653AWASHER, PLATE (FOR REAR DIFFERENTIAL MOUNT STOPPER UPPER)
T=1.0
T=2.0
T=1.6
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
9010510117
main90105-10117
41 parts on this diagram · 2 diagrams in section
