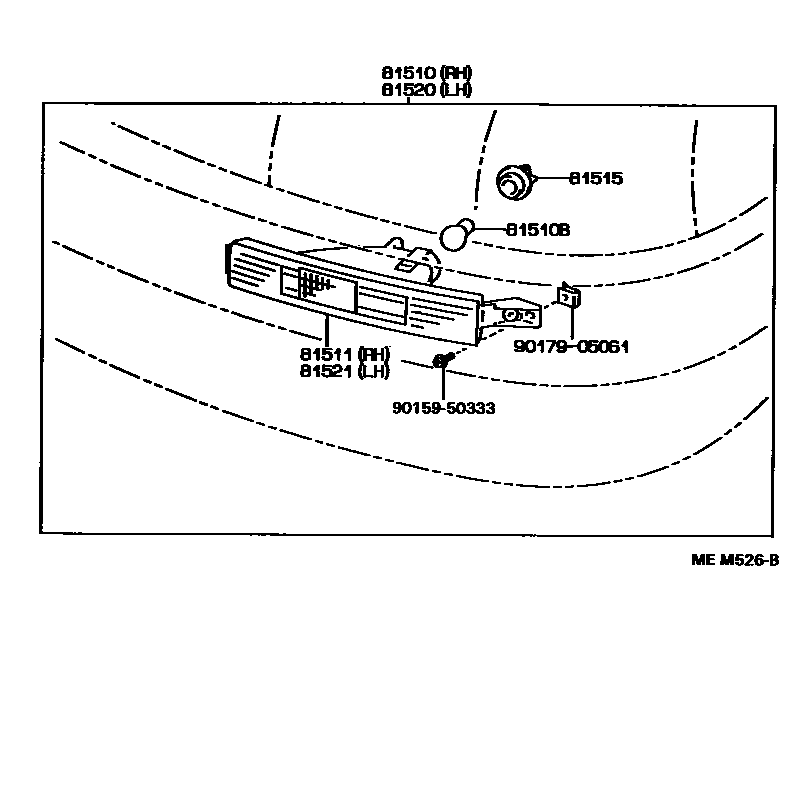

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-59025iUCF10198912-199207

main81510-59026iUCF10199207-199410

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iUCF10198912-199410

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-50020iUCF10198912-199207

main81511-50021iUCF10199207-199410

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81615-87705×2iUCF10198912-199410

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-59025iUCF10198912-199207

main81520-59026iUCF10199207-199410

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-50020iUCF10198912-199207

main81521-50021iUCF10199207-199410

9015950333

main90159-50333

9017905061

main90179-05061

8 parts on this diagram · 1 diagram in section
