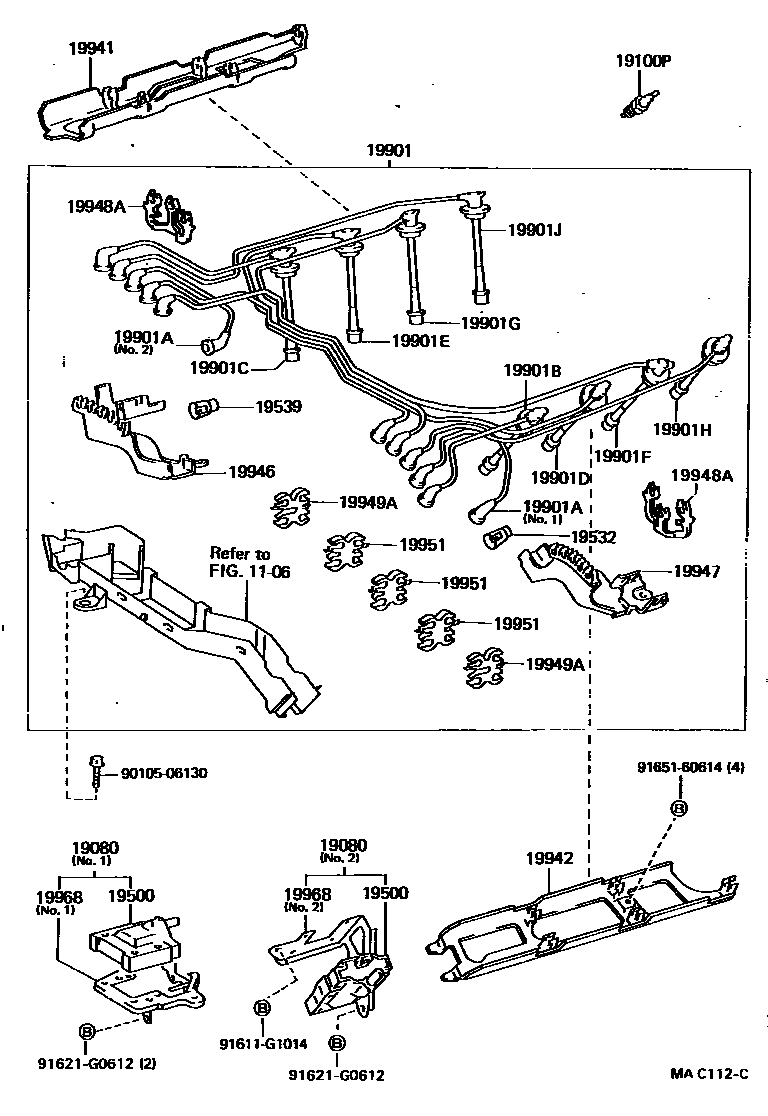

IGNITION COIL & SPARK PLUG / GLOW PLUG
1106
19080COIL ASSY, W/BRACKET & CORD
NO.2
19100PPLUG, SPARK
K20R-U,SOUTH AFRICA SPEC
K20R-U
19500COIL ASSY, IGNITION
19532HOLDER, RESISTIVE CODE, NO.2
19539HOLDER, RESISTIVE CODE, NO.4
19901CORD SET, COIL & SPARK, W/RESISTIVE
19901ACORD, COIL RESISTIVE
NO.1
NO.2
19901BCORD, SPARK PLUG RESISTIVE, NO.1
sub90919-15444
19901CCORD, SPARK PLUG RESISTIVE, NO.2
sub90919-15445
19901DCORD, SPARK PLUG RESISTIVE, NO.3
sub90919-15446
19901ECORD, SPARK PLUG RESISTIVE, NO.4
sub90919-15447
19901FCORD, SPARK PLUG RESISTIVE, NO.5
sub90919-15448
19901GCORD, SPARK PLUG RESISTIVE, NO.6
sub90919-15449
19901HCORD, SPARK PLUG RESISTIVE, NO.7
sub90919-15450
19901JCORD, SPARK PLUG RESISTIVE, NO.8
sub90919-15451
19941CLAMP, RESISTIVE CORD, NO.1
19942CLAMP, RESISTIVE CORD, NO.2
19946CLAMP, RESISTIVE CORD, NO.3
19947CLAMP, RESISTIVE CORD, NO.4
19948ACLAMP, CORD, NO.5
19949ACLAMP, CORD, NO.6
19951CLAMP, CORD, NO.7
19968BRACKET, IGNITION COIL
NO.1
NO.2
9010506130
main90105-06130
91611G1014
main91611-G1014
91621G0612
main91621-G0612
9165160614
main91651-60614
28 parts on this diagram · 1 diagram in section
