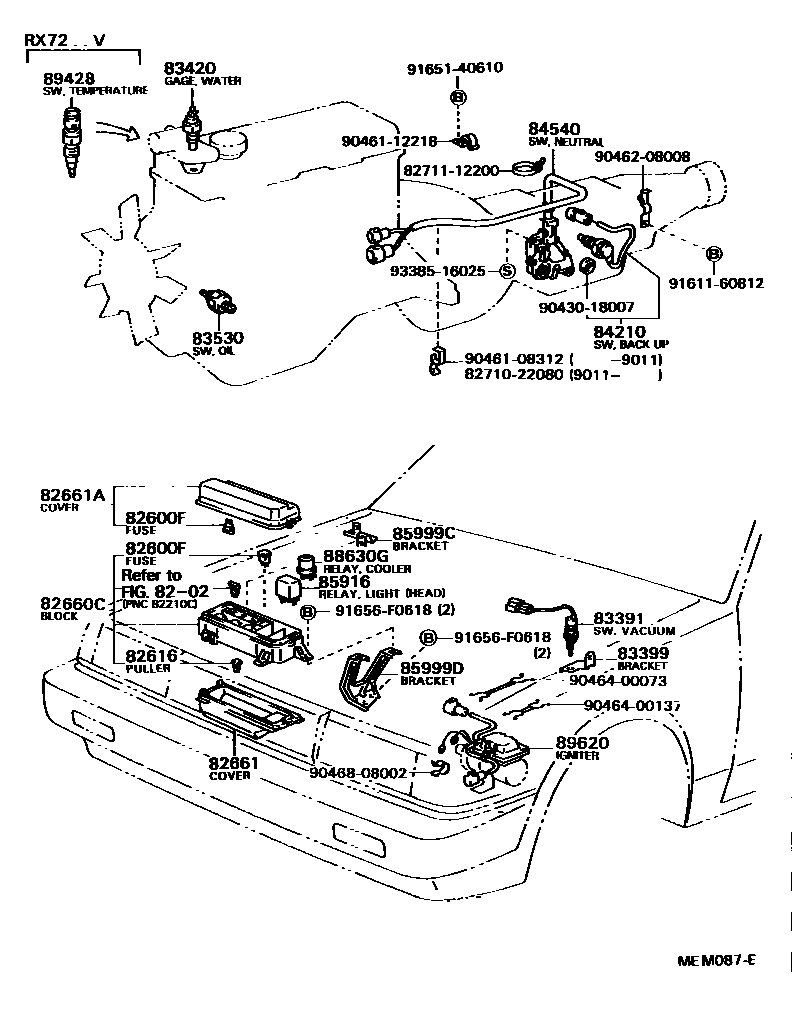

SWITCH & RELAY & COMPUTER

0001 1ENGINE,TRANSMISSION & ENGINE 0002 1ENGINE,TRANSMISSION & ENGINE 0003 1ENGINE,TRANSMISSION & ENGINE 0004 1INSTRUMENT PANEL 0005 1TURN SIGNAL SWITCH 0006 1COWL RH 0007 1COWL LH 0008 1 0009 1

8202

82600FFUSE, FUSE BLOCK

main90982-09002iGX71,MX75,RX7#,YX72..SA198810-199302

10A,10A,E/G ROOM RELAY BLOCK

main90982-09002iMX75198812-198909

10A,E/G ROOM RELAY BLOCK

main90982-09002iRX72..GEN,V198810-199008

10A,COWL SIDE

main90982-09003iRX72..LHD198810-199302

15A,E/G ROOM J/B

main90982-09003iGX71,MX75,RX7#,YX72..RHD198810-199302

15A,E/G ROOM RELAY BLOCK

main90982-09004iRX72..RHD..GEN198810-199302

20A,YELLOW,E/G ROOM J/B

main90982-09004iRX72..RHD..GEN198810-199302

20A,YELLOW,E/G ROOM RELAY BLOCK

main90982-09005iRX72..GEN,V198810-199302

7.5A,E/G ROOM J/B

main90982-09005iGX71,MX75,RX7#,YX72198810-199302

7.5A,E/G ROOM RELAY BLOCK

82616PULLER, FUSE

main82616-12010iGX71,MX75,RX7#,YX72198810-199302

82660CBLOCK ASSY, RELAY

main82660-22240iGX71,MX75,RX7#,YX72..SA198812-198909

sub82660-22270

main82660-22270iGX71,MX75,RX7#,YX72..SA198909-199205

main82660-91601iRX72..GEN,V198810-199302

82661COVER, RELAY BLOCK, NO.1

main82661-22110iRX7#,YX72198810-199302

main82661-22121iGX71,MX75198812-199205

82661ACOVER, RELAY BLOCK, NO.2

main82661-22131iRX7#,YX72..SA198812-198909

sub82661-22210

main82661-22171iGX71,MX75198812-198909

sub82661-22200

main82661-22200iGX71,MX75198909-199205

main82661-22210iRX7#,YX72..SA198909-199205

main82661-23010iRX72..GEN,V199012-199302

main82661-91602iRX72..GEN,V198810-199012

83391SWITCH, VACUUM

main83391-60010iYX72198812-199205

sub83391-27050

83399BRACKET, VACUUM SWITCH

main83399-22011iYX72198812-199205

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGX71,MX75,RX7#,YX72198810-199302

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iRX7#,YX72198810-199302

sub83530-28030

main83530-30050iGX71,MX75198812-199104

sub83530-30051

main83530-30051iGX71,MX75199104-199205

sub83530-60050

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGX71,MX75,RX7#,YX72..5F198810-199302

84540SWITCH ASSY, NEUTRAL START

main84540-22170iGX71..4FC198812-199202

sub84540-22171

main84540-22171iGX71..4FC199202-199205

main84540-22180iRX72..4FC198810-199204

sub84540-22181

main84540-22181iRX7#..4FC199202-199302

main84540-30240iMX75..GLX198812-199202

sub84540-30241

main84540-30241iMX75..GLX199202-199205

85916RELAY, LIGHT CONTROL

main90987-02002iGX71,MX75,RX7#,YX72198810-199302

MARUKO,TAIL LAMP

sub90987-02004

main90987-02004iGX71,MX75,RX7#,YX72198810-199302

*ND,TAIL LAMP

main90987-02006iGX71,MX75,RX7#,YX72..SA198810-199302

HEADLAMP

85999CBRACKET, RELAY, NO.3

main85999-22130iRX7#,YX72..SA199008-199205

main85999-22141iGX71,MX75198812-199205

main85999-22150iRX7#,YX72198810-199302

sub85999-23010

85999DBRACKET, RELAY, NO.4

main85999-22130iRX7#,YX72198810-199302

main85999-22150iRX7#,YX72..SA199008-199205

sub85999-23010

88630GRELAY ASSY, COOLER

main90987-02004iGX71,MX75198810-199302

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20050iRX72..V198810-199302

89620IGNITER ASSY

main89620-22420iMX75198812-199205

main89620-22430iGX71198812-199205

main89620-60080iRX7#198810-199302

8271022080HARNESS ASSY, OIL HEATER

main82710-22080

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9043018007

main90430-18007

9046108312

main90461-08312

9046112218

main90461-12218

9046208008

main90462-08008

9046400073

main90464-00073

9046400137

main90464-00137

9046808002

main90468-08002

9161160812

main91611-60812

9165140610

main91651-40610

91656F0618

main91656-F0618

9338516025

main93385-16025

31 parts on this diagram · 9 diagrams in section
