E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

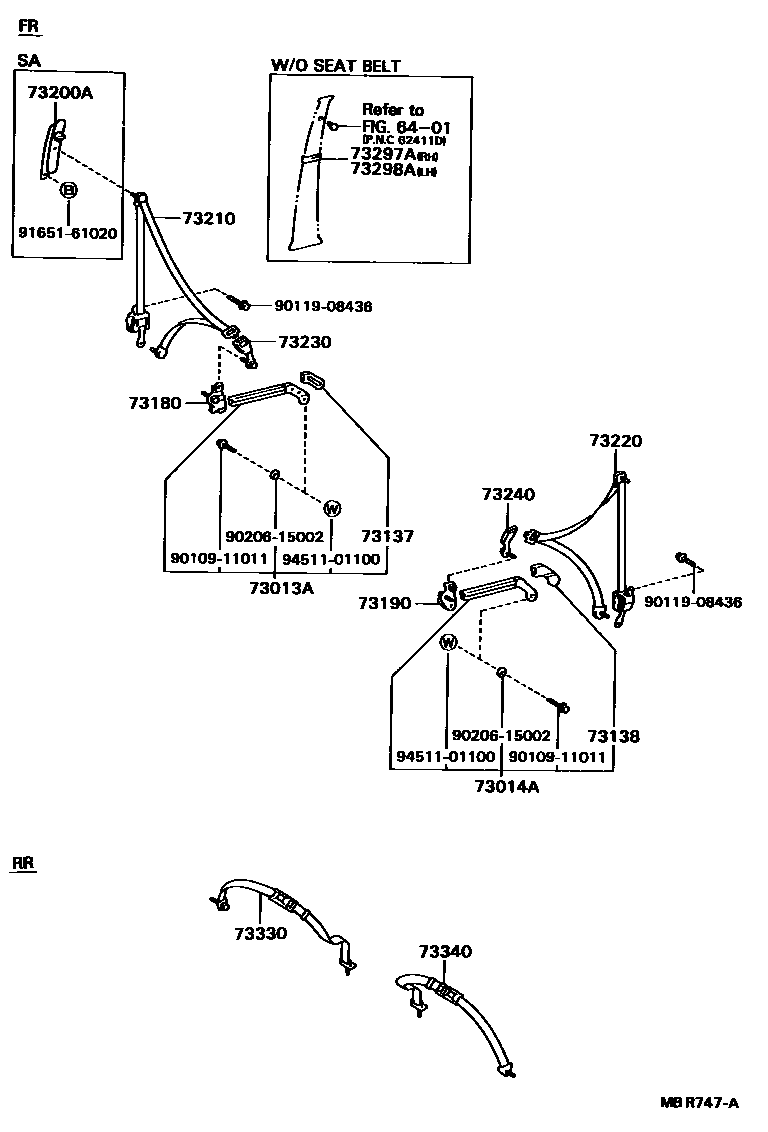

Parts diagram
6401
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-22050-03i198812-199205
COOL GRAY,TRIM1#
sub73013-22050
main73013-22050-06i198810-199302
SABLE,TRIM4#
sub73013-22050
main73013-22050-12i198810-199302
NEW MAROON,TRIM3#
sub73013-22050
main73013-22050-13i199008-199302
MEDIUM GRAY,TRIM1#
sub73013-22050
main73013-22050-14i198810-199008
BLUE,TRIM8#
sub73013-22050
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
main73014-22050-03i198812-199009
COOL GRAY,TRIM1#
sub73014-22050
main73014-22050-06i198810-199302
SABLE,TRIM4#
sub73014-22050
main73014-22050-12i198810-199302
NEW MAROON,TRIM3#
sub73014-22050
main73014-22050-13i199008-199302
MEDIUM GRAY,TRIM1#
sub73014-22050
main73014-22050-14i198810-199008
BLUE,TRIM8#
sub73014-22050
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
main73137-22030-03i198812-199009
COOL GRAY,TRIM1#
sub73137-22030
sub72137-22030
main73137-22030-06i198810-199302
SABLE,TRIM4#
sub73137-22030
sub72137-22030
main73137-22030-12i198810-199302
NEW MAROON,TRIM3#
sub73137-22030
sub72137-22030
main73137-22030-13i199008-199302
MEDIUM GRAY,TRIM1#
sub73137-22030
sub72137-22030
main73137-22030-14i198810-199008
BLUE,TRIM8#
sub73137-22030
sub72137-22030
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
main73138-22030-03i198812-199009
COOL GRAY,TRIM1#
sub73138-22030
main73138-22030-06i198810-199302
SABLE,TRIM4#
sub73138-22030
main73138-22030-12i198810-199302
NEW MAROON,TRIM3#
sub73138-22030
main73138-22030-13i199008-199302
MEDIUM GRAY,TRIM1#
sub73138-22030
main73138-22030-14i198810-199008
BLUE,TRIM8#
sub73138-22030
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-22021i198810-199302
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
main73012-22021i198810-199302
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-22010-03i198812-198912
COOL GRAY,TRIM1#
main73200-22010-06i198812-198912
SABLE,TRIM4#
main73200-22010-13i199009-199205
MEDIUM GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-23030-02i199102-199302
NEW MAROON,TRIM3#
main73210-23030-03i199102-199302
MEDIUM GRAY,TRIM1#
main73210-23030-06i199102-199302
SABLE,TRIM4#
main73210-23040-02i199102-199302
NEW MAROON,TRIM3#
main73210-23040-03i199102-199302
MEDIUM GRAY,TRIM1#
main73210-23040-06i199102-199302
SABLE,TRIM4#
main73210-91602-02i198810-199102
NEW MAROON,TRIM3#
sub73210-23030
main73210-91602-03i199008-199010
MEDIUM GRAY,TRIM1#
sub73210-23030
main73210-91602-04i198810-199008
BLUE,TRIM8#
sub73210-23030
main73210-91602-06i198810-199102
SABLE,TRIM4#
sub73210-23030
main73210-91603-02i198810-199102
NEW MAROON,TRIM3#
sub73210-23040
main73210-91603-03i199008-199010
MEDIUM GRAY,TRIM1#
sub73210-23040
main73210-91603-04i198810-199008
BLUE,TRIM8#
sub73210-23040
main73210-91603-06i198810-199102
SABLE,TRIM4#
sub73210-23040
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-23030-02i199102-199302
NEW MAROON,TRIM3#
main73220-23030-03i199102-199302
MEDIUM GRAY,TRIM1#
main73220-23030-06i199102-199302
SABLE,TRIM4#
main73220-23040-02i199102-199302
NEW MAROON,TRIM3#
main73220-23040-03i199102-199302
MEDIUM GRAY,TRIM1#
main73220-23040-06i199102-199302
SABLE,TRIM4#
main73220-91602-02i198810-199102
NEW MAROON,TRIM3#
sub73220-23030
main73220-91602-03i199008-199010
MEDIUM GRAY,TRIM1#
sub73220-23030
main73220-91602-04i198810-199008
BLUE,TRIM8#
sub73220-23030
main73220-91602-06i198810-199102
SABLE,TRIM4#
sub73220-23030
main73220-91603-02i198810-199102
NEW MAROON,TRIM3#
sub73220-23040
main73220-91603-03i199008-199010
MEDIUM GRAY,TRIM1#
sub73220-23040
main73220-91603-04i198810-199008
BLUE,TRIM8#
sub73220-23040
main73220-91603-06i198810-199102
SABLE,TRIM4#
sub73220-23040
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-22190-06i198810-199302
SABLE,TRIM4#
main73230-22190-12i198810-199302
NEW MAROON,TRIM3#
main73230-22190-13i199008-199302
MEDIUM GRAY,TRIM1#
main73230-22190-14i198810-199008
BLUE,TRIM8#
main73230-22200-06i198810-199008
SABLE,TRIM4#
main73230-22200-12i198810-199008
NEW MAROON,TRIM3#
main73230-22200-14i198810-199008
BLUE,TRIM8#
main73230-23010-02i199008-199302
NEW MAROON,TRIM3#
main73230-23010-03i199008-199302
MEDIUM GRAY,TRIM1#
main73230-23010-06i199008-199302
SABLE,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-22190-06i198810-199302
SABLE,TRIM4#
main73230-22190-12i198810-199302
NEW MAROON,TRIM3#
main73230-22190-13i199008-199302
MEDIUM GRAY,TRIM1#
main73230-22190-14i198810-199008
BLUE,TRIM8#
main73240-22061-06i198810-199008
SABLE,TRIM4#
main73240-22061-12i198810-199008
NEW MAROON,TRIM3#
main73240-22061-14i198810-199008
BLUE,TRIM8#
main73240-23010-02i199008-199302
NEW MAROON,TRIM3#
main73240-23010-03i199008-199302
MEDIUM GRAY,TRIM1#
main73240-23010-06i199008-199302
SABLE,TRIM4#
73297ALID, CENTER PILLAR GARNISH BELT HOLE, RH
main73297-22030-06i198810-199008
SABLE,TRIM4#
sub73297-22030
main73297-22030-12i198810-199008
NEW MAROON,TRIM3#
sub73297-22030
main73297-22030-14i198810-199008
BLUE,TRIM8#
sub73297-22030
73298ALID, CENTER PILLAR GARNISH BELT HOLE, LH
main73298-22030-06i198810-199008
SABLE,TRIM4#
sub73298-22030
main73298-22030-12i198810-199008
NEW MAROON,TRIM3#
sub73298-22030
main73298-22030-14i198810-199008
BLUE,TRIM8#
sub73298-22030
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-22071-06i198810-199008
SABLE,TRIM4#
main73330-22071-12i198810-199008
NEW MAROON,TRIM3#
main73330-22071-14i198810-199008
BLUE,TRIM8#
main73330-23030-02i199008-199302
NEW MAROON,TRIM3#
main73330-23030-03i199008-199302
MEDIUM GRAY,TRIM1#
main73330-23030-06i199008-199302
SABLE,TRIM4#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-22071-06i198810-199008
SABLE,TRIM4#
main73330-22071-12i198810-199008
NEW MAROON,TRIM3#
main73330-22071-14i198810-199008
BLUE,TRIM8#
main73330-23030-02i199008-199302
NEW MAROON,TRIM3#
main73330-23030-03i199008-199302
MEDIUM GRAY,TRIM1#
main73330-23030-06i199008-199302
SABLE,TRIM4#
9010911011
main90109-11011
9011908436
main90119-08436
9020615002
main90206-15002
9165161020
main91651-61020
9451101100
main94511-01100

21 parts on this diagram · 1 diagram in section
