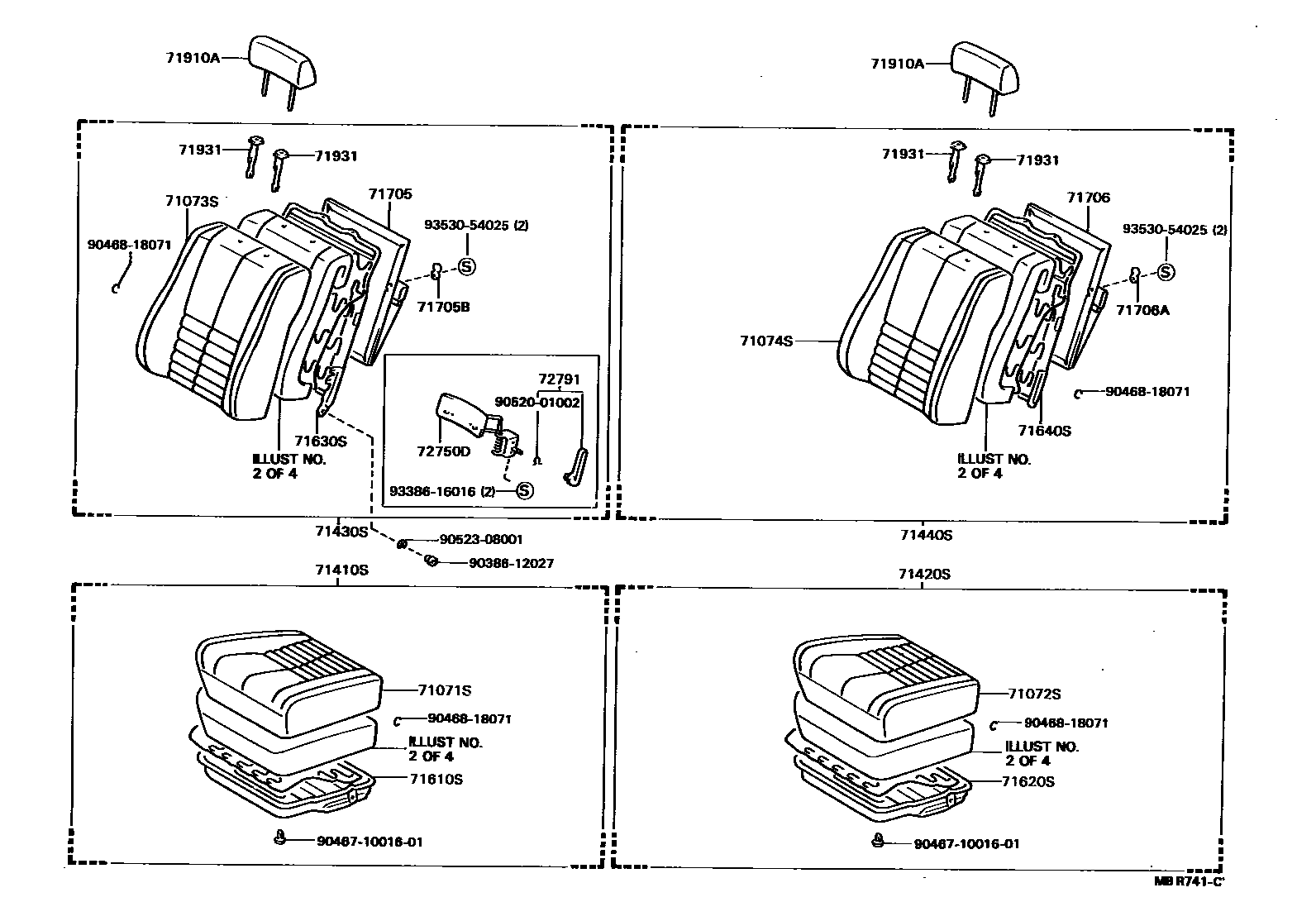

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-23040-02iRX72..LHD..XL199008-199302

NEW MAROON,TRIM3#

main71071-23040-03iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main71071-23040-06iRX72..LHD..XL199008-199302

SABLE,TRIM4#

main71071-91633-02iRX72..XL..(GEN,V)198810-199008

NEW MAROON,TRIM3#

main71071-91633-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main71071-91633-04iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main71071-91633-06iRX72..RHD..GEN199008-199302

SABLE,TRIM4#

main71071-91634-02iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71071-91634-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71071-91634-04iRX72..GL198810-199008

BLUE,TRIM8#

main71071-91634-06iRX72..GL198810-199008

SABLE,TRIM4#

main71071-91634-16iRX72..GL199008-199302

SABLE,TRIM4#

main71071-91635-03iYX72198812-199205

MEDIUM GRAY,MEDIUM GRAY,TRIM1#

main71071-91635-06iYX72198812-199205

SABLE,SABLE,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-23040-02iRX72..LHD..XL199008-199302

NEW MAROON,TRIM3#

main71072-23040-03iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main71072-23040-06iRX72..LHD..XL199008-199302

SABLE,TRIM4#

main71072-91611-02iRX72..XL..(GEN,V)198810-199008

NEW MAROON,TRIM3#

main71072-91611-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main71072-91611-04iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main71072-91611-06iRX72..XL..(GEN,V)198810-199008

SABLE,TRIM4#

main71072-91613-02iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71072-91613-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71072-91613-04iRX72..GL198810-199008

BLUE,TRIM8#

main71072-91613-06iRX72..GL198810-199008

SABLE,TRIM4#

main71072-91613-16iRX72..GL199008-199302

SABLE,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-23100-02iRX72..LHD..XL199008-199302

NEW MAROON,TRIM3#

main71073-23100-03iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main71073-23100-06iRX72..LHD..XL199008-199302

SABLE,TRIM4#

main71073-91651-02iRX72..XL..(GEN,V)198810-199008

NEW MAROON,TRIM3#

main71073-91651-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main71073-91651-04iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main71073-91651-06iRX72..XL..(GEN,V)198810-199008

SABLE,TRIM4#

main71073-91652-02iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71073-91652-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71073-91652-04iRX72..GL198810-199008

BLUE,TRIM8#

main71073-91652-06iRX72..GL198810-199008

SABLE,TRIM4#

main71073-91652-16iRX72..GL199008-199302

SABLE,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-91652-02iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71073-91652-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71073-91652-04iRX72..GL198810-199008

BLUE,TRIM8#

main71073-91652-06iRX72..GL198810-199008

SABLE,TRIM4#

main71073-91652-16iRX72..GL199008-199302

SABLE,TRIM4#

main71074-23070-02iRX72..LHD..XL199008-199302

NEW MAROON,TRIM3#

main71074-23070-03iRX72..LHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main71074-23070-06iRX72..LHD..XL199008-199302

SABLE,TRIM4#

main71074-91626-02iRX72..XL..(GEN,V)198810-199008

NEW MAROON,TRIM3#

main71074-91626-03iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main71074-91626-04iRX72..XL..(GEN,V)198810-199008

BLUE,TRIM8#

main71074-91626-06iRX72..XL..(GEN,V)198810-199008

SABLE,TRIM4#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-23080-02iRX72..LHD..XL199008-199302

***,NEW MAROON,TRIM3#

main71410-23080-03iRX72..LHD..XL199008-199302

***,MEDIUM GRAY,TRIM1#

main71410-23080-06iRX72..LHD..XL199008-199302

***,SABLE,TRIM4#

main71410-91638-02iRX72..RHD..GEN199008-199302

***,NEW MAROON,TRIM3#

main71410-91638-03iRX72..RHD..GEN199008-199302

***,MEDIUM GRAY,TRIM1#

main71410-91638-04iRX72..XL..(GEN,V)198810-199008

***,BLUE,TRIM8#

main71410-91638-06iRX72..XL..(GEN,V)198810-199008

***,SABLE,TRIM4#

main71410-91641-02iRX72..GL198810-199210

***,NEW MAROON,TRIM3#

main71410-91641-03iRX72..GL199008-199210

***,MEDIUM GRAY,TRIM1#

main71410-91641-04iRX72..GL198810-199008

***,BLUE,TRIM8#

main71410-91641-06iRX72..GL198810-199008

***,SABLE,TRIM4#

main71410-91641-16iRX72..GL199008-199210

***,SABLE,TRIM4#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71410-91640-02iRX72..GL198810-199210

***,NEW MAROON,TRIM3#

main71410-91640-03iRX72..GL199008-199210

***,MEDIUM GRAY,TRIM1#

main71410-91640-04iRX72..GL198810-199008

***,BLUE,TRIM8#

main71410-91640-06iRX72..GL198810-199008

***,SABLE,TRIM4#

main71410-91640-16iRX72..GL199008-199210

***,SABLE,TRIM4#

main71420-23060-02iRX72..LHD..XL199008-199302

***,NEW MAROON,TRIM3#

main71420-23060-03iRX72..LHD..XL199008-199302

***,MEDIUM GRAY,TRIM1#

main71420-23060-06iRX72..LHD..XL199008-199302

***,SABLE,TRIM4#

main71420-91625-02iRX72..RHD..GEN199008-199302

***,NEW MAROON,TRIM3#

main71420-91625-03iRX72..RHD..GEN199008-199302

***,MEDIUM GRAY,TRIM1#

main71420-91625-04iRX72..XL..(GEN,V)198810-199008

***,BLUE,TRIM8#

main71420-91625-06iRX72..XL..(GEN,V)198810-199008

***,SABLE,TRIM4#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-23100-02iRX72..LHD..XL199008-199302

***,NEW MAROON,TRIM3#

main71430-23100-03iRX72..LHD..XL199008-199302

***,MEDIUM GRAY,TRIM1#

main71430-23100-06iRX72..LHD..XL199008-199302

***,SABLE,TRIM4#

main71430-23120-02iRX72..RHD..GEN199008-199302

***,MAROON,TRIM3#

main71430-23120-03iRX72..RHD..GEN199009-199302

***,MEDIUM GRAY,TRIM1#

main71430-23120-06iRX72..RHD..GEN199008-199302

***,SABLE,TRIM4#

main71430-23130-02iRX72..GL199008-199302

***,MAROON,TRIM3#

main71430-23130-03iRX72..GL199008-199302

***,MEDIUM GRAY,TRIM1#

main71430-23130-06iRX72..GL199008-199302

***,SABLE,TRIM4#

main71430-91688-02iRX72..XL..(GEN,V)198810-199008

***,NEW MAROON,TRIM3#

main71430-91688-04iRX72..XL..(GEN,V)198810-199008

***,BLUE,TRIM8#

main71430-91688-06iRX72..XL..(GEN,V)198810-199008

***,SABLE,TRIM4#

main71430-91A01-02iRX72..GL198810-199008

***,NEW MAROON,TRIM3#

main71430-91A01-04iRX72..GL198810-199008

***,BLUE,TRIM8#

main71430-91A01-06iRX72..GL198810-199008

***,SABLE,TRIM4#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-23070iRX72..LHD..XL199008-199302

***

main71440-23090-02iRX72..RHD..GEN199008-199302

***,MAROON,TRIM3#

main71440-23090-03iRX72..RHD..GEN199008-199302

***,MEDIUM GRAY,TRIM1#

main71440-23090-06iRX72..RHD..GEN199008-199302

***,SABLE,TRIM4#

main71440-23100-02iRX72..GL199008-199302

***,MAROON,TRIM3#

main71440-23100-03iRX72..GL199008-199302

***,MEDIUM GRAY,TRIM1#

main71440-23100-06iRX72..GL199008-199302

***,SABLE,TRIM4#

main71440-91661-02iRX72..XL..(GEN,V)198810-199008

***,NEW MAROON,TRIM3#

main71440-91661-04iRX72..XL..(GEN,V)198810-199008

***,BLUE,TRIM8#

main71440-91661-06iRX72..XL..(GEN,V)198810-199008

***,SABLE,TRIM4#

main71440-91663-02iRX72..GL198810-199008

***,NEW MAROON,TRIM3#

main71440-91663-04iRX72..GL198810-199008

***,BLUE,TRIM8#

main71440-91663-06iRX72..GL198810-199008

***,SABLE,TRIM4#

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-22280iRX72..GEN,V198810-199302

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-22280iRX72..GEN,V198810-199302

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-22290iRX72..XL..(GEN,V)198810-199008

main71630-22300iRX72..GL198810-199008

main71630-23040iRX72..XL..(GEN,V)199008-199302

main71630-23050iRX72..GL199008-199302

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-22240iRX72..XL..(GEN,V)198810-199008

main71640-22250iRX72..GL198810-199008

main71640-23030iRX72..XL..(GEN,V)199008-199302

main71640-23040iRX72..GL199008-199302

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-91606-02iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71705-91606-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71705-91606-04iRX72..GL198810-199008

BLUE,TRIM8#

main71705-91606-06iRX72..GL198810-199008

SABLE,TRIM4#

main71705-91606-16iRX72..GL199008-199302

SABLE,TRIM4#

71705BCAP(FOR FRONT SEATBACK BOARD)

main71788-22010-20×2iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71788-22010-30×2iRX72..GL198810-199008

DARK BLUE,TRIM8#

main71788-22010-36×2iGX71,MX75199008-199205

SABLE,TRIM4#

main71788-22010-43×2iGX71,MX75198812-199009

COOL GRAY,TRIM1#

main71788-22010-50×2iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71788-22010-E0×2iRX72..GL199008-199302

SABLE,TRIM4#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-91606-02iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71705-91606-03iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71705-91606-04iRX72..GL198810-199008

BLUE,TRIM8#

main71705-91606-06iRX72..GL198810-199008

SABLE,TRIM4#

main71705-91606-16iRX72..GL199008-199302

SABLE,TRIM4#

71706ACAP, FRONT SEATBACK BOARD

main71788-22010-20×2iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71788-22010-30×2iRX72..GL198810-199008

DARK BLUE,TRIM8#

main71788-22010-36×2iGX71,MX75199008-199205

SABLE,TRIM4#

main71788-22010-43×2iGX71,MX75198812-199009

COOL GRAY,TRIM1#

main71788-22010-50×2iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71788-22010-E0×2iRX72..GL199008-199302

SABLE,TRIM4#

71910AHEADREST ASSY, FRONT SEAT

main71910-22540-06×2iRX7#,YX72..SA198812-199205

SABLE,SABLE,TRIM4#

main71910-22540-13×2iRX7#,YX72..SA198812-199205

MEDIUM GRAY,MEDIUM GRAY,TRIM1#

main71910-22660-02×2iRX72..RHD..GEN199008-199302

MAROON,TRIM3#

main71910-22660-03×2iRX72..RHD..GEN199008-199302

MEDIUM GRAY,TRIM1#

main71910-22660-04×2iRX72..XL..(GEN,V)198810-199008

DARK BLUE,TRIM8#

main71910-22660-06×2iRX72..XL..(GEN,V)198810-199008

SABLE,TRIM4#

main71910-22810-02×2iRX72..LHD..XL199008-199302

NEW MAROON,TRIM3#

main71910-22810-03×2iRX72..LHD..XL199008-199302

MEDIUM GRAY,TRIM1#

main71910-22810-06×2iRX72..LHD..XL199008-199302

SABLE,TRIM4#

main71910-91611-02×2iRX72..GL198810-199302

NEW MAROON,TRIM3#

main71910-91611-03×2iRX72..GL199008-199302

MEDIUM GRAY,TRIM1#

main71910-91611-04×2iRX72..GL198810-199008

BLUE,TRIM8#

main71910-91611-06×2iRX72..GL198810-199008

SABLE,TRIM4#

main71910-91611-16×2iRX72..GL199008-199302

SABLE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-10060-43×2iGX71,MX75,RX7#,YX72..SA198812-199009

W(LOCK),COOL GRAY,TRIM1#

main71930-10060-50×2iGX71,MX75,RX7#,YX72..SA198812-199205

W(LOCK),SABLE,TRIM4#

main71930-10060-B0×2iGX71,MX75,RX7#,YX72..SA199009-199205

W(LOCK),MEDIUM GRAY,TRIM1#

main71930-22040-02×2iRX72..GEN,V198810-199302

W(LOCK),NEW MAROON,TRIM3#

main71930-22040-03×2iRX72..GEN,V199008-199302

W(LOCK),MEDIUM GRAY,TRIM1#

main71930-22040-04×2iRX72..GEN,V198810-199008

W(LOCK),DARK BLUE,TRIM8#

main71930-22040-06×2iRX72..GEN,V198810-199302

W(LOCK),SABLE,TRIM4#

main71931-10010-43×2iGX71,MX75,RX7#,YX72..SA198812-199009

W/O(LOCK),COOL GRAY,TRIM1#

main71931-10010-50×2iGX71,MX75,RX7#,YX72..SA198812-199205

W/O(LOCK),SABLE,TRIM4#

main71931-10010-B0×2iGX71,MX75,RX7#,YX72..SA199009-199205

W/O(LOCK),MEDIUM GRAY,TRIM1#

main71931-22010-02×2iRX72..GEN,V198810-199302

W/O(LOCK),NEW MAROON,TRIM3#

main71931-22010-03×2iRX72..GEN,V199008-199302

W/O(LOCK),MEDIUM GRAY,TRIM1#

main71931-22010-04×2iRX72..GEN,V198810-199008

W/O(LOCK),DARK BLUE,TRIM8#

main71931-22010-06×2iRX72..GEN,V198810-199302

W/O(LOCK),SABLE,TRIM4#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-30090iGX71,MX75198812-199205

72791LEVER, LUMBAR SUPPORT

main72791-22020-43iGX71,MX75198812-199009

COOL GRAY,TRIM1#

main72791-22020-46iGX71,MX75198812-199205

SABLE,TRIM4#

main72791-22020-B0iGX71,MX75199009-199205

MEDIUM GRAY,TRIM1#

9038612027

main90386-12027

904671001601

main90467-1001601

9046818071

main90468-18071

9052001002

main90520-01002

9052308001

main90523-08001

9338616016

main93386-16016

9353054025

main93530-54025

27 parts on this diagram · 4 diagrams in section
