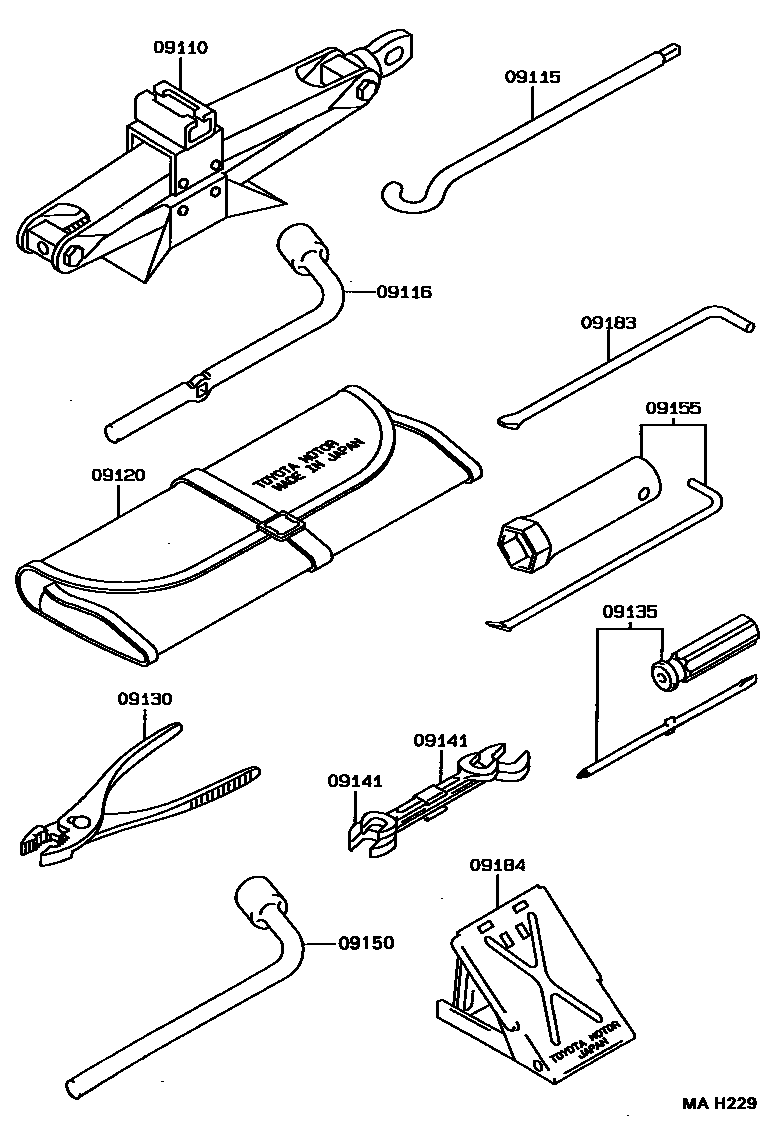

STANDARD TOOL

09110JACK ASSY

main09111-22040iGX71,MX75,RX7#,YX72198810-199302

sub09111-22080

sub09113-44010

09115ROD SUB-ASSY, JACK HANDLE

main09115-24010iGX71,MX75,RX7#,YX72198810-199302

09116LEVER, JACK HANDLE

main09116-16010iGX71,MX75,RX7#,YX72198810-199302

09120BAG, TOOL

main09120-30030iGX71,MX75,RX7#,YX72198810-199302

09130PLIERS

main99913-11500iGX71,MX75,RX7#,YX72198810-199302

09135DRIVER, SCREW

main99915-10700iGX71,MX75,RX7#,YX72198810-199302

09141SPANNER

main99914-10810iGX71,MX75,RX7#,YX72198810-199302

8 X 10

main99914-11214iGX71,MX75,RX7#,YX72198810-199302

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iRX72..GEN,V199008-199302

09155WRENCH, SPARK PLUG

main09155-00120iMX75198812-199205

main09155-41020iYX72198812-199205

main09155-43021iRX7#198810-199302

main09155-74020iGX71198812-199205

09183WRENCH, WHEEL CAP

main09183-00010iGX71,MX75,RX7#,YX72198810-199302

09184STOPPER, WHEEL

main09184-00010iGX71,MX75,RX7#,YX72198810-199302

11 parts on this diagram · 1 diagram in section
