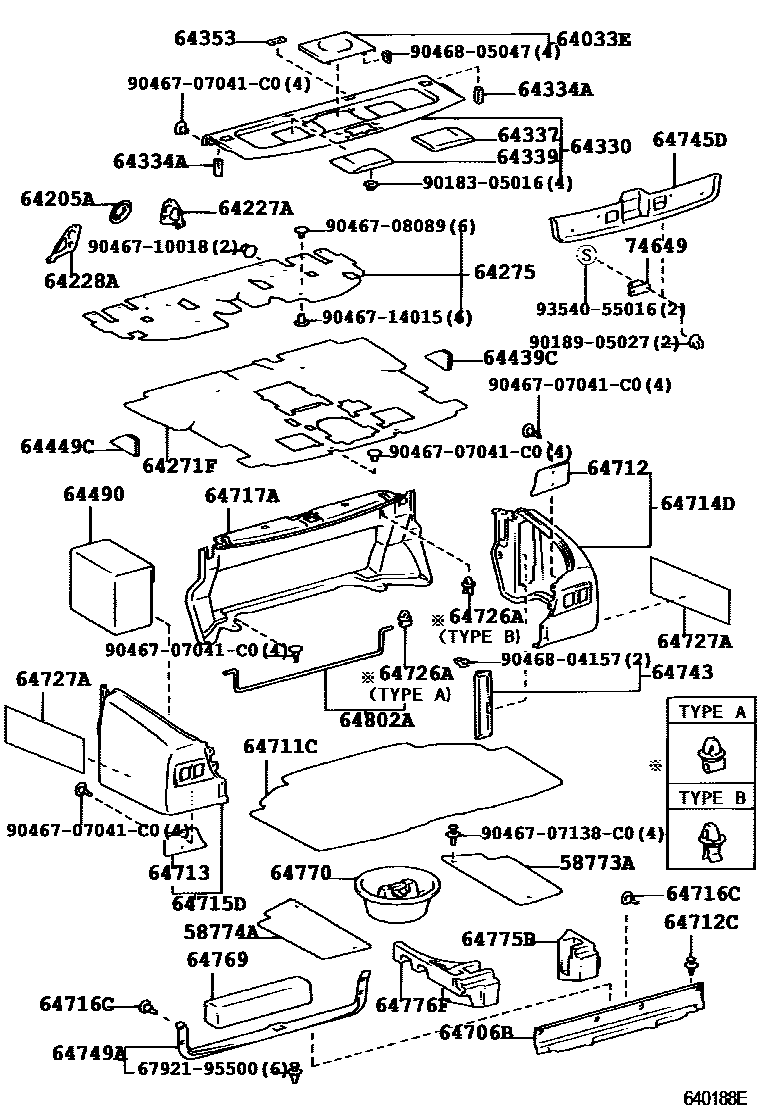

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
64033EGRILLE SUB-ASSY, REAR SPEAKER
W(REAR CURTAIN),MEDIUM GRAY,TRIM1#
W(REAR CURTAIN),ORCHID,TRIM4#
64205ACOVER SUB-ASSY, ROOM PARTITION
64227AEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228AEXTENSION, CENTER FLOOR TO BRACE, NO.2
64271FTRIM, ROOM PARTITION
64275PAD, ROOM PARTITION TRIM, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
MD.GRAY,TRIM1#
ORCHID,TRIM4#
64334APAD, PACKAGE TRAY TRIM
64337GARNISH, PACKAGE TRAY TRIM, RH
MD.GRAY,TRIM1#
ORCHID,TRIM4#
64339GARNISH, PACKAGE TRAY TRIM, LH
MD.GRAY,TRIM1#
ORCHID,TRIM4#
64353COVER, PACKAGE TRAY TRIM BELT HOLE
64439CCOVER, LUGGAGE ROOM BOX SIDE, RH
64449CCOVER, LUGGAGE ROOM BOX SIDE, LH
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
BLACK,TRIM1#,4#
64706BCOVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,4#
64711CCARPET, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#,4#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713COVER, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#,4#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM1#,4#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM1#,4#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,4#
64726ACLIP, LUGGAGE TRIM, REAR
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64743COVER, SIDE TRIM TOOL BAG
BLACK,TRIM1#,4#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM1#,4#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM1#,4#
64769CASE SUB-ASSY, TOOL BAG
BLACK,TRIM1#,4#
64770COVER ASSY, SPARE WHEEL
64775BGUARD, SPARE WHEEL
64776FGUARD, SPARE WHEEL, NO.2
64802AFRAME SUB-ASSY, BACK WINDOW
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9018305016
main90183-05016
9018905027
main90189-05027
9046707041C0
main90467-07041C0
9046707138C0
main90467-07138C0
9046708089
main90467-08089
9046710018
main90467-10018
9046714015
main90467-14015
9046804157
main90468-04157
9046805047
main90468-05047
9354055016
main93540-55016
47 parts on this diagram · 2 diagrams in section
