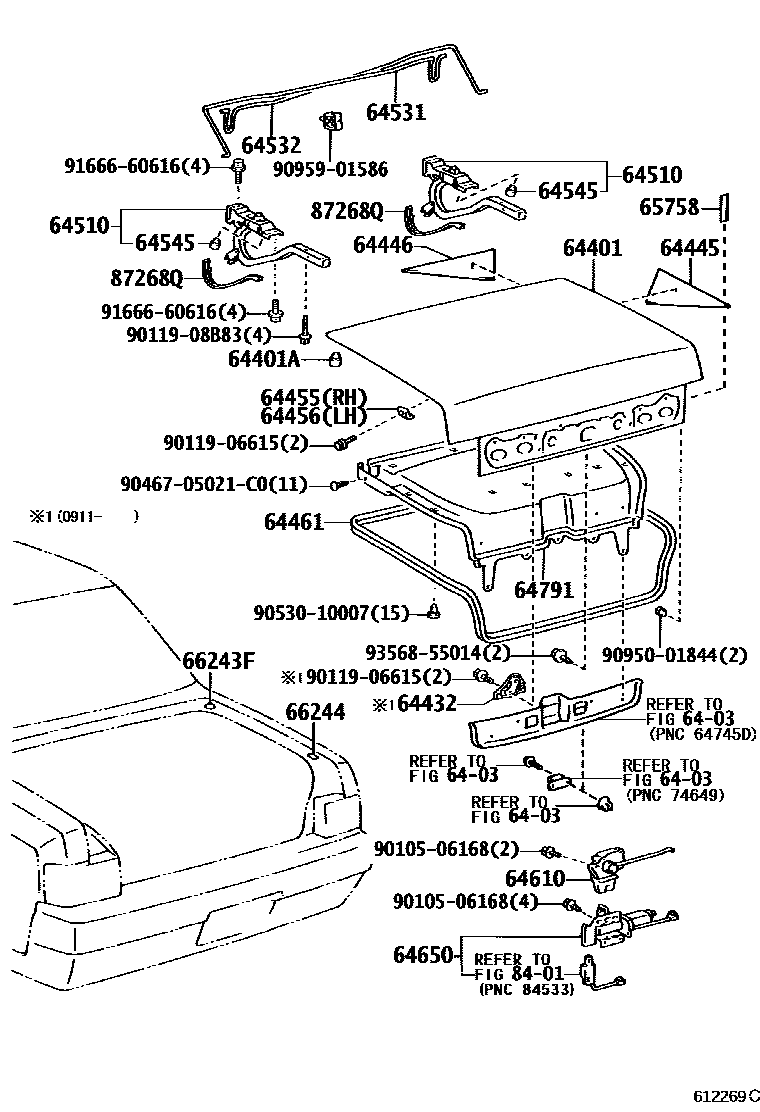

LUGGAGE COMPARTMENT DOOR & LOCK

6403

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-40030iGZG50199810-200911

sub64401-40040

sub64433-40020

sub90119-06615

main64401-40040iGZG50200911-201701

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06056iGZG50199810

64432REINFORCEMENT, LUGGAGE COMPARTMENT DOOR

main64433-40020iGZG50200911

64445PAD, LUGGAGE COMPARTMENT DOOR SILENCER, NO.1

main64445-40010iGZG50199810

64446PAD, LUGGAGE COMPARTMENT DOOR SILENCER, NO.2

main64446-40010iGZG50199810

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-50010iGZG50199810

64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH

main64456-50010iGZG50199810

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-40020iGZG50199810

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-40020iGZG50199810-200607

sub64510-40021

main64510-40021iGZG50200608-201701

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-40020iGZG50199810

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-40020iGZG50199810

64545CUSHION, LUGGAGE DOOR HINGE

main90541-11011iGZG50199810-201701

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-40020iGZG50199810

64650CLOSER ASSY, LUGGAGE DOOR

main64650-40040iGZG50199810

64791COVER, BACK DOOR TRIM

main64791-40020-C0iGZG50199810-201701

BLACK,TRIM1#,4#

65758SEAL, TAIL GATE, LOWER

main65758-40010iGZG50199810

66243FPROTECTOR, REAR BODY, NO.1

main66243-40010iGZG50199810

66244PROTECTOR, REAR BODY, NO.2

main66244-40010iGZG50199810

8401

87268QPROTECTOR

main82817-40290iGZG50199810

9010506168

main90105-06168

9011906615

main90119-06615

9011908B83

main90119-08B83

9046705021C0

main90467-05021C0

9053010007

main90530-10007

9095001844

main90950-01844

9095901586

main90959-01586

9166660616

main91666-60616

9356855014

main93568-55014

30 parts on this diagram · 1 diagram in section
