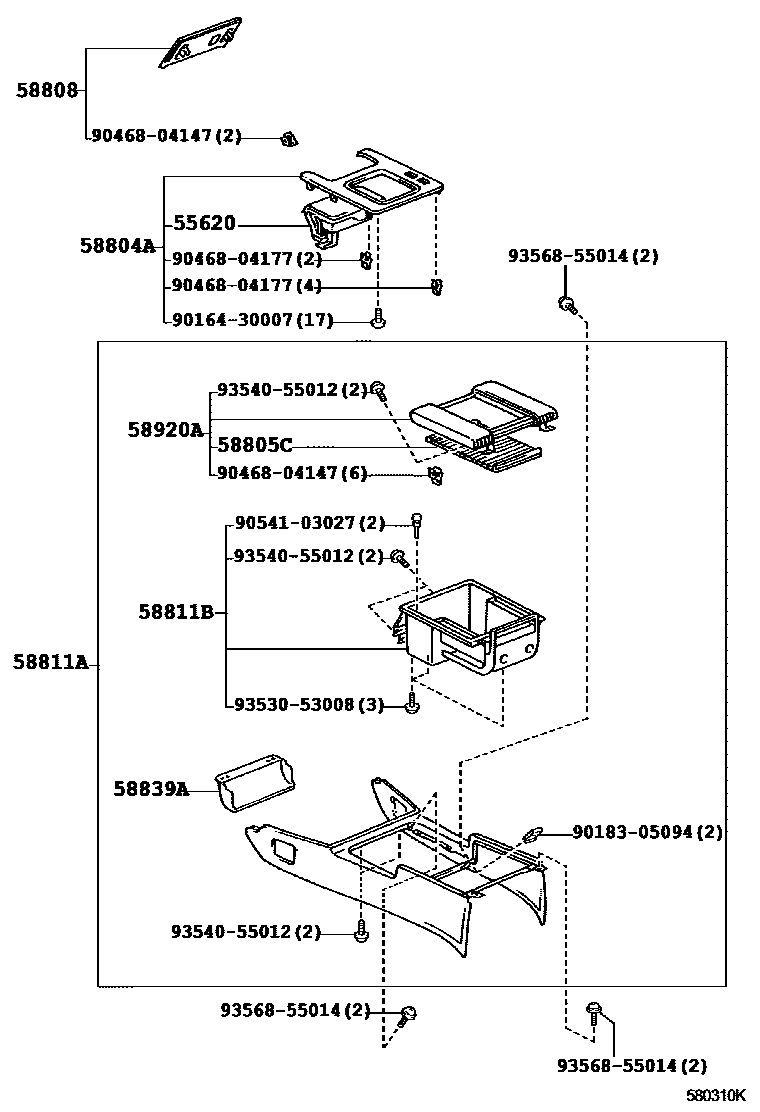

CONSOLE BOX & BRACKET

0001 1 0002 1

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55604-40010iGZG50..RHD199810

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-40070iGZG50..RHD199810

main58804-40100iGZG50..LHD199810

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-40020iGZG50199810

58808COVER SUB-ASSY, SHIFTING HOLE

main58840-40010iGZG50199810

58811ABOX, CONSOLE, FRONT

main58810-40190-B0iGZG50199810-200105

MD.GRAY,TRIM1#

sub58810-40191

main58810-40190-E0iGZG50199810-200105

ORCHID,TRIM4#

sub58810-40191

main58810-40191-B0iGZG50200105-201701

MD.GRAY,TRIM1#

main58810-40191-E0iGZG50200105-201701

ORCHID,TRIM4#

58811BBOX, CONSOLE

main58802-40040iGZG50199810-200105

sub58802-40041

main58802-40041iGZG50200105

58839ACOVER, CONSOLE BOX HOLE

main58839-40020iGZG50199810

58920AARMREST ASSY, REAR CONSOLE

main58920-40040-B0iGZG50199810

MD.GRAY,TRIM1#

main58920-40040-E0iGZG50199810

ORCHID,TRIM4#

9016430007

main90164-30007

9018305094

main90183-05094

9046804147

main90468-04147

9046804177

main90468-04177

9054103027

main90541-03027

9353053008

main93530-53008

9354055012

main93540-55012

9356855014

main93568-55014

16 parts on this diagram · 2 diagrams in section
