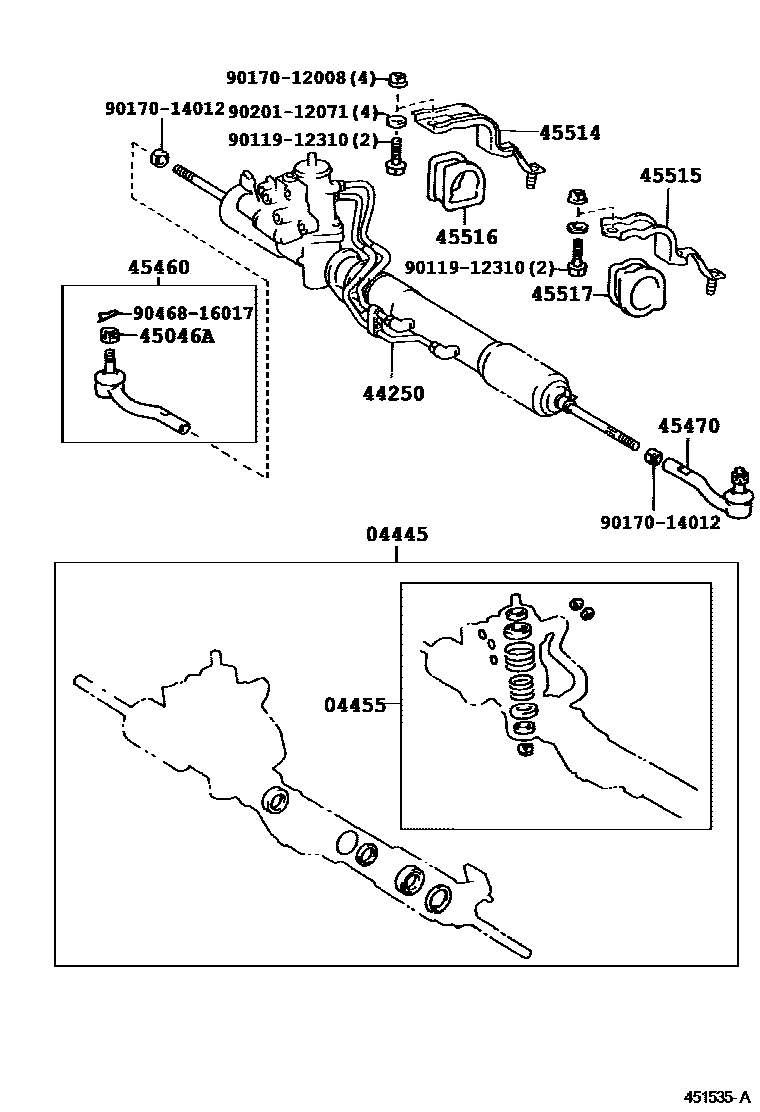

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)

main04445-50030iGZG50199810

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-50030iGZG50199810

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-40020iGZG50..RHD199810

main44250-40030iGZG50..LHD199810

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12007iGZG50199810

45460ROD ASSY, TIE, RH

main45460-49025iGZG50199810

45470ROD ASSY, TIE, LH

main45470-49015iGZG50199810

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-40020iGZG50199810

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-50020iGZG50199810

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-50020iGZG50199810

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-50020iGZG50199810

9011912310

main90119-12310

9017012008

main90170-12008

9017014012

main90170-14012

9020112071

main90201-12071

9046816017

main90468-16017

15 parts on this diagram · 4 diagrams in section
