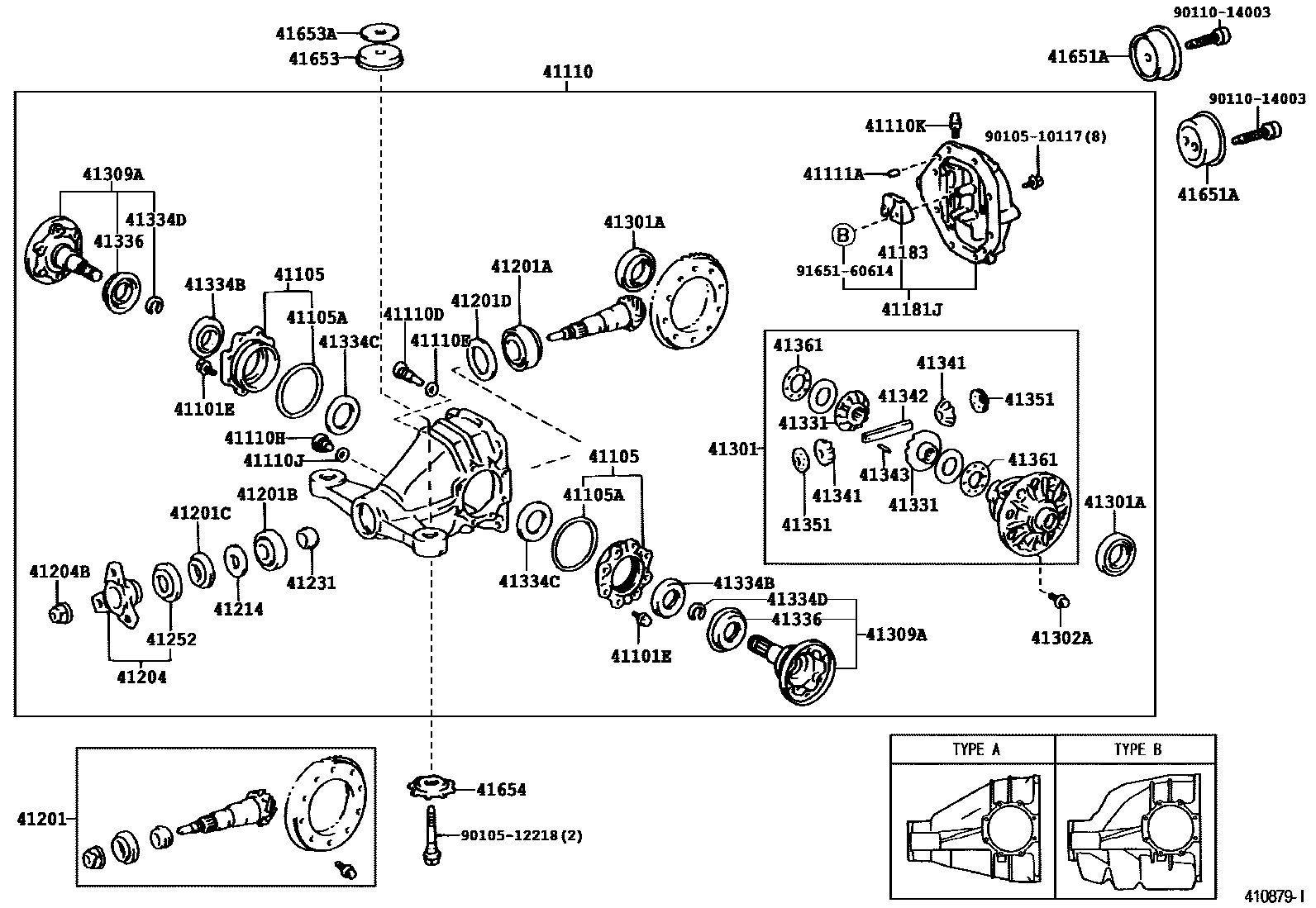

REAR AXLE HOUSING & DIFFERENTIAL
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41105RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER
41105ARING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=47:13=3.615,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
sub41201-49135
*FGR=47:13=3.615,PNC 41110 = TYPE B:REFER TO ILLUSTRATION;HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI OR CHINA SPEC
*FGR=47:13=3.615,PNC 41110 = TYPE B:REFER TO ILLUSTRATION
*FGR=47:13=3.615,PNC 41110 = TYPE B:REFER TO ILLUSTRATION
41201ABEARING (FOR REAR DRIVE PINION REAR)
sub90366-45032
PNC 41110 = TYPE A:REFER TO ILLUSTRATION
PNC 41110 = TYPE B:REFER TO ILLUSTRATION
41201BBEARING (FOR REAR DRIVE PINION FRONT)
CHINA SPEC OR SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC OR BRUNEI SPEC
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=40.4
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
CHINA SPEC OR SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC OR BRUNEI SPEC
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
CHINA SPEC OR SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC OR BRUNEI SPEC
sub41301-50H00
sub41301-50H01
sub41301-50H02
CHINA SPEC OR SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC OR BRUNEI SPEC
sub41301-50031
sub41301-50031
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
PNC 41110 = TYPE A:REFER TO ILLUSTRATION,LH
PNC 41110 = TYPE B:REFER TO ILLUSTRATION
CHINA SPEC OR SINGAPORE SPEC OR HONG KONG SPEC OR THAILAND SPEC OR BRUNEI SPEC
PNC 41110 = TYPE A:REFER TO ILLUSTRATION
PNC 41110 = TYPE A:REFER TO ILLUSTRATION,RH
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
PNC 41110 = TYPE B:REFER TO ILLUSTRATION
PNC 41110 = TYPE A:REFER TO ILLUSTRATION
41331GEAR, REAR DIFFERENTIAL SIDE
41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
PNC 41110 = TYPE B:REFER TO ILLUSTRATION
PNC 41110 = TYPE A:REFER TO ILLUSTRATION
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
T=2.30,MARK 30
T=2.32,MARK 32
T=2.34,MARK 34
T=2.36,MARK 36
T=2.38,MARK 38
T=2.40,MARK 40
T=2.42,MARK 42
T=2.44,MARK 44
T=2.46,MARK 46
T=2.48,MARK 48
T=2.50,MARK 50
T=2.52,MARK 52
T=2.54,MARK 54
T=2.56,MARK 56
T=2.58,MARK 58
T=2.60,MARK 60
T=2.62,MARK 62
T=2.64,MARK 64
T=2.66,MARK 66
T=2.68,MARK 68
T=2.70,MARK 70
T=2.72,MARK 72
T=2.74,MARK 74
T=2.76,MARK 76
T=2.78,MARK 78
T=2.80,MARK 80
T=2.82,MARK 82
T=2.84,MARK 84
T=2.86,MARK 86
T=3.66,MARK 66,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.68,MARK 68,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.70,MARK 70,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.72,MARK 72,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.74,MARK 74,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.76,MARK 76,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.78,MARK 78,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.80,MARK 80,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.82,MARK 82,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.84,MARK 84,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.86,MARK 86,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.88,MARK 88,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.90,MARK 90,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.92,MARK 92,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.94,MARK 94,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.96,MARK 96,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=3.98,MARK 98,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.00,MARK 00,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.02,MARK 02,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.04,MARK 04,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.06,MARK 06,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.08,MARK 08,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.10,MARK 10,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.12,MARK 12,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.14,MARK 14,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.16,MARK 16,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.18,MARK 18,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.20,MARK 20,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.22,MARK 22,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.24,MARK 24,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.26,MARK 26,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.28,MARK 28,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.30,MARK 30,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.32,MARK 32,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.34,MARK 34,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.36,MARK 36,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.38,MARK 38,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.40,MARK 40,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
T=4.42,MARK 42,PNC 41110 = TYPE A:REFER TO ILLUSTRATION
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.8
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41341PINION, REAR DIFFERENTIAL
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.6
T=1.50
T=1.55
T=1.65
T=1.75
T=1.85
T=1.90
T=1.7
T=1.8
41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER
H=17.5
41653AWASHER, PLATE (FOR REAR DIFFERENTIAL MOUNT STOPPER UPPER)
T=1.0
T=2.0
T=1.6
T=2.8
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
9010510117
main90105-10117
9010512218
main90105-12218
9011014003
main90110-14003
9165160614
main91651-60614
44 parts on this diagram · 2 diagrams in section
