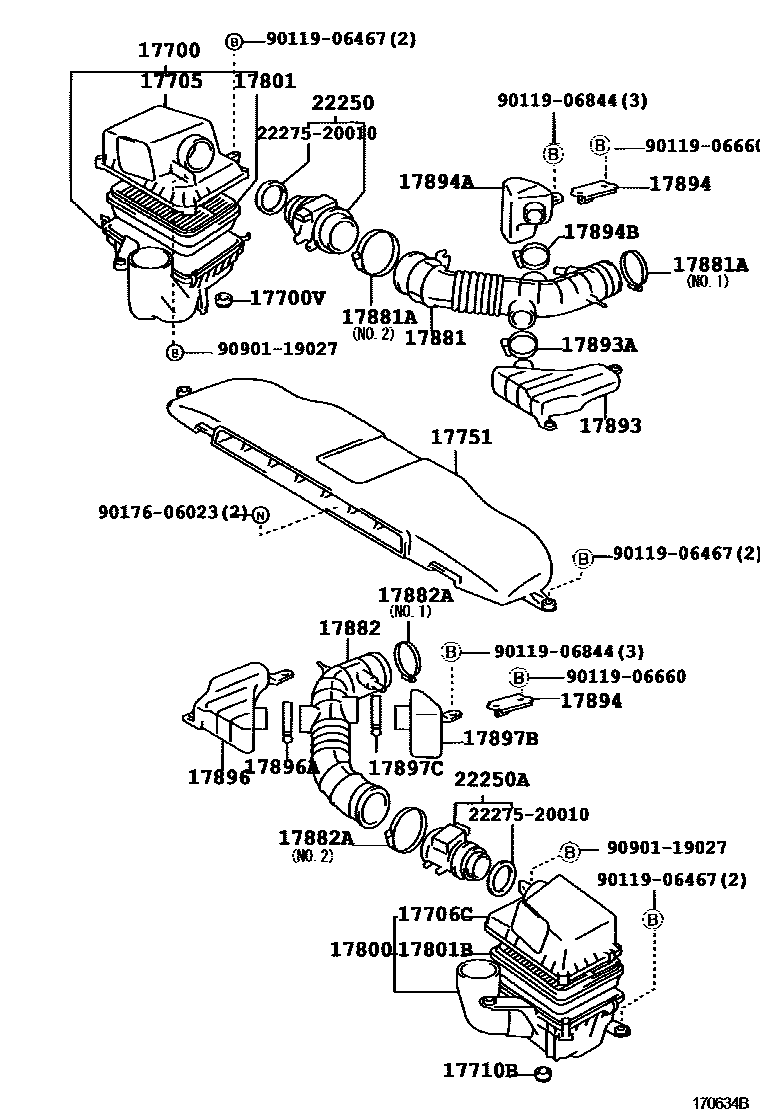

AIR CLEANER
17700CLEANER ASSY, AIR
17700VBUSH(FOR AIR CLEANER)
17705CAP SUB-ASSY, AIR CLEANER
17706CCAP SUB-ASSY, AIR CLEANER, LH
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17800CLEANER ASSY, AIR W/ELEMENT, LH
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801BELEMENT SUB-ASSY, AIR CLEANER FILTER, NO.2
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1
NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
NO.1
NO.2
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17894BRACKET, RESONATOR
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
17896RESONATOR, INTAKE AIR, NO.3
17896ACLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3)
17897BRESONATOR, INTAKE AIR, NO.4
17897CCLAMP(FOR INTAKE AIR RESONATOR, NO.4)
22250METER ASSY, INTAKE AIR FLOW
22250AMETER ASSY, INTAKE AIR FLOW, NO.2
2227520010GASKET, AIR FLOW METER
main22275-20010
9011906467
main90119-06467
9011906660
main90119-06660
9011906844
main90119-06844
9017606023
main90176-06023
9090119027
main90901-19027
30 parts on this diagram · 1 diagram in section
