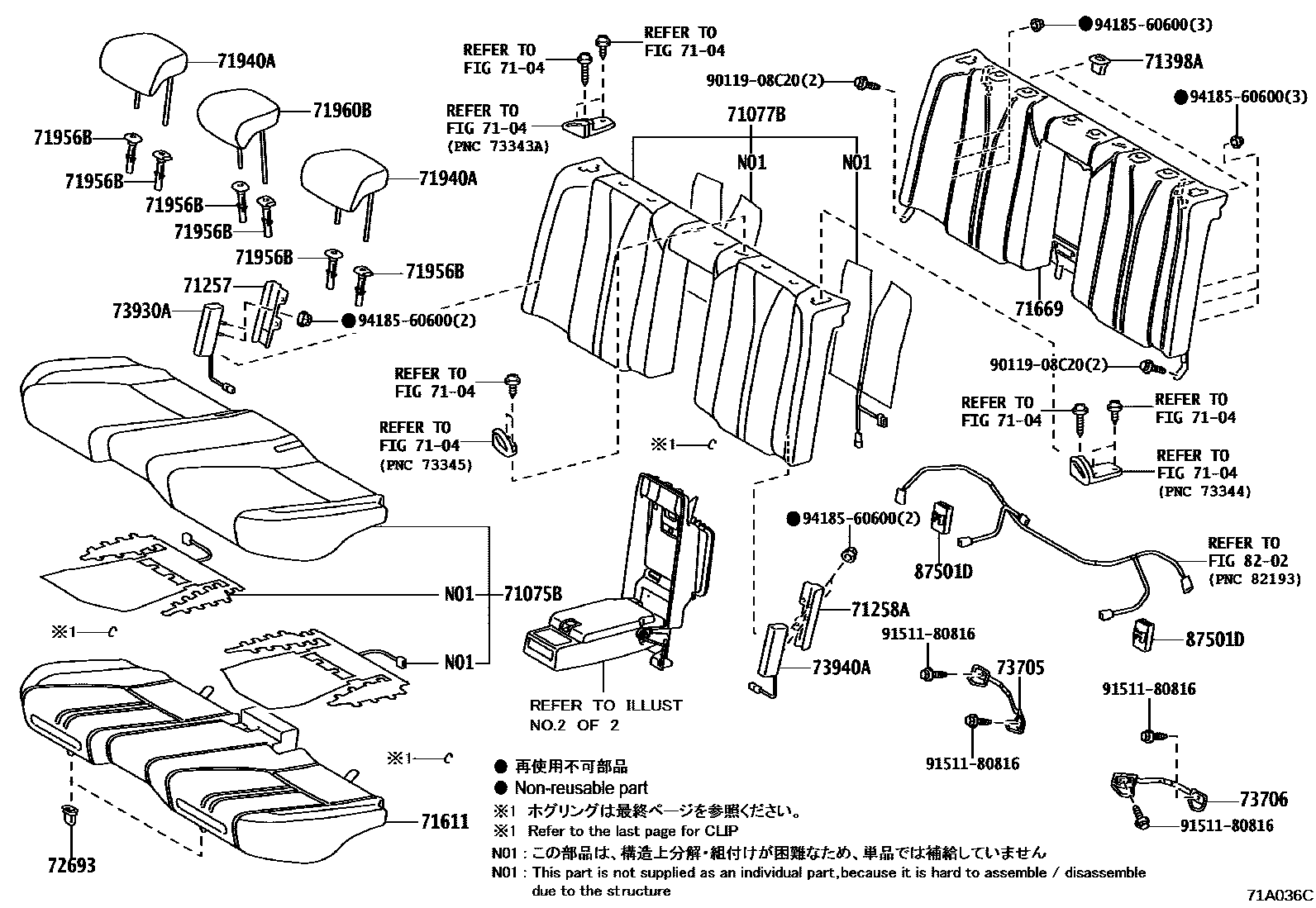

REAR SEAT & SEAT TRACK

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30J10-C1supersedes 71075-30J00-20i201510-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR),BLACK,TRIM2#

sub71075-30J11

main71075-30J30-B1i201510-201709

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),MOON STONE/BLACK,TRIM1#

sub71075-30J31

main71075-30J30-C7supersedes 71075-30J00-20i201510-201804

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLACK,TRIM2#

sub71075-30J31

main71075-30J30-C8i201709-201804

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/RED,TRIM33,34,35

sub71075-30J31

main71075-30J30-D1i201510-201709

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),RED/BLACK,TRIM3#

sub71075-30J31

main71075-30J40-20i201709-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED,TRIM33,34,

sub71075-30J41

main71075-30J40-B1i201510-201709

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),MOON STONE/BLACK,TRI

sub71075-30J41

main71075-30J40-C9supersedes 71075-30J00-20i201510-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/BLACK,TRIM2#

sub71075-30J41

main71075-30J40-D1i201510-201709

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM3#

sub71075-30J41

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-30M10-C0supersedes 71077-30M00-C0i201510-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR),BLACK,TRIM2#

sub71077-30M11

main71077-30M30-B1i201510-201709

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),MOON STONE/BLACK,TRIM1#

sub71077-30M31

main71077-30M30-C2supersedes 71077-30M00-C0i201510-201804

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/BLACK,TRIM2#

sub71077-30M31

main71077-30M30-C8i201709-201804

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),BLACK/RED,TRIM33,34,35

sub71077-30M31

main71077-30M30-D1i201510-201709

SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER & PASSENGER+COOLER),RED/BLACK,TRIM3#

sub71077-30M31

main71077-30M40-B1i201510-201709

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),MOON STONE/BLACK,TRI

sub71077-30M41

main71077-30M40-C4supersedes 71077-30M00-C0i201510-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/WHITE,TRIM2#

sub71077-30M41

main71077-30M40-C9i201709-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),BLACK/RED,TRIM33,34,

sub71077-30M41

main71077-30M40-D1i201709-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER),RED/BLACK,TRIM30,31,

sub71077-30M41

71257PLATE, REAR SEATBACK ANCHOR

main71257-30100i201510-201804

71258APLATE, REAR SEATBACK ANCHOR, LH

main71258-30170i201510-201804

71398AHOLDER, REAR SEATBACK

main71398-30010×2i201510-201804

71611PAD, REAR SEAT CUSHION

main71503-30280i201510-201804

71669PAD, REAR SEATBACK

main71507-30270i201510-201804

71940AHEADREST ASSY, REAR SEAT

main71940-30D70-B4×2i201510-201709

MOON STONE,TRIM1#

main71940-30D70-C1×2i201510-201804

BLACK,TRIM2#

main71940-30D70-D4×2i201510-201804

RED,TRIM3#

71956BSUPPORT, REAR SEAT HEADREST

main71930-52030-C1×3i201510-201804

W(LOCK)&W(BUTTON),BLACK,TRIM2#,3#

main71930-52030-P1×3i201510-201709

W(LOCK)&W(BUTTON),MOON STONE,TRIM1#

main71931-42020-C2×3i201510-201804

W(LOCK)&W/O(BUTTON),BLACK,TRIM2#,3#

main71931-42020-S4×3i201510-201709

W(LOCK)&W/O(BUTTON),MOON STONE,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-30570-C1i201510-201804

BLACK,TRIM1#,2#,3#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2i201510-201804

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-30050i201510-201804

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-30050i201510-201804

73930AAIRBAG ASSY, REAR SEAT, RH

main73930-30061i201510-201804

73940AAIRBAG ASSY, REAR SEAT, LH

main73940-30061i201510-201804

8202

87501DCONTROL SUB-ASSY, SEAT HEATER

main87501-30020×2i201510-201804

AIR CONDITIONER-WITH(3ZONE CONTROL+AUTO RECIRCULATE)&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(DRIVER, PASSENGER & REAR+COOLER)

9011908C20

main90119-08C20

9151180816

main91511-80816

9418560600

main94185-60600

21 parts on this diagram · 3 diagrams in section
