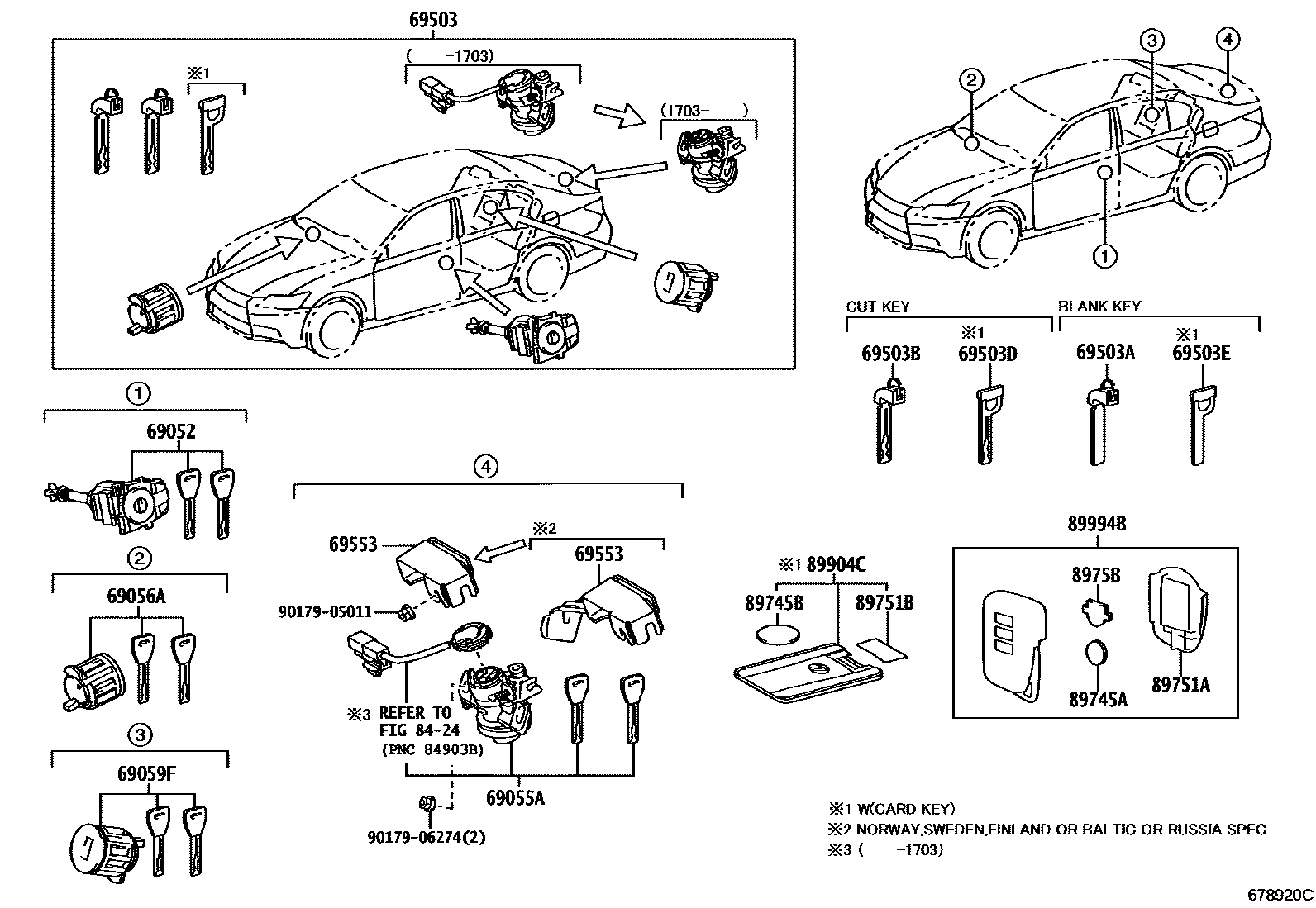

LOCK CYLINDER SET

0001 1LHD 0002 1RHD

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30340iURL10..LHD201510-201804

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30480iURL10201510-201709

main69055-33540iURL10201709-201804

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iURL10201510-201804

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69056-50160iURL10201510-201804

69503CYLINDER SET, LOCK

main69005-30D30iURL10..RHD201510-201709

sub69005-30J20

main69005-30D31iURL10..RHD201709-201804

sub69005-30J21

main69005-30E50iURL10..LHD201510-201709

sub69005-30G30

main69005-30E51iURL10..LHD201709-201804

sub69005-30G31

69503AKEY, BLANK

main69515-30380iURL10201510-201804

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-30370iURL10201510-201804

MASTER KEY,W(*68)

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iURL10201510-201804

MASTER KEY

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-30010iURL10..LHD201510-201804

CYPRUS SPEC

main69553-30021iURL10..RHD201510-201804

NORWAY,SWEDEN,FINLAND SPEC

main69553-30021iURL10..RHD201510-201804

BALTIC SPEC

main69553-30021iURL10..RHD201510-201804

RUSSIA SPEC

8424

89745ABATTERY, TRANSMITTER

main89745-50020iURL10201510-201804

CR2032

89745BBATTERY, TRANSMITTER(CARD KEY)

89751ACOVER, TRANSMITTER HOUSING

main89751-48290iURL10201510-201804

89751BCOVER, TRANSMITTER HOUSING

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iURL10201510-201804

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

89994BTRANSMITTER, ELECTRICAL KEY

main89904-30N00iURL10201510-201804

9017905011

main90179-05011

9017906274

main90179-06274

20 parts on this diagram · 2 diagrams in section
