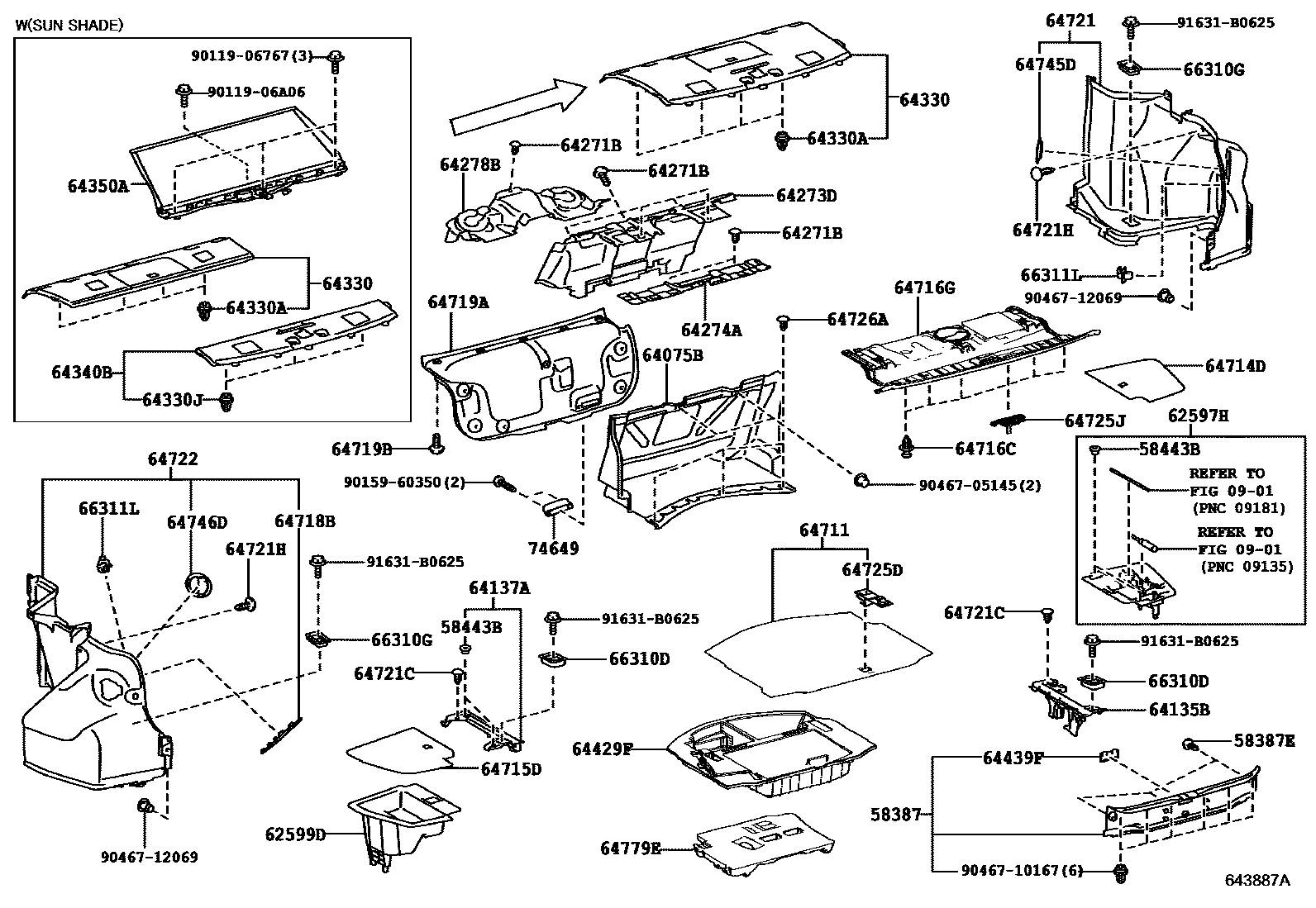

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
0901STANDARD TOOL
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
BLACK,TRIM2#,3#
BULGARIA SPEC,BLACK,TRIM1#,2#,3#; ISRAEL SPEC,BLACK,TRIM1#,2#,3#; RUSSIA SPEC,BLACK,TRIM1#,2#,3#; UKRAINE SPEC,BLACK,TRIM1#,2#,3#
BULGARIA SPEC,BLACK,TRIM1#,2#,3#; ISRAEL SPEC,BLACK,TRIM1#,2#,3#; RUSSIA SPEC,BLACK,TRIM1#,2#,3#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
58443BCUSHION, DECK BOARD, NO.1
64075BCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64135BBRACKET, LUGGAGE COMPARTMENT TRAY, REAR RH
BLACK,TRIM1#,2#,3#
64137ABRACKET, LUGGAGE COMPARTMENT TRAY, REAR LH
BLACK,TRIM1#,2#,3#
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK
BLACK
64273DPAD, ROOM PARTITION, NO.1
64274APAD, ROOM PARTITION, NO.2
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW); SUN SHADE-WITH(BACK WINDOW)
64278BPAD, ROOM PARTITION, NO.3
64330PANEL ASSY, PACKAGE TRAY TRIM
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#
AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#
AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW); SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION; SUN SHADE-WITH(BACK WINDOW); SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#
64350ASHADE ASSY, REAR WINDOW
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW & REAR DOOR WINDOW),BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW)&AUDIO-17SPEAKER & *MAR & NAVIGATION,BLACK,TRIM1#,2#,3#; SUN SHADE-WITH(BACK WINDOW),BLACK,TRIM1#,2#,3#
64429FBOX, LUGGAGE COMPARTMENT TRIM
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM1#,2#,3#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#,2#,3#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM1#,2#,3#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),BLACK,TRIM1#,2#,3#
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),BLACK,TRIM1#,2#,3#
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),BLACK,TRIM1#,2#,3#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64721HCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,2#,3#
64725JHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,2#,3#
64726ACLIP, LUGGAGE TRIM, REAR
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM1#,2#,3#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM1#,2#,3#
64779ETRAY, SPARE WHEEL COVER
BULGARIA SPEC; ISRAEL SPEC; RUSSIA SPEC
66310DHOOK ASSY, ROPE
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
66310GHOOK ASSY, ROPE
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
66311LHOOK,ROPE
BLACK,TRIM1#,2#,3#
BLACK,TRIM1#,2#,3#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
AUTO & EASY CLOSER DOOR-WITH(LUGGAGE & PTL),BLACK,TRIM1#,2#,3#
9011906767
main90119-06767
9011906A06
main90119-06A06
9015960350
main90159-60350
9046705145
main90467-05145
9046710167
main90467-10167
9046712069
main90467-12069
91631B0625
main91631-B0625
49 parts on this diagram · 2 diagrams in section
