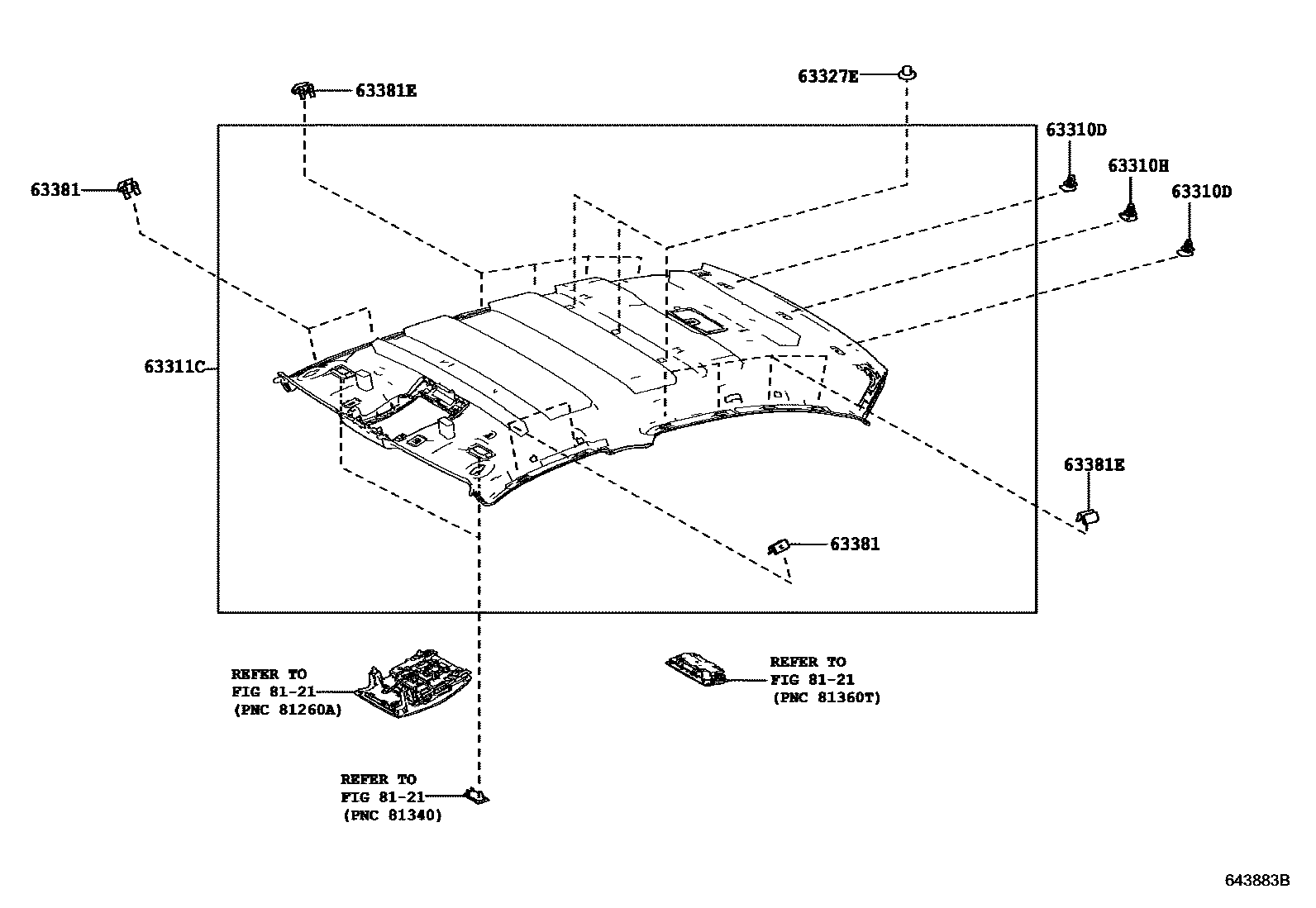

ROOF HEADLINING & SILENCER PAD

0001 1NOMAL ROOF 0002 1MOON ROOF

63310DCLIP, ROOF HEADLINING

main90467-09126×2iURL10201510-201804

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iURL10201510-201804

63311CHEADLINING, ROOF

main63311-30F30-C0supersedes 63311-30F50-C0iURL10201510-201804

MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM1#,2#,3#

63327EFASTENER, ROOF HEADLINING, NO.1

main63327-30070×3iURL10201510-201804

63381RETAINER, HEADLINING, FRONT

main63381-30091×4iURL10201510-201804

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30120×8iURL10201510-201804

8121INTERIOR LAMP

→ Go to FIG 81-21

7 parts on this diagram · 2 diagrams in section
