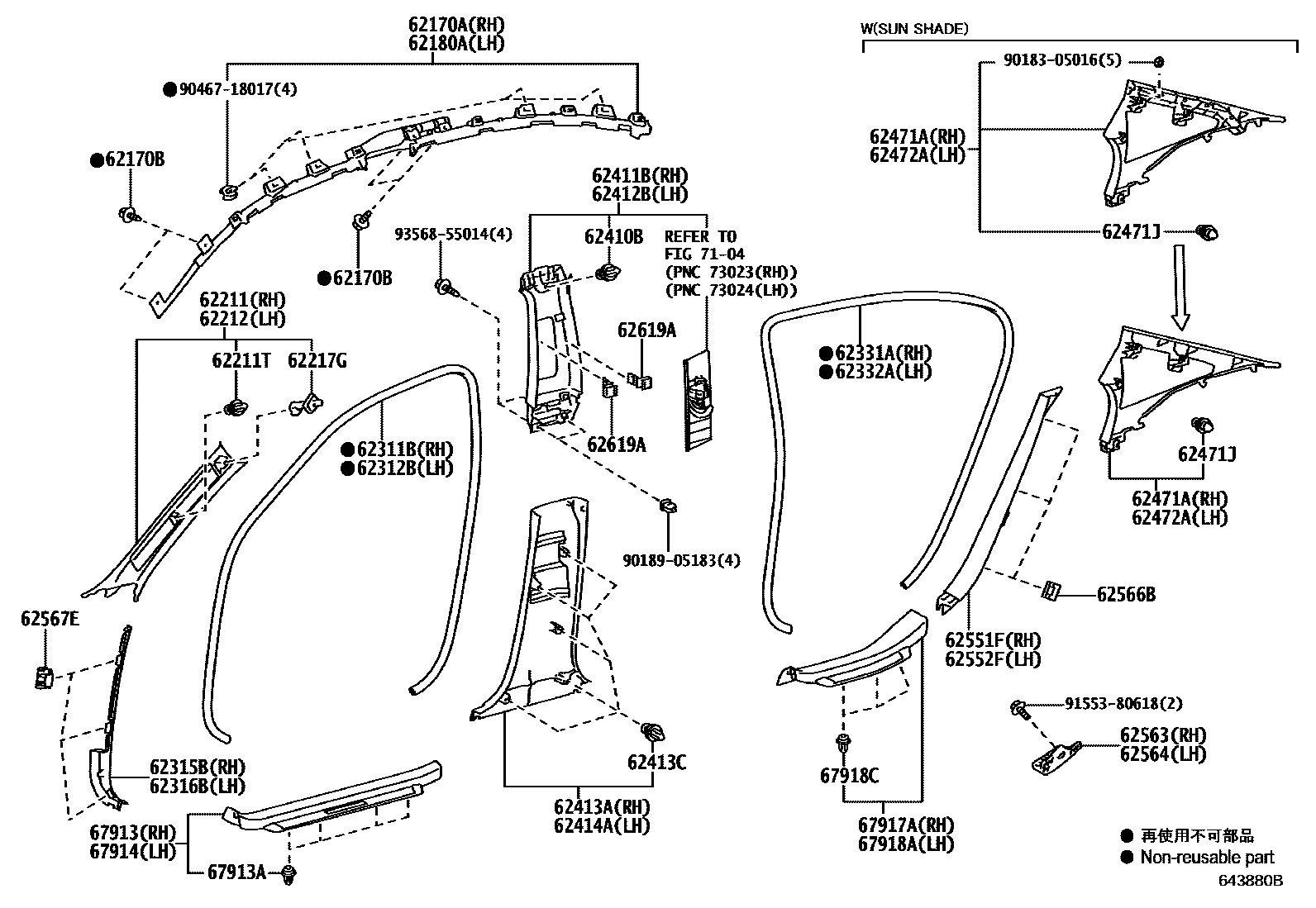

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
BLACK,TRIM1#,2#,3#
62211TCLIP(FOR FRONT PILLAR GARNISH)
COLOR : BLACK
62212GARNISH, FRONT PILLAR, LH
BLACK,TRIM1#,2#,3#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62315BCOVER, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM1#,2#,3#
62316BCOVER, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,2#,3#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM1#,2#,3#
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM1#,2#,3#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,3#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,3#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM1#,2#,3#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM1#,2#,3#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM1#,2#,3#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM1#,2#,3#
62563PROTECTOR, ROCKER PANEL, INNER REAR RH
62564PROTECTOR, ROCKER PANEL, INNER REAR LH
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62619APLATE, SIDE TRIM SET
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,3#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,3#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,3#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
9018305016
main90183-05016
9018905183
main90189-05183
9046718017
main90467-18017
9155380618
main91553-80618
9356855014
main93568-55014
41 parts on this diagram · 1 diagram in section
