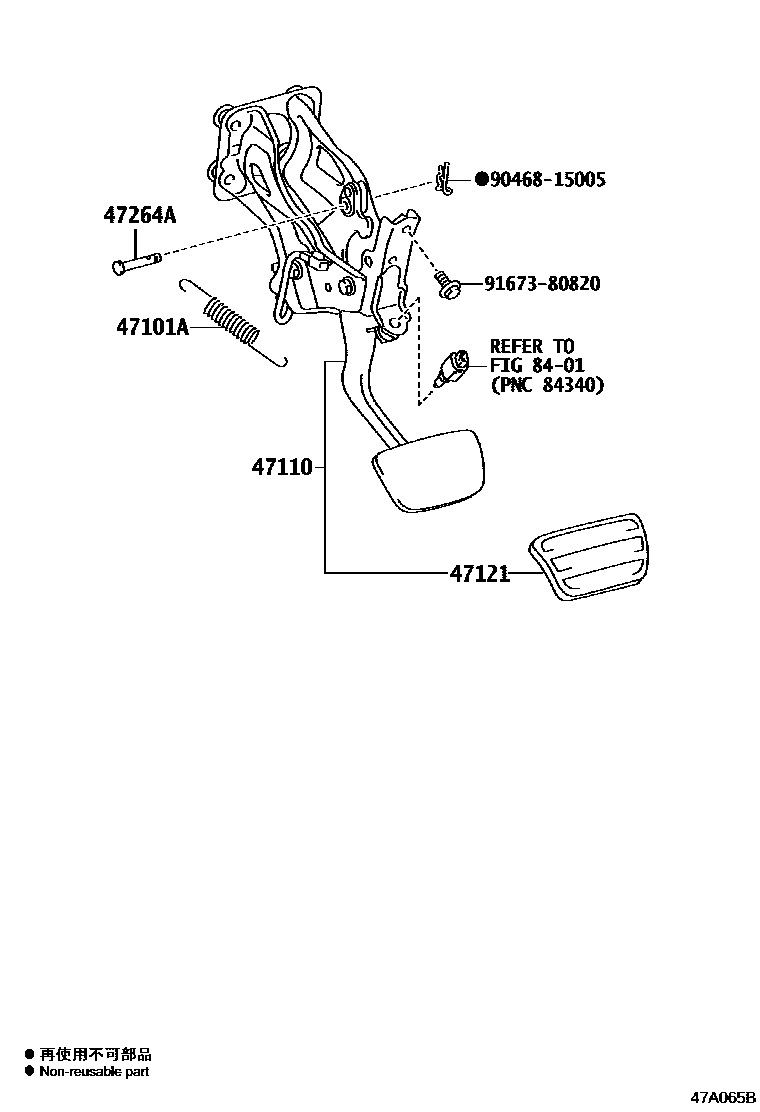

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13009iURL10201510-201804

47110SUPPORT ASSY, BRAKE PEDAL

main47110-30470iURL10..RHD201510-201804

REFER TO PNC 47121

main47110-30480iURL10..LHD201510-201804

REFER TO PNC 47121

47121PAD, BRAKE PEDAL

main47121-24010iURL10201510-201804

47264APIN(FOR PUSH ROD)

main90249-06180iURL10201510-201804

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046815005

main90468-15005

9167380820

main91673-80820
