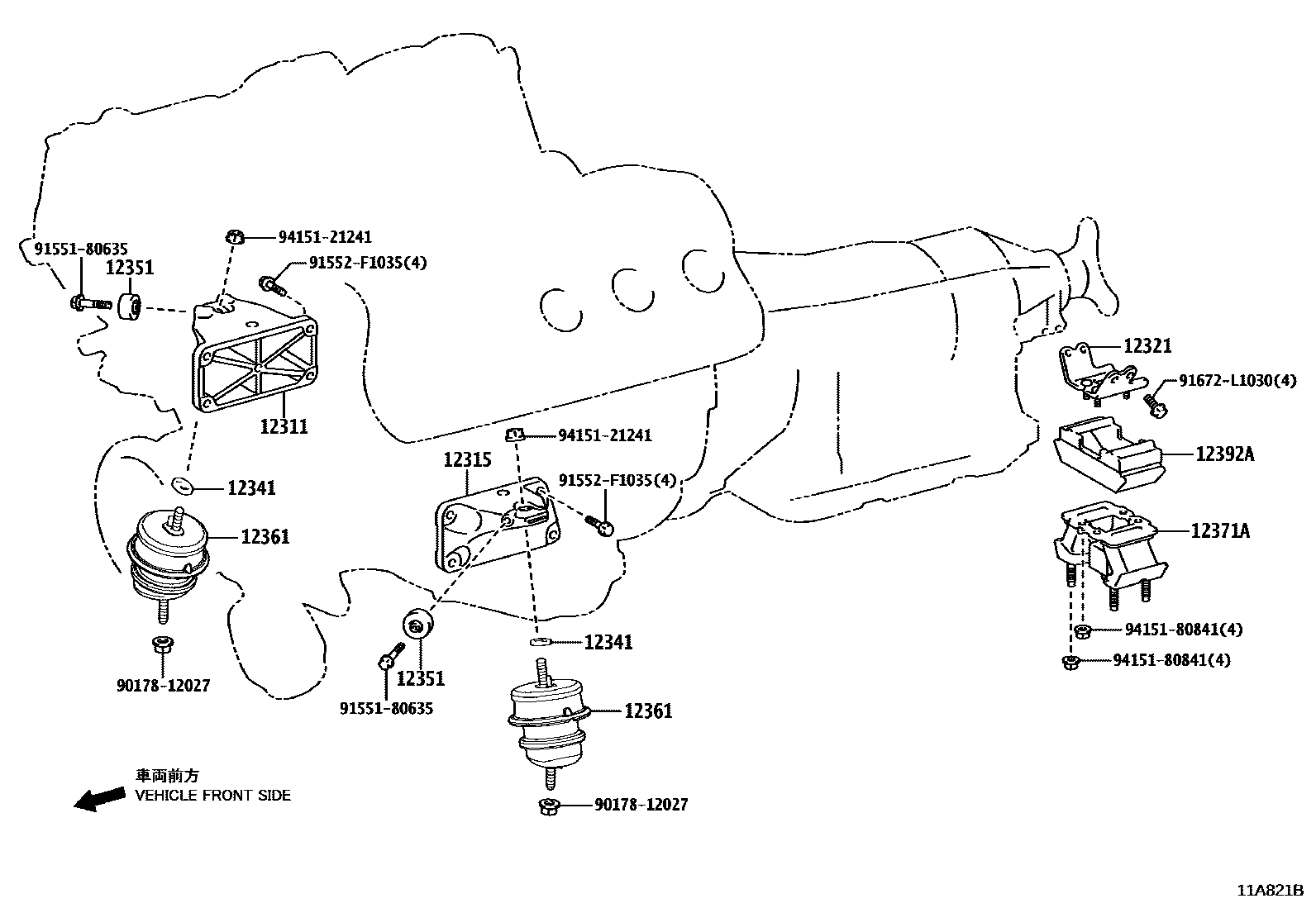

MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-38090i2URGSE..URL10201510-201804

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-38070i2URGSE..URL10201510-201804

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-38020i2URGSE..URL10201510-201804

12341SPACER, ENGINE MOUNTING

main12319-38010i2URGSE..URL10201510-201804

12351DAMPER, ENGINE MOUNTING

main12351-38020i2URGSE..URL10201510-201804

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-38230i2URGSE..URL10201510-201804

sub12361-38320

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-38110i2URGSE..URL10201510-201804

12392AINSULATOR, ENGINE MOUNTING HEAT, REAR

main12392-38020i2URGSE..URL10201510-201804

9017812027

main90178-12027

9155180635

main91551-80635

91552F1035

main91552-F1035

91672L1030

main91672-L1030

9415121241

main94151-21241

9415180841

main94151-80841

14 parts on this diagram · 1 diagram in section
