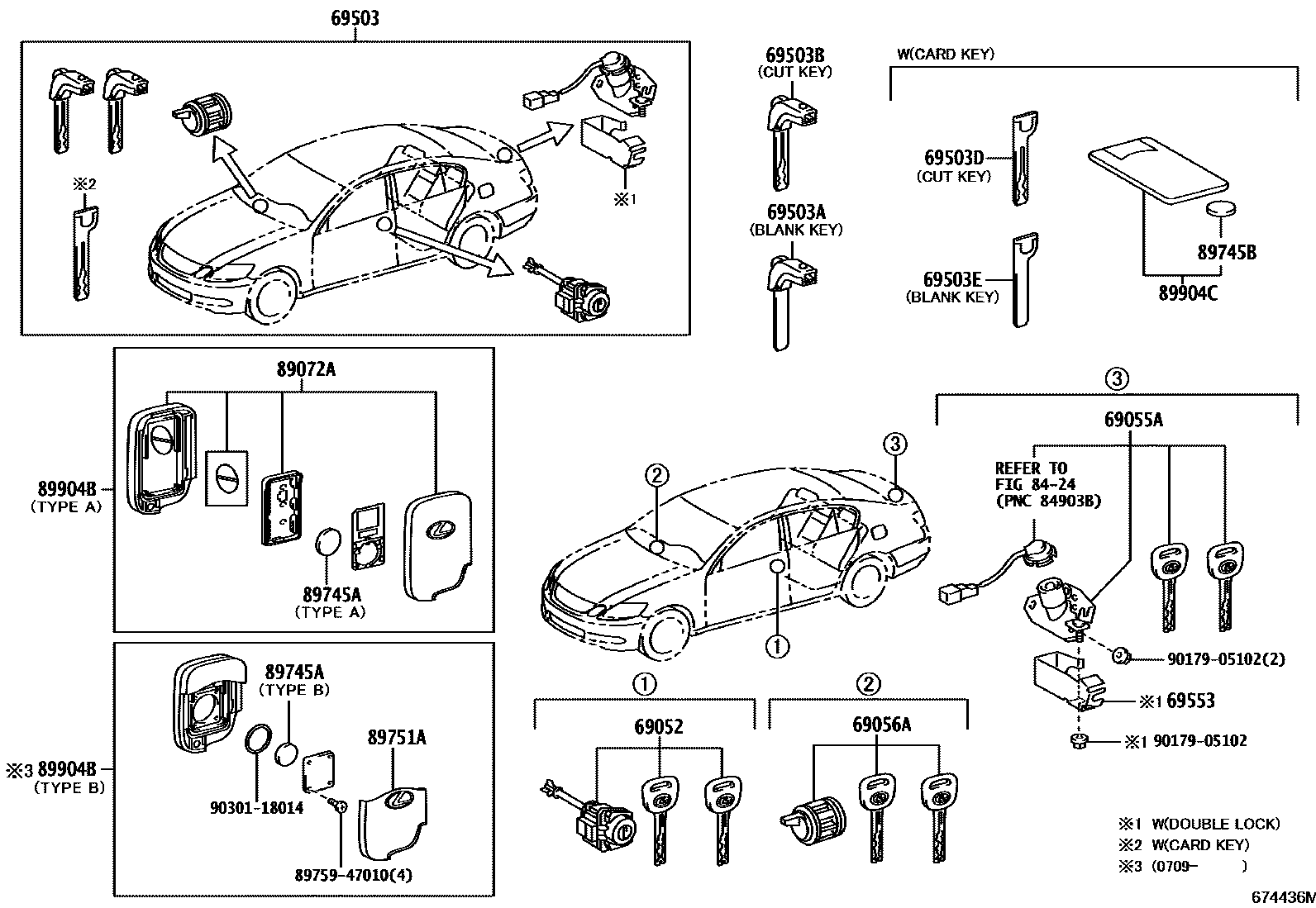

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-30320iGWS191..LHD200709

main69052-48090iGWS191..LHD200602-200709

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-30440iGWS191200602-200709

main69055-50160iGWS191200709-201112

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30250iGWS191200602-200709

main69056-50160iGWS191200709-201112

69503CYLINDER SET, LOCK

main69005-30B90iGWS191..RHD200602-200709

main69005-30C00iGWS191..LHD200602-200709

main69005-30D00iGWS191..RHD200709

sub69005-30D70

main69005-30D10iGWS191..LHD200709

sub69005-30D80

69503AKEY, BLANK

main69515-30300iGWS191200602-200709

main69515-50260iGWS191200709-201112

BLANK KEY

69503BKEY, CUT

main69515-30290iGWS191200602-200709

main69515-50240iGWS191200709-201112

MASTER KEY

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-30350iGWS191200905-201112

MASTER KEY

main69515-50270iGWS191200809-200904

BLANK KEY

sub69515-30350

69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER

main69553-50010iGWS191..LHD200602-200709

DOOR LOCK-FRONT,2STEP,DOUBLE LOCK

8424

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

89745ABATTERY, TRANSMITTER

main89745-52020iGWS191200602-200709

TYPE A:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

HONG KONG SPEC,TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

NEW ZEALAND SPEC,TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

TAIWAN SPEC,TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

AUSTRALIA SPEC,TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200809-201112

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ,TYPE B:REFER ILLUST.

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-52030iGWS191..RHD200709-200809

AUSTRALIA SPEC

main89745-52030iGWS191..RHD200709-200809

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ

main89745-52030iGWS191..RHD200709-200809

TYPE B:REFER ILLUST.

main89745-52030iGWS191..RHD200709-200809

HONG KONG SPEC

main89745-52030iGWS191..RHD200709-200809

SINGAPORE SPEC

main89745-52030iGWS191..RHD200709-200809

NEW ZEALAND SPEC

main89745-52030iGWS191..RHD200709-200809

TAIWAN SPEC

89751ACOVER, TRANSMITTER HOUSING

main89751-30130iGWS191..LHD200909

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ

main89751-30130iGWS191..RHD200909

SINGAPORE SPEC

main89751-30130iGWS191..RHD200909

NEW ZEALAND SPEC

main89751-30130iGWS191..RHD200909

TAIWAN SPEC

main89751-30130iGWS191..RHD200909

AUSTRALIA SPEC

main89751-30130iGWS191..RHD200909

HONG KONG SPEC

main89751-50250iGWS191..LHD200709-200909

AUSTRALIA SPEC

main89751-50250iGWS191200709-200909

HONG KONG SPEC

main89751-50250iGWS191200709-200909

SINGAPORE SPEC

main89751-50250iGWS191200709-200909

NEW ZEALAND SPEC

main89751-50250iGWS191200709-200909

TAIWAN SPEC

main89751-50250iGWS191200709-200909

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30310iGWS191200602-200607

sub89904-30311

main89904-30490iGWS191200607-200709

main89904-30640iGWS191..RHD200909-201112

TAIWAN SPEC,TYPE B:REFER ILLUST.

main89904-30640iGWS191..RHD200909-201112

NEW ZEALAND SPEC,TYPE B:REFER ILLUST.

main89904-30640iGWS191..RHD200909-201112

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main89904-30640iGWS191..RHD200909-201112

HONG KONG SPEC,TYPE B:REFER ILLUST.

main89904-30640iGWS191..RHD200909-201112

TYPE B:REFER ILLUST.

main89904-30640iGWS191..RHD200909-201112

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ,TYPE B:REFER ILLUST.

main89904-30640iGWS191..RHD200909-201112

AUSTRALIA SPEC,TYPE B:REFER ILLUST.

main89904-50C40iGWS191..LHD200709-200809

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ,TYPE B:REFER ILLUST.

main89904-50C40iGWS191200709-200809

TYPE B:REFER ILLUST.

main89904-50C40iGWS191200709-200809

HONG KONG SPEC,TYPE B:REFER ILLUST.

main89904-50C40iGWS191200709-200809

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main89904-50C40iGWS191200709-200809

NEW ZEALAND SPEC,TYPE B:REFER ILLUST.

main89904-50C40iGWS191200709-200809

TAIWAN SPEC,TYPE B:REFER ILLUST.

main89904-50C40iGWS191200709-200809

AUSTRALIA SPEC,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

WIRELESS DOOR LOCK-WITH(PANIC),433MHZ,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

AUSTRALIA SPEC,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

TAIWAN SPEC,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

NEW ZEALAND SPEC,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

SINGAPORE SPEC,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

HONG KONG SPEC,TYPE B:REFER ILLUST.

main89904-50D70iGWS191..RHD200809-200909

TYPE B:REFER ILLUST.

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

9017905102

main90179-05102

9030118014

main90301-18014

19 parts on this diagram · 2 diagrams in section
