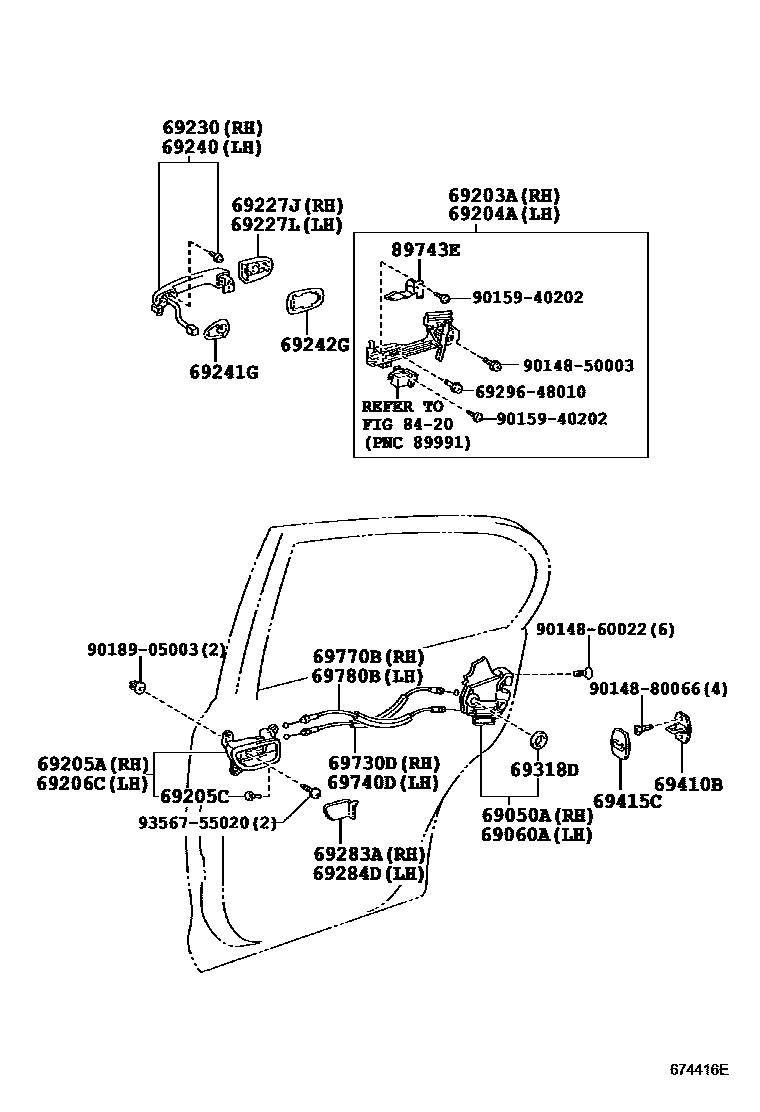

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
AUSTRALIA SPEC
NEW ZEALAND SPEC
DOOR LOCK-FRONT,2STEP,DOUBLE LOCK
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
NEW ZEALAND SPEC
AUSTRALIA SPEC
DOOR LOCK-FRONT,2STEP,DOUBLE LOCK
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
FROSTY PEARL MC.,1G5
BLACK,212
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
JADE GREEN ME.,6V0
DEEP PERIDOT MC.,6V6
PREMIUM LT.BLUE.,8T9
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
8420
89743EBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
6929648010SCREW, DOOR INSIDE HANDLE
main69296-48010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9018905003
main90189-05003
9356755020
main93567-55020
31 parts on this diagram · 1 diagram in section
