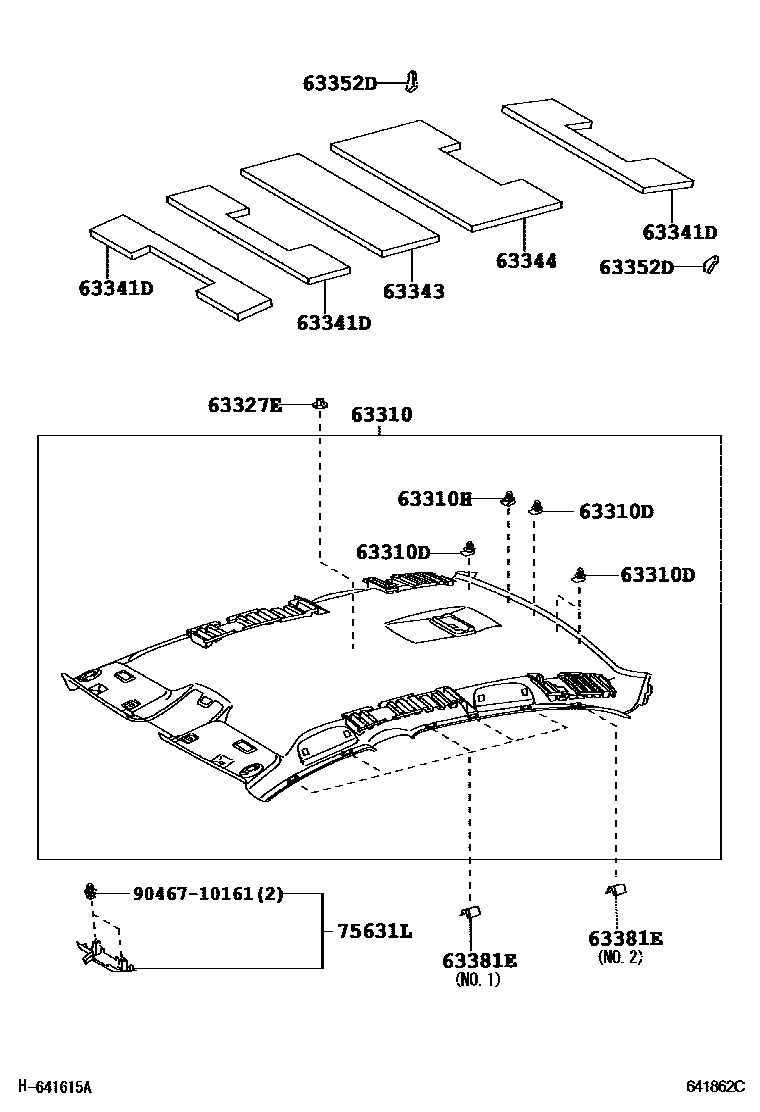

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63311-30511-A0supersedes 63311-30491-A0i200809-200909

ISRAEL SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW IVORY,TRIM0#; ISRAEL SPEC&MOON ROOF-WITH,NEW IVORY,TRIM0#; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW IVORY,TRIM0#; RUSSIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW IVORY,TRIM0#; RUSSIA SPEC&MOON ROOF-WITH,NEW IVORY,TRIM0#

main63311-30511-A1i201007-201112

CHINA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&SUN SHADE-WITH,IVORY,TRIM02; CHINA SPEC&MOON ROOF-WITH&SUN SHADE-WITH,IVORY,TRIM02; KAZAKHSTAN SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM02; KAZAKHSTAN SPEC&MOON ROOF-WITH,IVORY,TRIM02; SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM02; SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&MOON ROOF-WITH,IVORY,TRIM02

main63311-30511-A2supersedes 63311-30491-A2i200909-201112

CROATIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; CROATIA SPEC&MOON ROOF-WITH,WATER WHITE,TRIM04; ISRAEL SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; ISRAEL SPEC&MOON ROOF-WITH,WATER WHITE,TRIM04; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; MOON ROOF-WITH,WATER WHITE,TRIM04; RUSSIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; RUSSIA SPEC&MOON ROOF-WITH,WATER WHITE,TRIM04; UKRAINE SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; UKRAINE SPEC&MOON ROOF-WITH,WATER WHITE,TRIM04

main63311-30511-B0supersedes 63311-30491-B1i200602-200709

MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW GRAY,TRIM1#,2#; MOON ROOF-WITH,NEW GRAY,TRIM1#,2#; RUSSIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW GRAY,TRIM1#,2#; RUSSIA SPEC&MOON ROOF-WITH,NEW GRAY,TRIM1#,2#

main63311-30511-B1supersedes 63311-30491-B1i200809-201112

ISRAEL SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#; ISRAEL SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#; RUSSIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#; RUSSIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#

main63311-30521-A0supersedes 63311-30501-A0i200809-200909

HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW IVORY,TRIM0#; HONG KONG SPEC&MOON ROOF-WITH,NEW IVORY,TRIM0#; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW IVORY,TRIM0#

main63311-30521-A1supersedes 63311-30501-A1i200909-201112

HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM02; HONG KONG SPEC&MOON ROOF-WITH,IVORY,TRIM02; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM02; MOON ROOF-WITH,IVORY,TRIM02

main63311-30521-A2supersedes 63311-30501-A2i200909-201112

HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; HONG KONG SPEC&MOON ROOF-WITH,WATER WHITE,TRIM04; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04; MOON ROOF-WITH,WATER WHITE,TRIM04

main63311-30521-B0supersedes 63311-30501-B1i200602-200709

MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),NEW GRAY,TRIM1#,2#; MOON ROOF-WITH,NEW GRAY,TRIM1#,2#

main63311-30521-B1supersedes 63311-30501-B1i200809-201112

HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#; HONG KONG SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#; MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#

main63311-30A50-A0supersedes 63311-30491-A0i200809-200909

CHINA SPEC,NEW IVORY,TRIM0#

main63311-30A50-A1i200909-201007

CHINA SPEC,IVORY,TRIM02

main63311-30A50-A2i200909-201007

CHINA SPEC,WATER WHITE,TRIM04

main63311-30A50-B1i200809-201007

CHINA SPEC,LT.GRAY,TRIM1#,2#

main63311-30A60-A0supersedes 63311-30491-A0i200809-200909

CHINA SPEC&MOON ROOF-WITH,NEW IVORY,TRIM0#

main63311-30A60-A1i200909-201007

CHINA SPEC&MOON ROOF-WITH,IVORY,TRIM02

main63311-30A60-A2i200909-201007

CHINA SPEC&MOON ROOF-WITH,WATER WHITE,TRIM04

main63311-30A60-B1i200809-201007

CHINA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#

63310DCLIP, ROOF HEADLINING

main90467-09126×4i200602-200709

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181i200602-200709

63327EFASTENER, ROOF HEADLINING, NO.1

main63327-30070i200602-200709

63341DPAD, ROOF SILENCER, FRONT

main63341-30290i201007

CHINA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&SUN SHADE-WITH; CHINA SPEC&MOON ROOF-WITH&SUN SHADE-WITH; KAZAKHSTAN SPEC&MOON ROOF-WITH; KAZAKHSTAN SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR); SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&MOON ROOF-WITH; SERBIA,BOSNIA & HERZEGOVINA,BELARUS SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR)

63343PAD, ROOF SILENCER, NO.3

main63345-30170i200602-200709

63344PAD, ROOF SILENCER, NO.4

main63343-30250i200709

63352DPAD, ROOF HEADLINING, NO.2

main63352-30060×2i200709

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30091×10i200603-200709

NO.1

main63381-30092×2i200709

NO.2

75631LGARNISH, ROOF TOP, FRONT

main75631-30070-A0supersedes 75631-30060-A0i200709-200809

IVORY,TRIM0#

main75631-30070-B1supersedes 75631-30060-B1i200709-200809

LT.GRAY,TRIM1#,2#

main75631-30070-A1supersedes 75631-30060-A1i200909-201112

INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM02

main75631-30070-A2supersedes 75631-30060-A2i200909-201112

INTERMITTENT WIPER-AUTO(RAIN SENSOR),WATER WHITE,TRIM04

main75631-30070-B0supersedes 75631-30060-B0i200602-200709

INTERMITTENT WIPER-AUTO(RAIN SENSOR),GRAY,TRIM1#,2#

9046710161

main90467-10161

11 parts on this diagram · 2 diagrams in section
