CONSOLE BOX & BRACKET

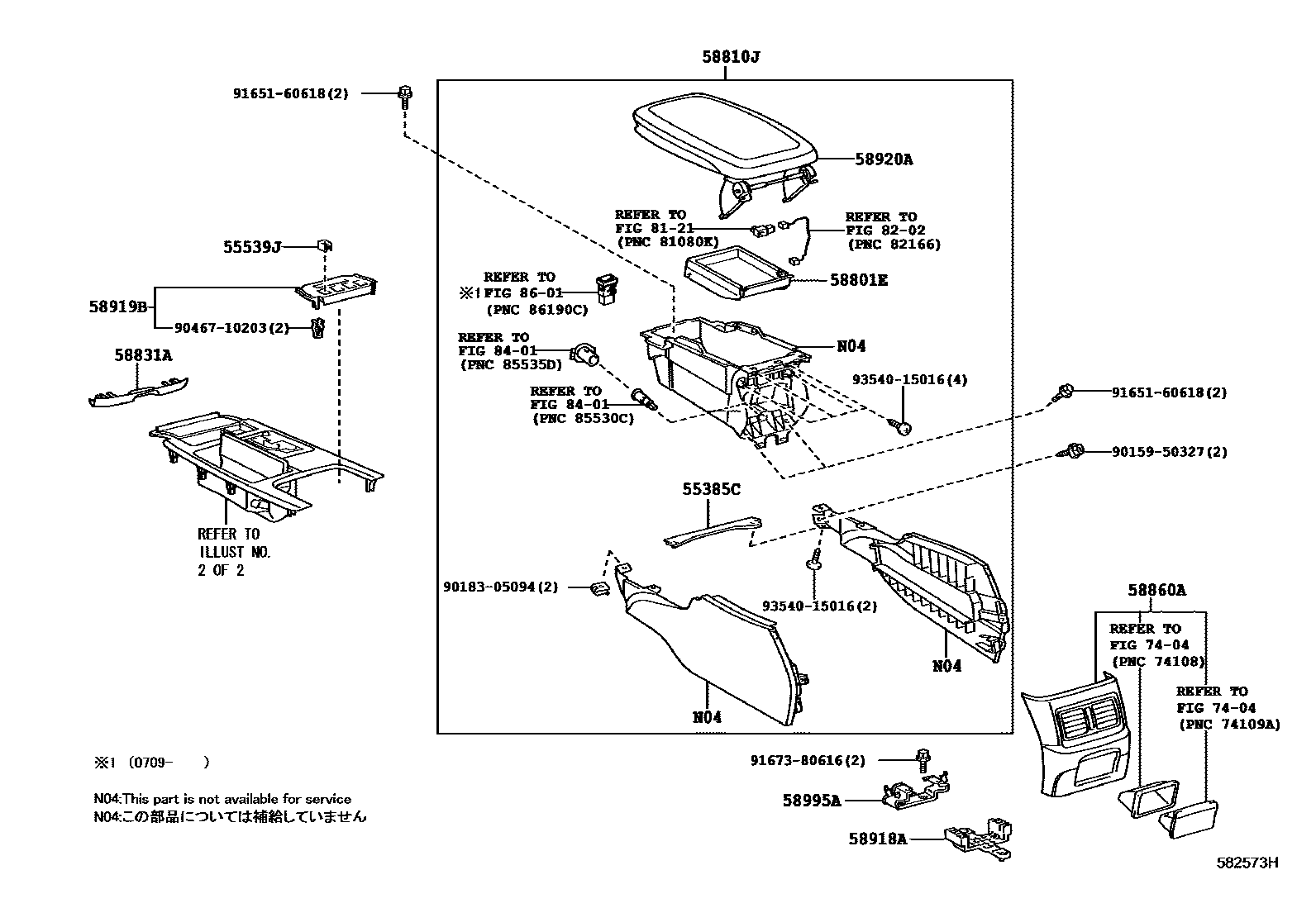

Parts diagram
55385CBRACKET, CONSOLE BOX MOUNTING, NO.5
main55385-30080i200602-200608
sub55385-30081
main55385-30081i200609-200709
55539JCOVER, SPARE SWITCH HOLE
main55539-30250i200602-200709
58801EBOX SUB-ASSY, CONSOLE, UPPER
main58801-30270i200602-200704
sub58801-30271
main58801-30271i200705-200709
58810JBOX ASSY, CONSOLE
main58810-30A40-C1i200602-200704
BLACK,TRIM2#
sub58810-30A42
main58810-30A42-C1i200705-200709
BLACK,TRIM2#
main58810-30B40-C0i200602-200704
BLACK,TRIM2#
sub58810-30B42
main58810-30B42-C0i200705-200709
BLACK,TRIM2#
main58810-30B60-A0i200709-200806
IVORY,TRIM0#
sub58810-30B61
main58810-30B60-B1i200709-200806
LT.GRAY,TRIM1#
sub58810-30B61
main58810-30B60-C0i200709-200806
BLACK,TRIM2#
sub58810-30B61
main58810-30B70-A0i200806-200807
IVORY,TRIM0#
sub58810-30B71
main58810-30B70-B0i200806-200807
LT.GRAY,TRIM1#
sub58810-30B71
main58810-30B70-C0i200806-200807
BLACK,TRIM2#
sub58810-30B71
main58810-30B71-A0i200808-200909
IVORY,TRIM0#
main58810-30B71-B0i200808-200909
LT.GRAY,TRIM1#
main58810-30B71-C0i200808-200909
BLACK,TRIM2#
main58810-30B72-A2i200909-201112
IVORY,TRIM0#
main58810-30B72-B1i200909-201112
LT.GRAY,TRIM1#
main58810-30B72-C1i200909-201112
BLACK,TRIM2#
main58810-30C00-A0i200709-200806
IVORY,TRIM0#
sub58810-30C01
main58810-30C00-B1i200709-200806
LT.GRAY,TRIM1#
sub58810-30C01
main58810-30C00-C0i200709-200806
BLACK,TRIM2#
sub58810-30C01
main58810-30C10-A0i200806-200807
IVORY,TRIM0#
sub58810-30C11
main58810-30C10-B0i200806-200807
LT.GRAY,TRIM1#
sub58810-30C11
main58810-30C10-C0i200806-200807
BLACK,TRIM2#
sub58810-30C11
main58810-30C11-A0i200808-200909
IVORY,TRIM0#
main58810-30C11-B0i200808-200909
LT.GRAY,TRIM1#
main58810-30C11-C0i200808-200909
BLACK,TRIM2#
main58810-30C12-A2i200909-201112
IVORY,TRIM0#
main58810-30C12-B1i200909-201112
LT.GRAY,TRIM1#
main58810-30C12-C1i200909-201112
BLACK,TRIM2#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
main58831-30180-C0i200602-200709
BLACK,TRIM1#,2#
main58831-30180-C0i200709-201112
BLACK,TRIM04,1#,2#
main58831-30180-E0i200709-201112
ORCHID BROWN,TRIM00,01,02
main58831-30180-E0i200602-200709
ORCHID BROWN,TRIM0#
main58831-30190-C0i200602-200709
BLACK,TRIM1#,2#
main58831-30190-C0i200709-201112
BLACK,TRIM04,1#,2#
main58831-30190-E0i200602-200709
ORCHID BROWN,TRIM0#
main58831-30190-E0i200709-201112
ORCHID BROWN,TRIM00,01,02
58860AREGISTER ASSY, CONSOLE BOX
main58860-30040-A0i200602-200709
IVORY,TRIM0#
sub58860-30041
main58860-30040-B0i200602-200709
GRAY,TRIM1#
sub58860-30041
main58860-30040-C0i200602-200709
BLACK,TRIM2#
sub58860-30041
main58860-30041-A0i200709-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM00,01
sub58860-30041
main58860-30041-A0i200709-200909
IVORY,TRIM0#
sub58860-30041
main58860-30041-A1i200909-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM02
sub58860-30041
main58860-30041-A1i200909-201112
IVORY,TRIM0#
sub58860-30041
main58860-30041-B1i200709-201112
LT.GRAY,TRIM1#
sub58860-30041
main58860-30041-B1i200709-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
sub58860-30041
main58860-30041-C0i200709-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM04,2#
sub58860-30041
main58860-30041-C0i200709-201112
BLACK,TRIM2#
sub58860-30041
58918ABRACKET, BOX SUPPORT
main58918-30070i200602-200709
58919BPLATE, CONSOLE BOX
main58919-30040i200602-200709
main58919-30050i200709-200806
58920AARMREST ASSY, REAR CONSOLE
main58920-30140-A0i200709-200806
NEW IVORY,TRIM0#
sub58920-30141
main58920-30140-B2i200709-200806
LT.GRAY,TRIM1#
sub58920-30141
main58920-30140-C0i200709-200806
BLACK,TRIM2#
sub58920-30141
main58920-30150-A0i200806-200807
IVORY,TRIM0#
sub58920-30151
main58920-30150-B0i200806-200807
LT.GRAY,TRIM1#
sub58920-30151
main58920-30150-C1i200602-200807
BLACK,TRIM2#
sub58920-30151
main58920-30151-A0i200808-200909
IVORY,TRIM0#
sub58920-30151
main58920-30151-A2i200909-201112
IVORY,TRIM0#
sub58920-30151
main58920-30151-B0i200808-200909
LT.GRAY,TRIM1#
sub58920-30151
main58920-30151-B1i200909-201112
LT.GRAY,TRIM1#
sub58920-30151
main58920-30151-C1i200808-200909
BLACK,TRIM2#
sub58920-30151
main58920-30151-C2i200909-201112
BLACK,TRIM2#
sub58920-30151
main58920-30201-A0i200709-200806
NEW IVORY,TRIM0#
sub58920-30202
main58920-30201-B2i200709-200806
LT.GRAY,TRIM1#
sub58920-30202
main58920-30201-C0i200709-200806
BLACK,TRIM2#
sub58920-30202
main58920-30210-C0i200602-200709
BLACK,TRIM2#
sub58920-30211
main58920-30211-A0i200806-200807
IVORY,TRIM0#
sub58920-30212
main58920-30211-B0i200806-200807
LT.GRAY,TRIM1#
sub58920-30212
main58920-30211-C0i200806-200807
BLACK,TRIM2#
sub58920-30212
main58920-30212-A0i200808-200909
IVORY,TRIM0#
sub58920-30212
main58920-30212-A2i200909-201112
IVORY,TRIM0#
sub58920-30212
main58920-30212-B0i200808-200909
LT.GRAY,TRIM1#
sub58920-30212
main58920-30212-B1i200909-201112
LT.GRAY,TRIM1#
sub58920-30212
main58920-30212-C0i200808-200909
BLACK,TRIM2#
sub58920-30212
main58920-30212-C1i200909-201112
BLACK,TRIM2#
sub58920-30212
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-30210i200602-200709
7404
8121
8202
8401
8601
9015950327
main90159-50327
9018305094
main90183-05094
9046710203
main90467-10203
9165160618
main91651-60618
9167380616
main91673-80616
9354015016
main93540-15016

21 parts on this diagram · 3 diagrams in section
