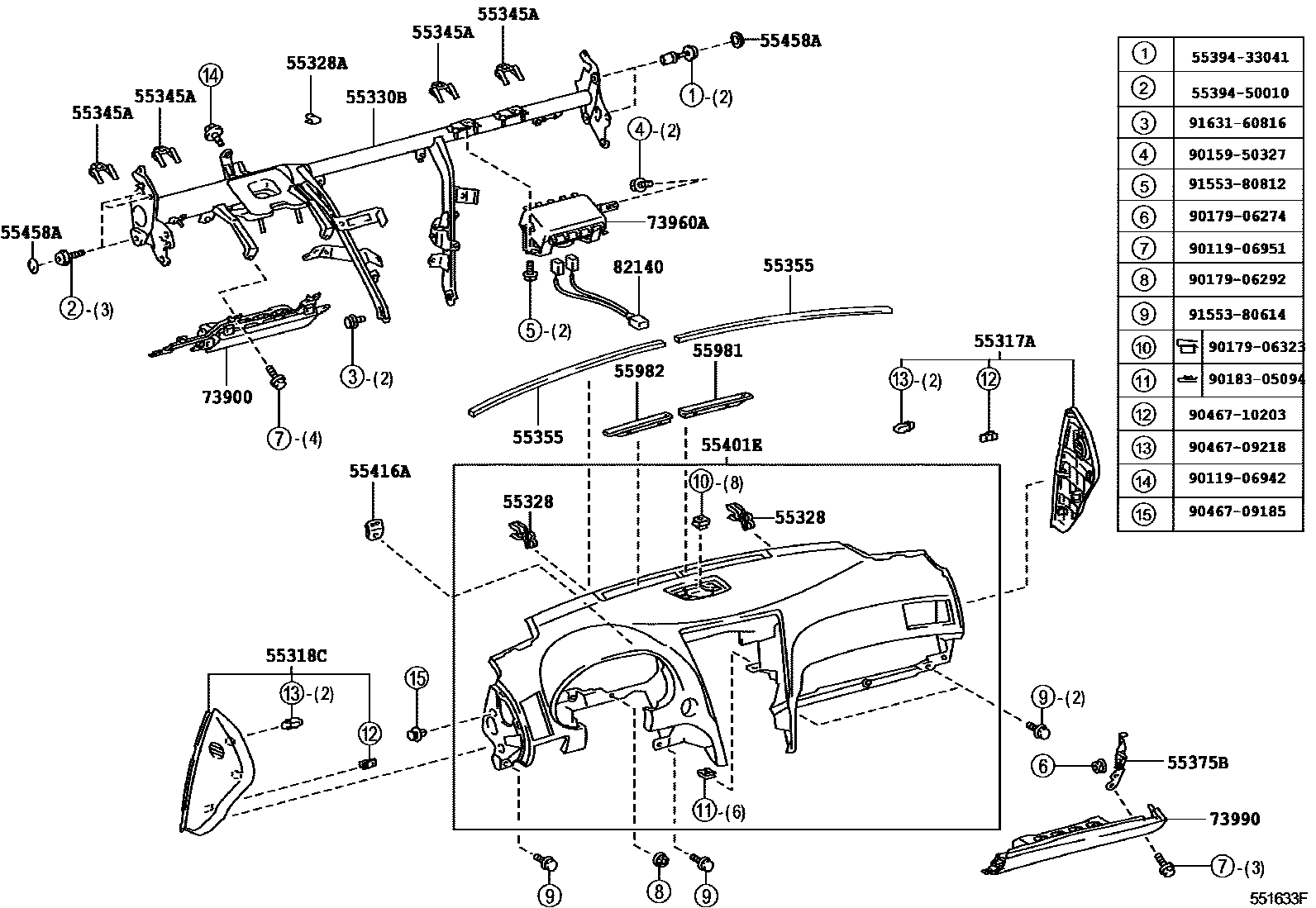

INSTRUMENT PANEL & GLOVE COMPARTMENT
55317APANEL, INSTRUMENT SIDE, RH
55318CPANEL, INSTRUMENT SIDE, LH
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM04,1#,2#
ORCHID BROWN,TRIM00,01,02
55416ARETAINER, METER HOOD, NO.1
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
82140WIRE ASSY, INSTRUMENT PANEL
5539433041BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-33041
5539450010BRACKET, INSTRUMENT PANEL TO PEDAL
main55394-50010
9011906942
main90119-06942
9011906951
main90119-06951
9015950327
main90159-50327
9017906274
main90179-06274
9017906292
main90179-06292
9017906323
main90179-06323
9018305094
main90183-05094
9046709185
main90467-09185
9046709218
main90467-09218
9046710203
main90467-10203
9155380614
main91553-80614
9155380812
main91553-80812
9163160816
main91631-60816
32 parts on this diagram · 8 diagrams in section
