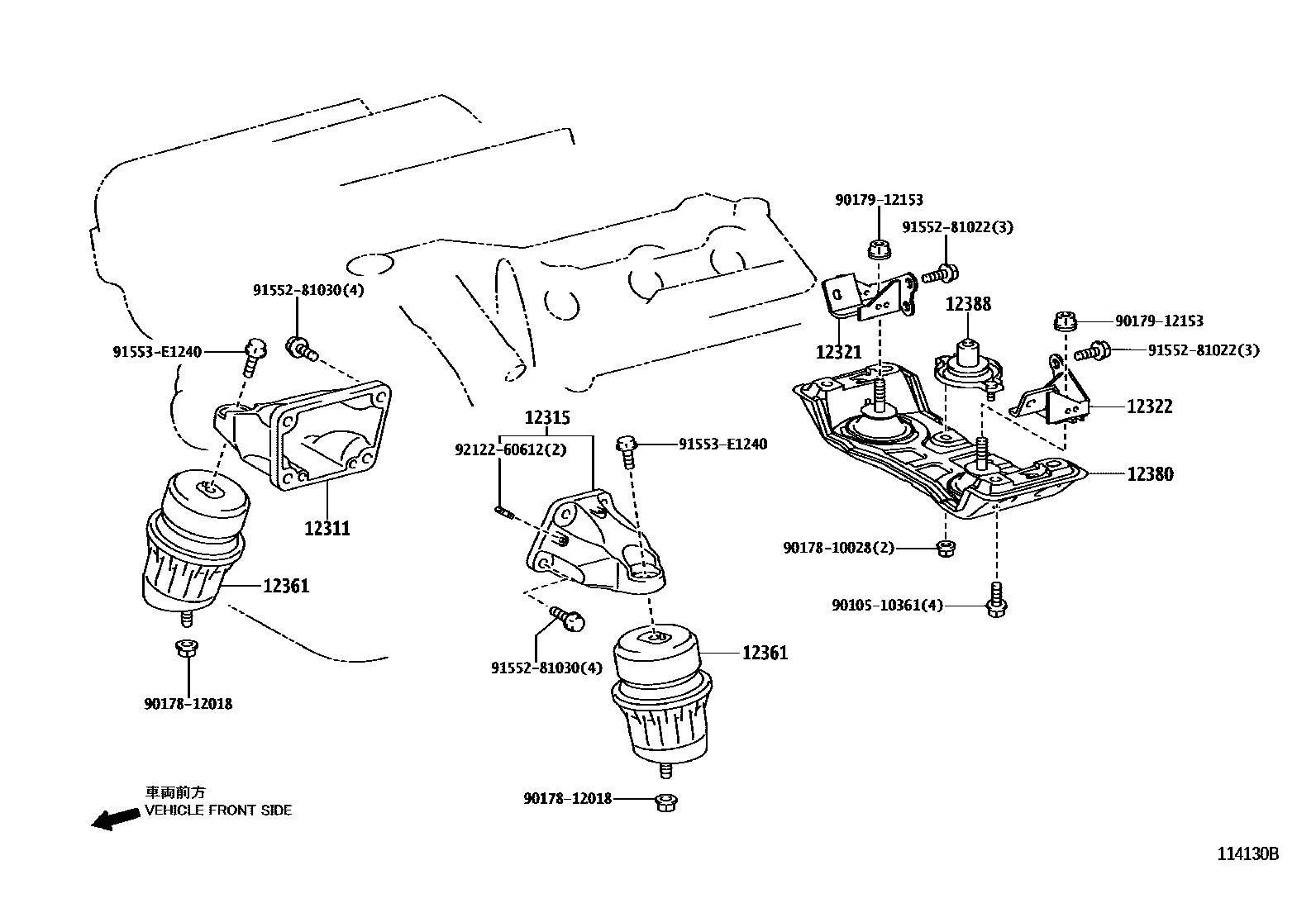

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31040i2GRFSE..GWS191200602-200709

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-31010i2GRFSE..GWS191200602-200709

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-31110i2GRFSE..GWS191200602-200709

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12325-31030i2GRFSE..GWS191200602-200709

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31100×2i2GRFSE..GWS191200602-200709

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-31040i2GRFSE..GWS191200602-200709

main12380-31041i2GRFSE..GWS191200709-201112

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-31010i2GRFSE..GWS191200602-200709

9010510361

main90105-10361

9017810028

main90178-10028

9017812018

main90178-12018

9017912153

main90179-12153

9155281022

main91552-81022

9155281030

main91552-81030

91553E1240

main91553-E1240

9212260612

main92122-60612

15 parts on this diagram · 2 diagrams in section
