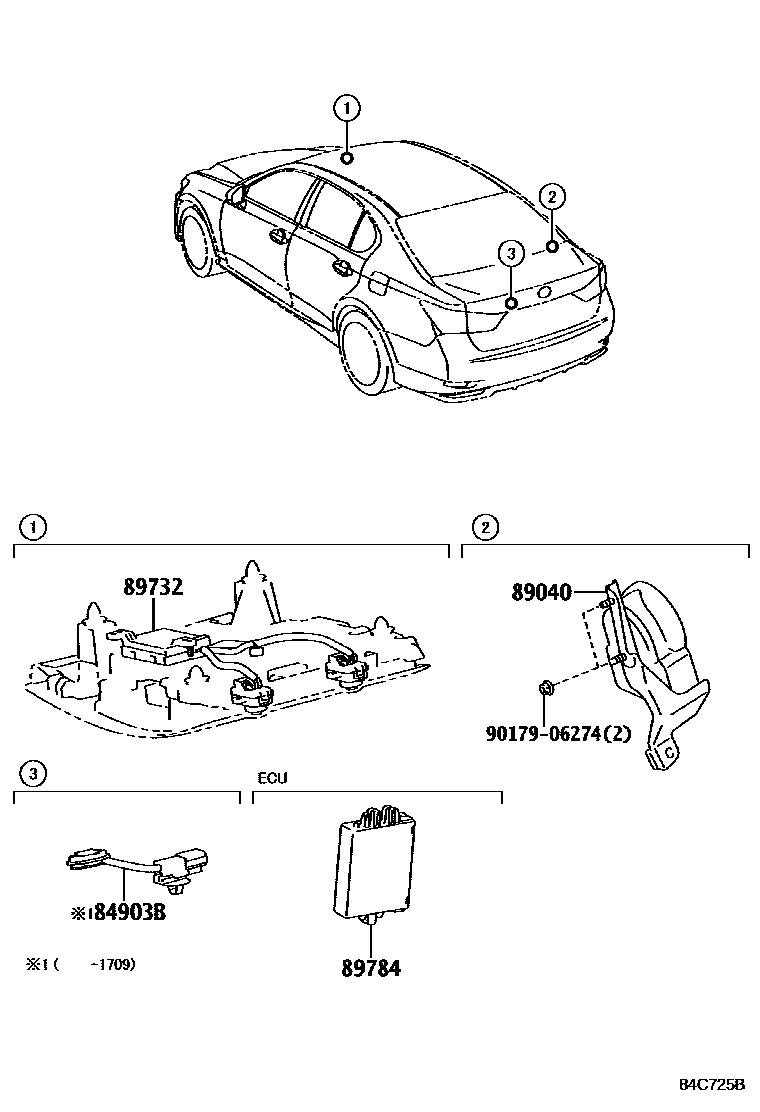

ANTI-THEFT DEVICE

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-30090iARL10,AWL10,GRL16,GWL10201510-201709

89040SIREN ASSY, THEFT WARNING

main89040-30020iAWL10,GRL1#,GWL10201201-201510

89732SENSOR, THEFT WARNING RADAR

main89732-30230iGRL1#,GWL10201201-201309

main89732-30231iAWL10,GRL1#,GWL10; AWL10,GRL11,GWL10..LHD..STD; AWL10..LHD..ECO;GRL11,GWL10..LHD201309-201510

ANTI-THEFT SYSTEM-WITHOUT; ISRAEL SPEC

89784COMPUTER, IMMOBILIZER CODE

main89784-30070iAWL10,GRL1#,GWL10201409-201510

main89784-33030iAWL10,GRL1#,GWL10201201-201409

9017906274

main90179-06274

5 parts on this diagram · 1 diagram in section
