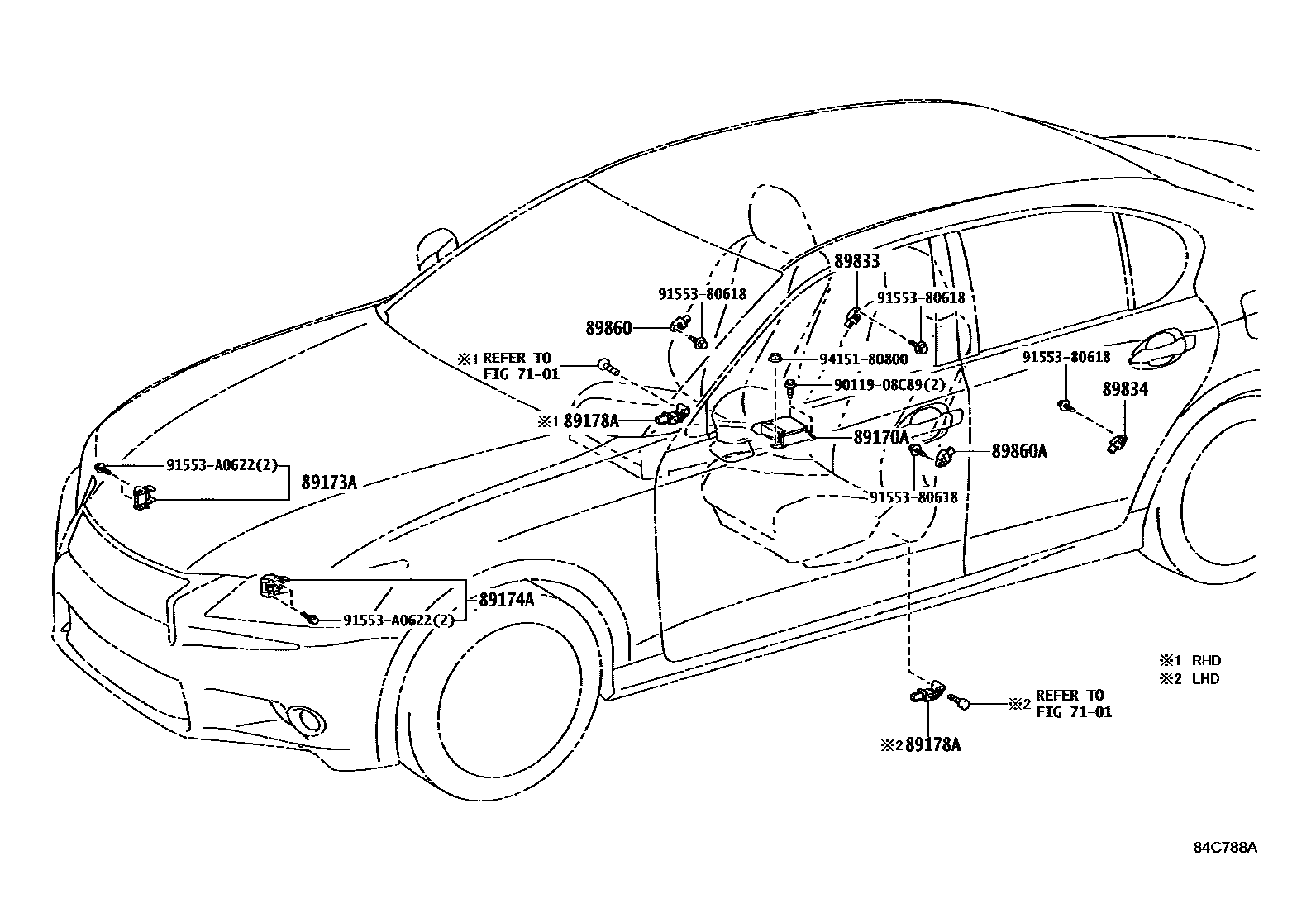

AIR BAG

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

89170ACOMPUTER ASSY, AIRBAG

main89170-30B00iGRL1#..LHD201201-201510

main89170-30C00iAWL10,GWL10..LHD201203-201510

main89170-30C10iAWL10,GWL10..RHD201203-201510

main89170-30C40iARL10,GRL16201510-201809

main89170-30C80iGRL11..RHD201203-201510

main89170-30F60iAWL10,GWL10..LHD201510-201809

main89170-30F70iAWL10,GWL10..RHD201510-201809

89173ASENSOR, AIRBAG, FRONT RH

main89173-59286iAWL10,GRL1#,GWL10201201-201510

89174ASENSOR, AIRBAG, FRONT LH

main89173-59286iAWL10,GRL1#,GWL10201201-201510

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iARL10,AWL10,GRL16,GWL10201510-201809

89833SENSOR, AIRBAG, REAR RH

main89831-30040iAWL10,GRL1#,GWL10201201-201310

main89831-30050iAWL10,GRL1#,GWL10201311-201510

89834SENSOR, AIRBAG, REAR LH

main89831-30040iAWL10,GRL1#,GWL10201201-201310

main89831-30050iAWL10,GRL1#,GWL10201311-201510

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-68010iGRL1#,GWL10201201-201308

main89831-68030iAWL10,GRL1#,GWL10201309-201510

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-68010iGRL1#,GWL10201201-201308

main89831-68030iAWL10,GRL1#,GWL10201309-201510

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
