EPC Data

FRONT SEAT & SEAT TRACK

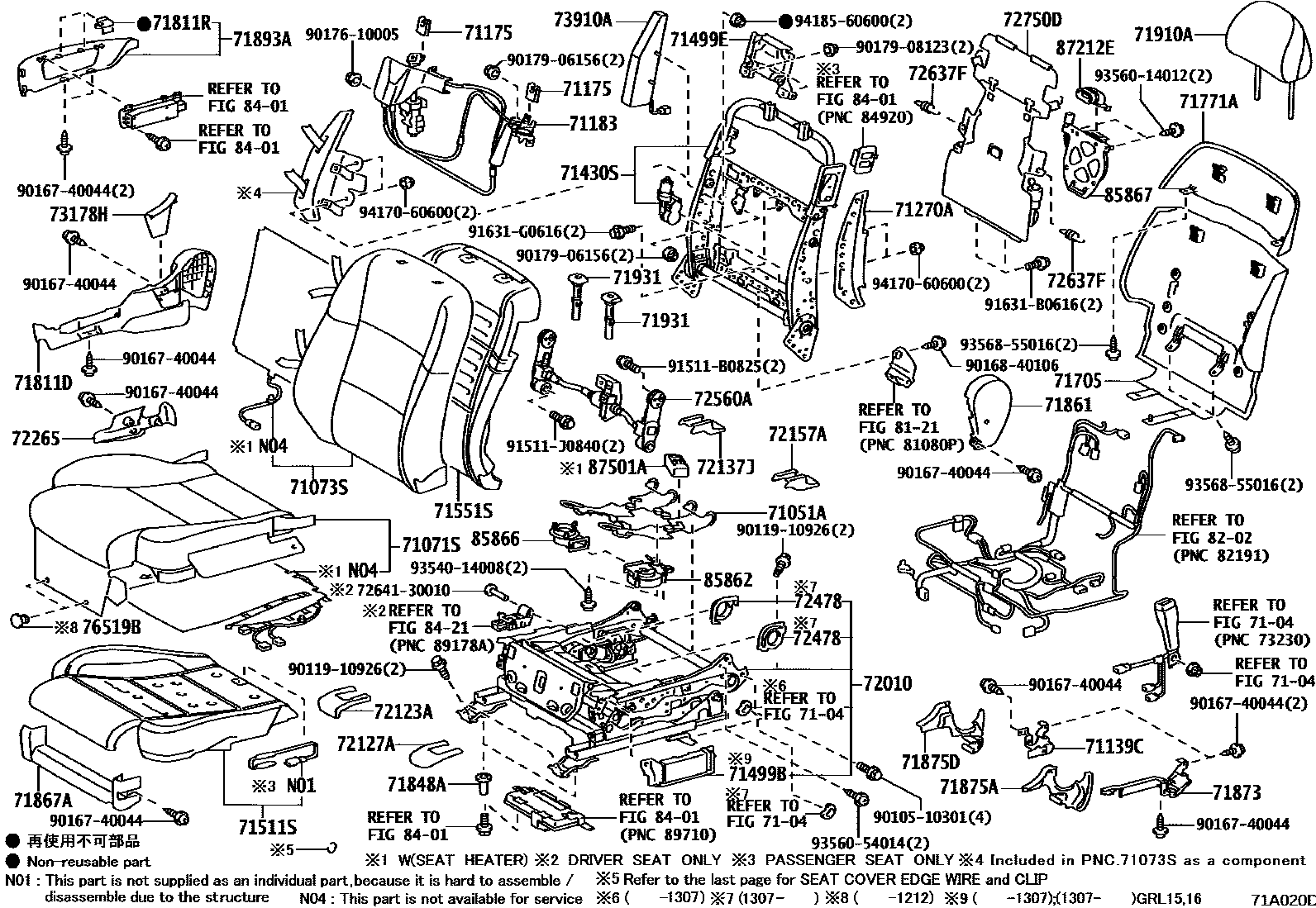

Parts diagram
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-30310i201510-201809
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-30K80-B2supersedes 71071-30N00-B0i201609-201805
CHATEAU,TRIM1#
sub71071-30K81
main71071-30K80-C4supersedes 71071-30N00-C0i201609-201805
BLACK,TRIM2#
sub71071-30K81
main71071-30F40-A4supersedes 71071-30F20-A0i201201-201409
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71071-30F40-A5supersedes 71071-30F20-A4i201409-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),IVORY,TRIM0#
main71071-30F40-B2i201203-201409
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),LT.GRAY,TRIM1#
main71071-30F40-B3i201409-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),LT.GRAY,TRIM1#
main71071-30F40-C7supersedes 71071-30F20-C3i201201-201409
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71071-30F40-C8supersedes 71071-30F10-C9i201409-201510
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71071-30F40-E2i201201-201409
SEAT COVER MATERIAL-LEATHER,SADDLE TAN,TRIM4#
main71071-30F40-E3i201409-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),SADDLE TAN,TRIM4#
main71071-30F60-A1i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71071-30F60-A2i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71071-30F60-C2i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30F60-C3i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30F60-D1i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30F60-D2i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30F60-F0i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30F60-F1i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30F70-A0i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71071-30F70-A1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71071-30F70-C2i201203-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30F70-C3i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30F70-E0i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71071-30F70-E1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71071-30F70-F1i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30F70-F2i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30F80-A0i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71071-30F80-A1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71071-30F80-C2i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71071-30F80-C3i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71071-30F80-E0i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71071-30F80-E1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71071-30F80-F1i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71071-30F80-F2i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71071-30F90-A0i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM0#
main71071-30F90-A1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM0#
main71071-30F90-C2i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30F90-C3i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30F90-E0i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71071-30F90-E1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71071-30F90-F1i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30F90-F2i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30G00-A0supersedes 71071-30F20-A0i201201-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM0#
main71071-30G00-A1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM0#
main71071-30G00-C2i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30G00-C3supersedes 71071-30F20-C7i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30G00-E0i201201-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71071-30G00-E1i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4
main71071-30G00-F1i201201-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30G00-F2i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30G40-A0supersedes 71071-30F20-A0i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71071-30G40-A1supersedes 71071-30F20-A4i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71071-30G40-C0supersedes 71071-30F20-C3i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30G40-C1supersedes 71071-30F20-C7i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30G40-D0i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30G40-D1i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71071-30G40-F0i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30G40-F1i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30K10-C1i201409-201510
THE CRAFTED LINE&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK/SCARLET,TRIM3#
main71071-30L80-A0i201510-201708
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),RICH CREAM,TRIM0#
main71071-30L80-A1i201708-201805
SEAT COVER MATERIAL-LEATHER(SMOOTH),RICH CREAM,TRIM0#
main71071-30L80-C0i201510-201708
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71071-30L80-C1supersedes 71071-30M90-C0i201708-201804
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71071-30L80-E0i201510-201708
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),NOBLE BROWN,TRIM6#
main71071-30L80-E1i201708-201804
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),NOBLE BROWN,TRIM6#
main71071-30L81-A1i201805-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),RICH CREAM,TRIM0#
main71071-30L81-C1supersedes 71071-30K81-C4i201805-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71071-30L81-E1i201805-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH),NOBLE BROWN,TRIM6#
main71071-30L90-C0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30L90-C1i201708-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30L90-D0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71071-30L90-D1i201708-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71071-30L90-F0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30L90-F1i201708-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30M00-A0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),RICH CREAM,TRIM0#
main71071-30M00-A1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),RICH CREAM,TRIM0#
main71071-30M00-B0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),CHATEAU,TRIM1#
main71071-30M00-B1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),CHATEAU,TRIM1#
main71071-30M00-C0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71071-30M00-C1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71071-30M00-E1i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),NOBLE BROWN,TRIM6#
main71071-30M00-E3i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),NOBLE BROWN,TRIM6#
main71071-30M00-F0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71071-30M00-F1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71071-30M10-A0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
sub71071-30M11
main71071-30M10-A1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
sub71071-30M11
main71071-30M10-B0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
sub71071-30M11
main71071-30M10-B1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
sub71071-30M11
main71071-30M10-C0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
sub71071-30M11
main71071-30M10-C1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
sub71071-30M11
main71071-30M10-E0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM
sub71071-30M11
main71071-30M10-E1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM
sub71071-30M11
main71071-30M10-F0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
sub71071-30M11
main71071-30M10-F1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
sub71071-30M11
main71071-30M20-A0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0#
main71071-30M20-A1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0#
main71071-30M20-B0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71071-30M20-B1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71071-30M20-C0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30M20-C1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71071-30M20-E1i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71071-30M20-E3i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71071-30M20-F0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30M20-F1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71071-30M30-A0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
sub71071-30M31
main71071-30M30-A1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
sub71071-30M31
main71071-30M30-B0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
sub71071-30M31
main71071-30M30-B1supersedes 71071-30K81-B2i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
sub71071-30M31
main71071-30M30-C0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
sub71071-30M31
main71071-30M30-C1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
sub71071-30M31
main71071-30M30-E0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
sub71071-30M31
main71071-30M30-E1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
sub71071-30M31
main71071-30M30-F0i201510-201708
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
sub71071-30M31
main71071-30M30-F1i201708-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
sub71071-30M31
main71071-30M50-C0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30M50-C1i201708-201804
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30M50-D0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71071-30M50-D1i201708-201805
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71071-30M50-F0i201510-201708
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30M50-F1i201708-201804
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30M51-C1supersedes 71071-30K81-C4i201805-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71071-30M51-D1i201805-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71071-30M51-F1i201805-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71071-30N01-B0supersedes 71071-30M91-B0i201805-201809
SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71071-30N01-C0supersedes 71071-30M91-C0i201805-201809
SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-30K50-B3supersedes 71073-30M20-B0i201609-201709
CHATEAU,TRIM1#
main71073-30K50-C3supersedes 71073-30M20-C0i201609-201709
BLACK,TRIM2#
main71073-30G00-20supersedes 71073-30F70-C9i201203-201409
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71073-30G00-22supersedes 71073-30F80-C9i201409-201510
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71073-30G00-A7supersedes 71073-30F70-A8i201203-201409
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),IVORY,TRIM0#
main71073-30G00-A8supersedes 71073-30F70-01i201409-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),IVORY,TRIM0#
main71073-30G00-B5i201201-201409
SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#
main71073-30G00-B6i201409-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),LT.GRAY,TRIM1#
main71073-30G00-E5i201203-201409
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),SADDLE TAN,TRIM4#
main71073-30G00-E6i201409-201510
SEAT COVER MATERIAL-LEATHER,SADDLE TAN,TRIM4#
main71073-30G20-A4i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71073-30G20-A5i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71073-30G20-C5i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30G20-C6i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30G20-D4i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71073-30G20-D5i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71073-30G20-F3i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30G20-F4i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30G30-A5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G30-A6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G30-C6i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30G30-C7i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30G30-E5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71073-30G30-E6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71073-30G30-F5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30G30-F6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30G40-A5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G40-A6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G40-C6i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30G40-C7i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30G40-E5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71073-30G40-E6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71073-30G40-F5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71073-30G40-F6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71073-30G50-A5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G50-A6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G50-C6i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30G50-C7i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30G50-E5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71073-30G50-E6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),SADDLE TAN,TRIM4#
main71073-30G50-F5i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30G50-F6i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30G70-A3i201203-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G70-A4i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71073-30G70-C4i201203-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30G70-C5i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30G70-E3i201203-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71073-30G70-E4i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
main71073-30G70-F3i201203-201409
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71073-30G70-F4i201409-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71073-30G90-A1supersedes 71073-30F80-A6i201201-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71073-30G90-A2supersedes 71073-30F80-A7i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,IVORY,TRIM0#
main71073-30G90-C1supersedes 71073-30F80-C7i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30G90-C2supersedes 71073-30F80-C9i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30G90-D1i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71073-30G90-D2i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,GARNET,TRIM3#
main71073-30G90-F1i201203-201409
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30G90-F2i201409-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30J80-C2i201409-201510
THE CRAFTED LINE&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK/SCARLET,TRIM3#
main71073-30K70-A1i201510-201709
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),RICH CREAM,TRIM0#
main71073-30K70-C1i201510-201709
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71073-30K70-E1i201510-201709
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),NOBLE BROWN,TRIM6#
main71073-30K71-A2i201709-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),RICH CREAM,TRIM0#
main71073-30K71-C2supersedes 71073-30M10-C1i201709-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71073-30K71-E2i201709-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),NOBLE BROWN,TRIM6#
main71073-30K90-C1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30K90-D1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71073-30K90-F1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30K91-C2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30K91-D2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71073-30K91-F2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30L00-A1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
sub71073-30L02
main71073-30L00-B1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
sub71073-30L02
main71073-30L00-C1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
sub71073-30L02
main71073-30L00-E1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM
sub71073-30L02
main71073-30L00-F1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
sub71073-30L02
main71073-30L01-A2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71073-30L01-B2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71073-30L01-C2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30L01-E2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM
main71073-30L01-F2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30L10-A1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71073-30L10-B1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71073-30L10-C1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30L10-E1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71073-30L10-F1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30L11-A2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71073-30L11-B2supersedes 71073-30K50-B4i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71073-30L11-C2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71073-30L11-E2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71073-30L11-F2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71073-30L20-A1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),RICH CREAM,TRIM0#
sub71073-30L22
main71073-30L20-B1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),CHATEAU,TRIM1#
sub71073-30L22
main71073-30L20-C1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
sub71073-30L22
main71073-30L20-E3i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
sub71073-30L22
main71073-30L20-F1i201510-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
sub71073-30L22
main71073-30L21-A2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0#
main71073-30L21-B2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),CHATEAU,TRIM1#
main71073-30L21-C2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
main71073-30L21-E5i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71073-30L21-F2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
main71073-30L50-C1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
sub71073-30L52
main71073-30L50-D1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
sub71073-30L52
main71073-30L50-F1i201510-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
sub71073-30L52
main71073-30L51-C2supersedes 71073-30K50-C5i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,BLACK,TRIM2#
main71073-30L51-D2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71073-30L51-F2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71073-30M20-B2supersedes 71073-30M10-B1i201709-201809
SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71073-30M20-C2supersedes 71073-30M10-C1i201709-201809
SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
71139CCOVER, FRONT SEAT LEG, RH
main71139-30130i201212-201510
main71139-30130-C0i201201-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71175PLATE, FRONT SEATBACK SPRING SET, INSIDE RH
main71173-30090×2i201510-201809
71183SUPPORT, FRONT SEATBACK, RH
main71183-30050i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
71270ABRACKET ASSY, SEAT, INNER RH
main71270-30090i201510-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main71270-30110i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-30C20i201510-201809
main71430-30C30i201201-201510
main71430-30F40i201510-201809
main71430-30C10supersedes 71430-30C20i201203-201510
SEAT COVER MATERIAL-LEATHER
main71430-30C40i201203-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main71430-30C50i201510-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main71430-30C60i201201-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
main71430-30C70i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
71499BDAMPER, SEAT CUSHION SPRING
main71499-30030i201510-201809
RH SEAT
main71499-30040i201510-201809
LH SEAT
main71499-30060i201203-201307
RH SEAT
main71499-30070i201203-201307
LH SEAT
71499EDAMPER, SEATBACK SPRING, RH
main71499-30050i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-30130i201201-201510
main71501-30140supersedes 71501-30130i201609-201809
main71501-30150i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main71501-30160i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
main71511-30B50supersedes 71511-30B40i201510-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY)
main71511-30B60i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-30B80i201201-201510
main71551-30B90i201203-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main71551-30C00i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
main71551-30C10i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main71551-30C20i201510-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-30880-A3i201201-201510
IVORY,TRIM00,01,02,03
main71705-30880-A5i201510-201603
RICH CREAM,TRIM0#
main71705-30880-A7i201603-201809
RICH CREAM,TRIM0#
main71705-30880-B2i201201-201510
LT.GRAY,TRIM1#
main71705-30880-B3i201510-201603
CHATEAU,TRIM1#
main71705-30880-B4i201603-201809
CHATEAU,TRIM1#
main71705-30880-C5i201510-201603
BLACK,TRIM2#
main71705-30880-C7i201510-201603
BLACK/IVORY,TRIM5#
main71705-30880-C8i201510-201603
BLACK/RED,TRIM3#
main71705-30880-C9i201603-201809
BLACK,TRIM2#
main71705-30880-E2i201201-201510
DK.SADDLE TAN,TRIM4#
main71705-30880-E3i201510-201603
NOBLE BROWN,TRIM6#
main71705-30880-E5i201603-201809
NOBLE BROWN,TRIM6#
main71705-30890-A2i201201-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71705-30890-A3i201510-201603
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71705-30890-A4i201603-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71705-30890-B1i201510-201603
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71705-30890-B2i201603-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71705-30890-C3i201510-201603
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71705-30890-C4i201603-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71705-30890-E2i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),DK.SADDLE TAN,TRIM4#
main71705-30890-E3i201510-201603
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71705-30890-E5i201603-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71705-30890-F2i201510-201603
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71705-30890-F3i201603-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
71771ABOARD, FRONT SEATBACK
main71771-30120-A1i201201-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM0#,RH
main71771-30120-A2i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71771-30120-B1i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#,RH
main71771-30120-C1i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#,RH
main71771-30120-E1i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),DK.SADDLE TAN,TRIM4#,RH
main71771-30120-E2i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#,RH
main71771-30120-F1i201201-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#,RH
main71772-30130-A1i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#,LH
main71772-30130-A2i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),RICH CREAM,TRIM0#,LH
main71772-30130-B1i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),CHATEAU,TRIM1#,LH
main71772-30130-C1i201201-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#,LH
main71772-30130-E1i201201-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),DK.SADDLE TAN,TRIM4#,LH
main71772-30130-E2i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#,LH
main71772-30130-F1i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#,LH
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-30510-A0i201203-201510
IVORY,TRIM03
main71811-30510-B0i201309-201510
LT.GRAY,TRIM1#
main71811-30510-C0supersedes 71811-30510-C0i201203-201510
BLACK,TRIM2#
main71811-30510-E0i201203-201510
DK.SADDLE TAN,TRIM43
main71811-30510-F0i201309-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
71811RCLIP, FRONT SEAT CUSHION SHIELD, RH
main71731-30120×2i201510-201809
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-33010×2i201201-201312
main71848-76010×2i201401-201510
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-30110-A0i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM00,01,
main71861-30110-B0i201309-201510
LT.GRAY,TRIM1#
main71861-30110-C0supersedes 71861-30110-C0i201203-201510
BLACK,TRIM2#
main71861-30110-E0i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),DK.SADDLE TAN,TRIM40,41,42
main71861-30110-F0i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM50,51,52
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-30150-A0i201309-201510
IVORY,TRIM0#
main71867-30150-B0i201203-201510
LT.GRAY,TRIM11
main71867-30150-C0i201309-201510
BLACK,TRIM2#
main71867-30150-E1i201309-201510
DK.SADDLE TAN,TRIM4#
main71867-30160-A0i201309-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
main71867-30160-C0i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM0#,1#,2#,5#,6#
main71867-30160-E0i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),DK.SADDLE TAN,TRIM40,41,42
main71867-30160-F0i201309-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-30110i201510-201809
main71873-30110-C0i201203-201212
BLACK,TRIM0#,1#,2#,4#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71876-30190i201510-201809
main71876-30190-C0i201201-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71875DCOVER, RECLINING ADJUSTER OUTSIDE, RH
main71875-30190i201212-201510
main71875-30190-C0i201201-201212
BLACK,TRIM0#,1#,2#,3#,4#,5#
71893ASHIELD, POWER ADJUSTER, FRONT RH
main71893-30030-A0i201201-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),IVORY,TRIM00,01,02
main71893-30030-B0i201203-201510
LT.GRAY,TRIM11
main71893-30030-C0i201203-201510
BLACK,TRIM2#
main71893-30030-E0i201203-201510
DK.SADDLE TAN,TRIM43
main71893-30030-F0i201309-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),TOPAZ BROWN,TRIM5#
71910AHEADREST ASSY, FRONT SEAT
main71910-30F50-A0×2i201201-201510
IVORY,TRIM0#
sub71910-30E50
main71910-30F50-C0×2i201201-201510
BLACK,TRIM2#
sub71910-30E50
main71910-30J00-B0×2supersedes 71910-30G20-B0i201609-201709
CHATEAU,TRIM1#
main71910-30J00-C0×2supersedes 71910-30G20-C1i201609-201709
BLACK,TRIM2#
main71910-30K40-B0×2supersedes 71910-30J70-B0i201709-201809
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71910-30E30-B2×2i201510-201602
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),CHATEAU,TRIM1#
main71910-30E30-C2×2i201510-201602
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71910-30F20-A2×2i201203-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),IVORY,TRIM0#
sub71910-30E40
main71910-30F20-C4×2i201201-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),BLACK,TRIM2#
sub71910-30E40
main71910-30F20-E3×2i201201-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),SADDLE TAN,TRIM4#
sub71910-30E40
main71910-30F20-F4×2i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
sub71910-30E40
main71910-30F60-A0×2i201203-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),IVORY,TRIM0#
main71910-30F60-B0×2i201203-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),LT.GRAY,TRIM1#
main71910-30F60-C0×2i201201-201510
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71910-30F60-C2×2i201409-201412
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK/RED,TRIM33
main71910-30F60-D0×2i201409-201412
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),GARNET,TRIM30,31,32
main71910-30F60-E0×2i201201-201510
SEAT COVER MATERIAL-LEATHER,SADDLE TAN,TRIM4#
main71910-30F60-F0×2i201203-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71910-30G10-D0×2i201412-201510
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(FRONT SEAT ONLY),GARNET,TRIM30,31,32
main71910-30G30-A0×2i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,RICH CREAM,TRIM0#
main71910-30G30-C0×2i201510-201602
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71910-30G30-D0×2i201510-201602
SEAT COVER MATERIAL-LEATHER(SMOOTH),DK.ROSE,TRIM3#
main71910-30G30-E1×2i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,NOBLE BROWN,TRIM6#
main71910-30G30-F0×2i201510-201602
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71910-30G40-A0×2i201510-201602
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71910-30G40-B0×2i201510-201602
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71910-30G40-C0×2i201510-201602
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71910-30G40-E1×2i201510-201602
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71910-30G40-F0×2i201510-201602
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71910-30G80-A0×2i201602-201709
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),RICH CREAM,TRIM0#
main71910-30G80-C0×2i201602-201709
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71910-30G80-D0×2i201602-201709
SEAT COVER MATERIAL-LEATHER(SMOOTH),DK.ROSE,TRIM3#
main71910-30G80-E0×2i201602-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,NOBLE BROWN,TRIM6#
main71910-30G80-F0×2i201602-201709
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
main71910-30G90-A0×2i201602-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71910-30G90-B0×2i201602-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71910-30G90-C0×2i201602-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71910-30G90-E0×2i201602-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71910-30G90-F0×2i201602-201709
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71910-30G91-A0×2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),RICH CREAM,TRIM0
main71910-30G91-B0×2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),CHATEAU,TRIM1#
main71910-30G91-C0×2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#
main71910-30G91-E0×2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN),NOBLE BROWN,TRIM6#
main71910-30G91-F0×2i201709-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),TOPAZ BROWN,TRIM5#
main71910-30K30-A0×2i201709-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),RICH CREAM,TRIM0#
main71910-30K30-C0×2supersedes 71910-30K40-C0i201709-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT ONLY),BLACK,TRIM2#
main71910-30K30-D0×2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,DK.ROSE,TRIM3#
main71910-30K30-E0×2i201709-201809
SEAT COVER MATERIAL-LEATHER(SMOOTH),NOBLE BROWN,TRIM6#
main71910-30K30-F0×2i201709-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,TOPAZ BROWN,TRIM5#
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-A4×2i201201-201510
W(LOCK),IVORY,TRIM0#
main71930-47020-C0×2i201201-201510
W(LOCK),VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH),BLACK,TRIM2#,4#,5#
main71930-47020-C4×2i201710-201809
W(LOCK),BLACK,TRIM1#,2#
main71931-47020-A4×2i201201-201510
W/O(LOCK),IVORY,TRIM0#
main71931-47020-C0×2i201510-201710
W/O(LOCK),BLACK,TRIM0#,1#,2#
main71931-47020-C4×2i201710-201809
W/O(LOCK),BLACK,TRIM1#,2#
main71930-47020-B1×2i201201-201510
W(LOCK),F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,LT.GRAY,TRIM1#
main71931-47020-B1×2i201203-201510
W/O(LOCK),F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONTSEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY,LT.GRAY,TRIM1#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-30290i201203-201307
sub73214-75010
main72010-30291i201510-201809
main72010-30370i201203-201307
sub73214-75010
main72010-30371i201510-201809
main72010-30300i201203-201307
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
sub73214-75010
main72010-30301i201307-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
main72010-30340i201203-201307
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
sub73214-75010
main72010-30341i201307-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main72010-30350i201203-201307
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
sub73214-75010
main72010-30351i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
main72010-30540supersedes 72010-30531i201201-201309
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH)
main72010-30550supersedes 72010-30531i201201-201307
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
sub73214-75010
main72010-30551supersedes 72010-30531i201307-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-30110-C0i201201-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-30090-C0i201510-201809
BLACK,TRIM0#,1#,2#,6#
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-30210-C0i201510-201809
BLACK,TRIM0#,1#,2#,6#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72138-30080-C0i201510-201809
BLACK,TRIM0#,1#,2#,6#
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-30010i201201-201510
72478BUSH, VERTICAL ADJUSTER
main72478-30040×4i201307-201510
72560AADJUSTER ASSY, FRONT SEATBACK
main72560-30010×2i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
72637FSPRING, SEATBACK, RH
main72637-30020×2i201510-201809
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-30280i201201-201510
main72750-30290i201510-201809
main72750-30300i201203-201510
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&SEAT HEATER-WITH(FRONT SEAT ONLY)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main72750-30320i201203-201510
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&SEAT HEATER-WITH(FRONT & REAR SEAT)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
73178HCAP, SEAT BELT ANCHOR COVER, RH
main73178-30050-A0i201203-201510
IVORY,TRIM03
sub73178-33050
main73178-30050-B0i201309-201510
LT.GRAY,TRIM1#
sub73178-33050
main73178-30050-C0i201203-201510
BLACK,TRIM2#
sub73178-33050
main73178-30050-E1i201201-201510
DK.SADDLE TAN,TRIM40,41,42,43
sub73178-33050
main73178-30050-F0i201201-201510
TOPAZ BROWN,TRIM50,51,52
sub73178-33050
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-30090i201510-201809
main73910-30110i201510-201809
F SPORT&SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY
main73910-30130i201510-201809
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
76519BCLIP, FRONT SEAT CUSHION COVER
main76519-42010×2i201201-201212
VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN)
8121
8202
8401
8421
85862BLOWER, SEAT CLIMATE CONTROL, RH
main85801-30250i201609-201809
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
main85866-30030i201609-201809
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-30020i201609-201809
87212EDUCT, AIR, REAR RH
main87211-30690i201609-201809
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
main87501-30020i201201-201510
7264130010PIN, REAR SEATBACK LOCK
main72641-30010
9010510301
main90105-10301
9011910926
main90119-10926
9016740044
main90167-40044
9016840106
main90168-40106
9017610005
main90176-10005
9017906156
main90179-06156
9017908123
main90179-08123
91511B0825
main91511-B0825
91511J0840
main91511-J0840
91631B0616
main91631-B0616
91631G0616
main91631-G0616
9354014008
main93540-14008
9356014012
main93560-14012
9356054014
main93560-54014
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

66 parts on this diagram · 7 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
