FRONT DOOR LOCK & HANDLE

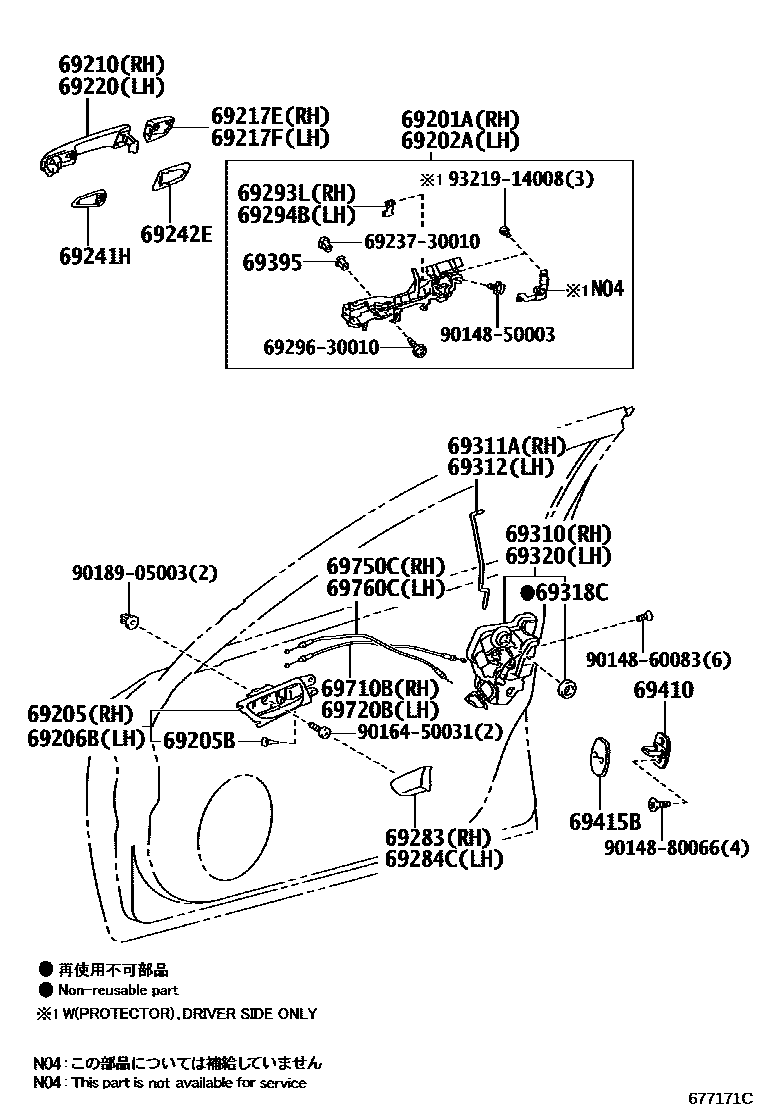

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-30080i201203-201703
sub69201-30081
main69201-30081i201704-201809
main69201-48011i201201-201510
sub69201-48012
main69201-48011i201510-201705
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA)
sub69201-48012
main69201-48011i201510-201705
DOOR OUTSIDE HANDLE-W(SMART ANTENNA)
sub69201-48012
main69201-48012i201706-201809
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA)
main69201-48012i201706-201809
DOOR OUTSIDE HANDLE-W(SMART ANTENNA)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-48011i201201-201705
sub69202-48012
main69202-48012i201706-201809
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69270-30020-C0i201201-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main69270-30020-C0i201203-201510
BLACK,TRIM0#,1#,2#,4#
main69270-30040i201510-201809
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i201201-201809
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69280-30040-C0i201201-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main69280-30040-C0i201203-201510
BLACK,TRIM0#,1#,2#,4#
main69280-30060i201510-201809
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-48040-A0i201201-201510
WHITE PEARL CS.,077
sub69210-48040
main69210-48040-A2i201309-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),WHITE NOVA GF.,083
sub69210-48040
main69210-48040-A2i201309-201809
WHITE NOVA GF.,083
sub69210-48040
main69210-48040-A3i201510-201809
SONIC QUARTZ,085
sub69210-48040
main69210-48040-B0i201609-201809
DK.GRAY MC.,1G0
sub69210-48040
main69210-48040-B4i201201-201609
MERCURY GRAY MC.,1H9
sub69210-48040
main69210-48040-B5i201201-201809
SONIC SILVER,1J2
sub69210-48040
main69210-48040-B7i201409-201809
SONIC TITANIUM,1J7
sub69210-48040
main69210-48040-B7i201409-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),SONIC TITANIUM,1J7
sub69210-48040
main69210-48040-C0i201201-201809
BLACK,212
sub69210-48040
main69210-48040-C1i201201-201409
BLACK OPAL MC.,214
sub69210-48040
main69210-48040-C2i201201-201510
STARLIGHT BLACK GF.,217
sub69210-48040
main69210-48040-C3i201510-201809
GRAPHITE BLACK GF.,223
sub69210-48040
main69210-48040-D0i201510-201809
RED MC.CS.,3R1
sub69210-48040
main69210-48040-D1i201201-201510
CRIMSON CS. GF.,3S8
sub69210-48040
main69210-48040-E2i201201-201510
FIRE AGATE M.M.,4V3
sub69210-48040
main69210-48040-E3i201201-201309
SLEEK ECRU ME.,4U7
sub69210-48040
main69210-48040-E3i201201-201309
RUSSIA SPEC,SLEEK ECRU ME.,4U7
sub69210-48040
main69210-48040-E3i201203-201309
BALTIC SPEC,SLEEK ECRU ME.,4U7
sub69210-48040
main69210-48040-E3i201203-201309
NORDIC SPEC,SLEEK ECRU ME.,4U7
sub69210-48040
main69210-48040-E4i201510-201809
AMBER CS.,4X2
sub69210-48040
main69210-48040-J3i201201-201510
LAPIS LAZULI MC.,8V3
sub69210-48040
main69210-48040-J4i201201-201510
METEOR BLUE M.M.,8W3
sub69210-48040
main69210-48040-J5i201510-201809
DEEP BLUE MC.,8X5
sub69210-48040
main69210-48040-J6i201510-201809
HEAT BLUE CONTRAST LAYERI,8X1
sub69210-48040
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-48010-A0i201203-201510
WHITE PEARL CS.,077
sub69217-48010
main69217-48010-A2i201309-201809
WHITE NOVA GF.,083
sub69217-48010
main69217-48010-A3i201510-201809
SONIC QUARTZ,085
sub69217-48010
main69217-48010-B0i201609-201809
DK.GRAY MC.,1G0
sub69217-48010
main69217-48010-B4i201203-201609
MERCURY GRAY MC.,1H9
sub69217-48010
main69217-48010-B5i201203-201809
SONIC SILVER,1J2
sub69217-48010
main69217-48010-B7i201409-201809
SONIC TITANIUM,1J7
sub69217-48010
main69217-48010-C0i201203-201809
BLACK,212
sub69217-48010
main69217-48010-C1i201203-201409
BLACK OPAL MC.,214
sub69217-48010
main69217-48010-C2i201203-201510
STARLIGHT BLACK GF.,217
sub69217-48010
main69217-48010-C3i201510-201809
GRAPHITE BLACK GF.,223
sub69217-48010
main69217-48010-D0i201510-201809
RED MC.CS.,3R1
sub69217-48010
main69217-48010-D1i201203-201510
CRIMSON CS. GF.,3S8
sub69217-48010
main69217-48010-E2i201203-201510
FIRE AGATE M.M.,4V3
sub69217-48010
main69217-48010-E3i201203-201309
SLEEK ECRU ME.,4U7
sub69217-48010
main69217-48010-E4i201510-201809
AMBER CS.,4X2
sub69217-48010
main69217-48010-J3i201203-201510
LAPIS LAZULI MC.,8V3
sub69217-48010
main69217-48010-J4i201203-201510
METEOR BLUE M.M.,8W3
sub69217-48010
main69217-48010-J5i201510-201809
DEEP BLUE MC.,8X5
sub69217-48010
main69217-48010-J6i201510-201809
HEAT BLUE CONTRAST LAYERI,8X1
sub69217-48010
main69217-48020-A0i201201-201510
WHITE PEARL CS.,077
sub69217-48020
main69217-48020-A2i201309-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),WHITE NOVA GF.,083
sub69217-48020
main69217-48020-A2i201309-201809
WHITE NOVA GF.,083
sub69217-48020
main69217-48020-A2i201309-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),WHITE NOVA GF.,083
sub69217-48020
main69217-48020-A2i201309-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),WHITE NOVA GF.,083
sub69217-48020
main69217-48020-A3i201510-201809
SONIC QUARTZ,085
sub69217-48020
main69217-48020-B0i201609-201809
DK.GRAY MC.,1G0
sub69217-48020
main69217-48020-B4i201201-201609
MERCURY GRAY MC.,1H9
sub69217-48020
main69217-48020-B5i201201-201809
SONIC SILVER,1J2
sub69217-48020
main69217-48020-B7i201409-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),SONIC TITANIUM,1J7
sub69217-48020
main69217-48020-B7i201409-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),SONIC TITANIUM,1J7
sub69217-48020
main69217-48020-B7i201409-201809
SONIC TITANIUM,1J7
sub69217-48020
main69217-48020-B7i201409-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),SONIC TITANIUM,1J7
sub69217-48020
main69217-48020-C0i201201-201809
BLACK,212
sub69217-48020
main69217-48020-C1i201201-201409
BLACK OPAL MC.,214
sub69217-48020
main69217-48020-C2i201201-201510
STARLIGHT BLACK GF.,217
sub69217-48020
main69217-48020-C3i201510-201809
GRAPHITE BLACK GF.,223
sub69217-48020
main69217-48020-D0i201510-201809
RED MC.CS.,3R1
sub69217-48020
main69217-48020-D1i201201-201510
CRIMSON CS. GF.,3S8
sub69217-48020
main69217-48020-E2i201201-201510
FIRE AGATE M.M.,4V3
sub69217-48020
main69217-48020-E3i201201-201309
SLEEK ECRU ME.,4U7
sub69217-48020
main69217-48020-E3i201201-201309
RUSSIA SPEC,SLEEK ECRU ME.,4U7
sub69217-48020
main69217-48020-E4i201510-201809
AMBER CS.,4X2
sub69217-48020
main69217-48020-J3i201201-201510
LAPIS LAZULI MC.,8V3
sub69217-48020
main69217-48020-J4i201201-201510
METEOR BLUE M.M.,8W3
sub69217-48020
main69217-48020-J5i201510-201809
DEEP BLUE MC.,8X5
sub69217-48020
main69217-48020-J6i201510-201809
HEAT BLUE CONTRAST LAYERI,8X1
sub69217-48020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69218-48010-A0i201203-201510
WHITE PEARL CS.,077
sub69218-48010
main69218-48010-A2i201309-201809
WHITE NOVA GF.,083
sub69218-48010
main69218-48010-A3i201510-201809
SONIC QUARTZ,085
sub69218-48010
main69218-48010-B0i201609-201809
DK.GRAY MC.,1G0
sub69218-48010
main69218-48010-B4i201203-201609
MERCURY GRAY MC.,1H9
sub69218-48010
main69218-48010-B5i201203-201809
SONIC SILVER,1J2
sub69218-48010
main69218-48010-B7i201409-201809
SONIC TITANIUM,1J7
sub69218-48010
main69218-48010-C0i201203-201809
BLACK,212
sub69218-48010
main69218-48010-C1i201203-201409
BLACK OPAL MC.,214
sub69218-48010
main69218-48010-C2i201203-201510
STARLIGHT BLACK GF.,217
sub69218-48010
main69218-48010-C3i201510-201809
GRAPHITE BLACK GF.,223
sub69218-48010
main69218-48010-D0i201510-201809
RED MC.CS.,3R1
sub69218-48010
main69218-48010-D1i201203-201510
CRIMSON CS. GF.,3S8
sub69218-48010
main69218-48010-E2i201203-201510
FIRE AGATE M.M.,4V3
sub69218-48010
main69218-48010-E3i201203-201309
SLEEK ECRU ME.,4U7
sub69218-48010
main69218-48010-E4i201510-201809
AMBER CS.,4X2
sub69218-48010
main69218-48010-J3i201203-201510
LAPIS LAZULI MC.,8V3
sub69218-48010
main69218-48010-J4i201203-201510
METEOR BLUE M.M.,8W3
sub69218-48010
main69218-48010-J5i201510-201809
DEEP BLUE MC.,8X5
sub69218-48010
main69218-48010-J6i201510-201809
HEAT BLUE CONTRAST LAYERI,8X1
sub69218-48010
main69218-48020-A0i201201-201510
WHITE PEARL CS.,077
sub69218-48020
main69218-48020-A2i201309-201809
WHITE NOVA GF.,083
sub69218-48020
main69218-48020-A2i201309-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),WHITE NOVA GF.,083
sub69218-48020
main69218-48020-A2i201309-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),WHITE NOVA GF.,083
sub69218-48020
main69218-48020-A2i201309-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),WHITE NOVA GF.,083
sub69218-48020
main69218-48020-A3i201510-201809
SONIC QUARTZ,085
sub69218-48020
main69218-48020-B0i201609-201809
DK.GRAY MC.,1G0
sub69218-48020
main69218-48020-B4i201201-201609
MERCURY GRAY MC.,1H9
sub69218-48020
main69218-48020-B5i201201-201809
SONIC SILVER,1J2
sub69218-48020
main69218-48020-B7i201409-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),SONIC TITANIUM,1J7
sub69218-48020
main69218-48020-B7i201409-201510
DOOR OUTSIDE HANDLE-W/O(SMART ANTENNA),W(KEY CYLINDER PROTR),SONIC TITANIUM,1J7
sub69218-48020
main69218-48020-B7i201409-201809
SONIC TITANIUM,1J7
sub69218-48020
main69218-48020-B7i201409-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),SONIC TITANIUM,1J7
sub69218-48020
main69218-48020-C0i201201-201809
BLACK,212
sub69218-48020
main69218-48020-C1i201201-201409
BLACK OPAL MC.,214
sub69218-48020
main69218-48020-C2i201201-201510
STARLIGHT BLACK GF.,217
sub69218-48020
main69218-48020-C3i201510-201809
GRAPHITE BLACK GF.,223
sub69218-48020
main69218-48020-D0i201510-201809
RED MC.CS.,3R1
sub69218-48020
main69218-48020-D1i201201-201510
CRIMSON CS. GF.,3S8
sub69218-48020
main69218-48020-E2i201201-201510
FIRE AGATE M.M.,4V3
sub69218-48020
main69218-48020-E3i201201-201309
SLEEK ECRU ME.,4U7
sub69218-48020
main69218-48020-E3i201201-201309
RUSSIA SPEC,SLEEK ECRU ME.,4U7
sub69218-48020
main69218-48020-E4i201510-201809
AMBER CS.,4X2
sub69218-48020
main69218-48020-J3i201201-201510
LAPIS LAZULI MC.,8V3
sub69218-48020
main69218-48020-J4i201201-201510
METEOR BLUE M.M.,8W3
sub69218-48020
main69218-48020-J5i201510-201809
DEEP BLUE MC.,8X5
sub69218-48020
main69218-48020-J6i201510-201809
HEAT BLUE CONTRAST LAYERI,8X1
sub69218-48020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-48040-A0i201201-201510
WHITE PEARL CS.,077
sub69220-48040
main69220-48040-A2i201309-201809
WHITE NOVA GF.,083
sub69220-48040
main69220-48040-A2i201309-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),WHITE NOVA GF.,083
sub69220-48040
main69220-48040-A3i201510-201809
SONIC QUARTZ,085
sub69220-48040
main69220-48040-B0i201609-201809
DK.GRAY MC.,1G0
sub69220-48040
main69220-48040-B4i201201-201609
MERCURY GRAY MC.,1H9
sub69220-48040
main69220-48040-B5i201201-201809
SONIC SILVER,1J2
sub69220-48040
main69220-48040-B7i201409-201510
DOOR OUTSIDE HANDLE-W(SMART ANTENNA & KEY CYLINDER PROTR),SONIC TITANIUM,1J7
sub69220-48040
main69220-48040-B7i201409-201809
SONIC TITANIUM,1J7
sub69220-48040
main69220-48040-C0i201201-201809
BLACK,212
sub69220-48040
main69220-48040-C1i201201-201409
BLACK OPAL MC.,214
sub69220-48040
main69220-48040-C2i201201-201510
STARLIGHT BLACK GF.,217
sub69220-48040
main69220-48040-C3i201510-201809
GRAPHITE BLACK GF.,223
sub69220-48040
main69220-48040-D0i201510-201809
RED MC.CS.,3R1
sub69220-48040
main69220-48040-D1i201201-201510
CRIMSON CS. GF.,3S8
sub69220-48040
main69220-48040-E2i201201-201510
FIRE AGATE M.M.,4V3
sub69220-48040
main69220-48040-E3i201203-201309
NORDIC SPEC,SLEEK ECRU ME.,4U7
sub69220-48040
main69220-48040-E3i201201-201309
SLEEK ECRU ME.,4U7
sub69220-48040
main69220-48040-E3i201203-201309
BALTIC SPEC,SLEEK ECRU ME.,4U7
sub69220-48040
main69220-48040-E3i201201-201309
RUSSIA SPEC,SLEEK ECRU ME.,4U7
sub69220-48040
main69220-48040-E4i201510-201809
AMBER CS.,4X2
sub69220-48040
main69220-48040-J3i201201-201510
LAPIS LAZULI MC.,8V3
sub69220-48040
main69220-48040-J4i201201-201510
METEOR BLUE M.M.,8W3
sub69220-48040
main69220-48040-J5i201510-201809
DEEP BLUE MC.,8X5
sub69220-48040
main69220-48040-J6i201510-201809
HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48040
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-48030i201201-201809
RH
main69242-48030i201201-201809
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-48041i201201-201302
RH
sub69241-48050
main69241-48050i201303-201809
RH
main69242-48041i201201-201302
LH
sub69242-48050
main69242-48050i201303-201809
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-C0i201201-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i201203-201510
BLACK,TRIM0#,1#,2#,4#
sub69283-30050
main69283-30050-C0i201510-201809
BLACK,TRIM0#,1#,2#,6#
sub69283-30050
main69283-30050-C0i201510-201809
BLACK,TRIM0#,1#,2#,3#,5#,6#
sub69283-30050
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-C0i201201-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i201203-201510
BLACK,TRIM0#,1#,2#,4#
sub69284-30050
main69284-30050-C0i201510-201809
BLACK,TRIM0#,1#,2#,6#
sub69284-30050
main69284-30050-C0i201510-201809
BLACK,TRIM0#,1#,2#,3#,5#,6#
sub69284-30050
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201201-201809
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201201-201809
69310LOCK ASSY, FRONT DOOR, RH
main69030-53080i201203-201809
main69030-60250i201201-201809
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-30150i201201-201809
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-30150i201201-201809
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201201-201809
69320LOCK ASSY, FRONT DOOR, LH
main69040-53100i201201-201809
main69040-60220i201203-201809
69395BUSH(FOR DOOR OUTSIDE HANDLE)
main69239-30010i201201-201809
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-30060i201201-201809
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-33010i201201-201209
main69415-60020i201210-201809
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-30220i201201-201809
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-30220i201201-201809
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-30180i201201-201809
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-30180i201201-201809
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
9321914008
main93219-14008

35 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
