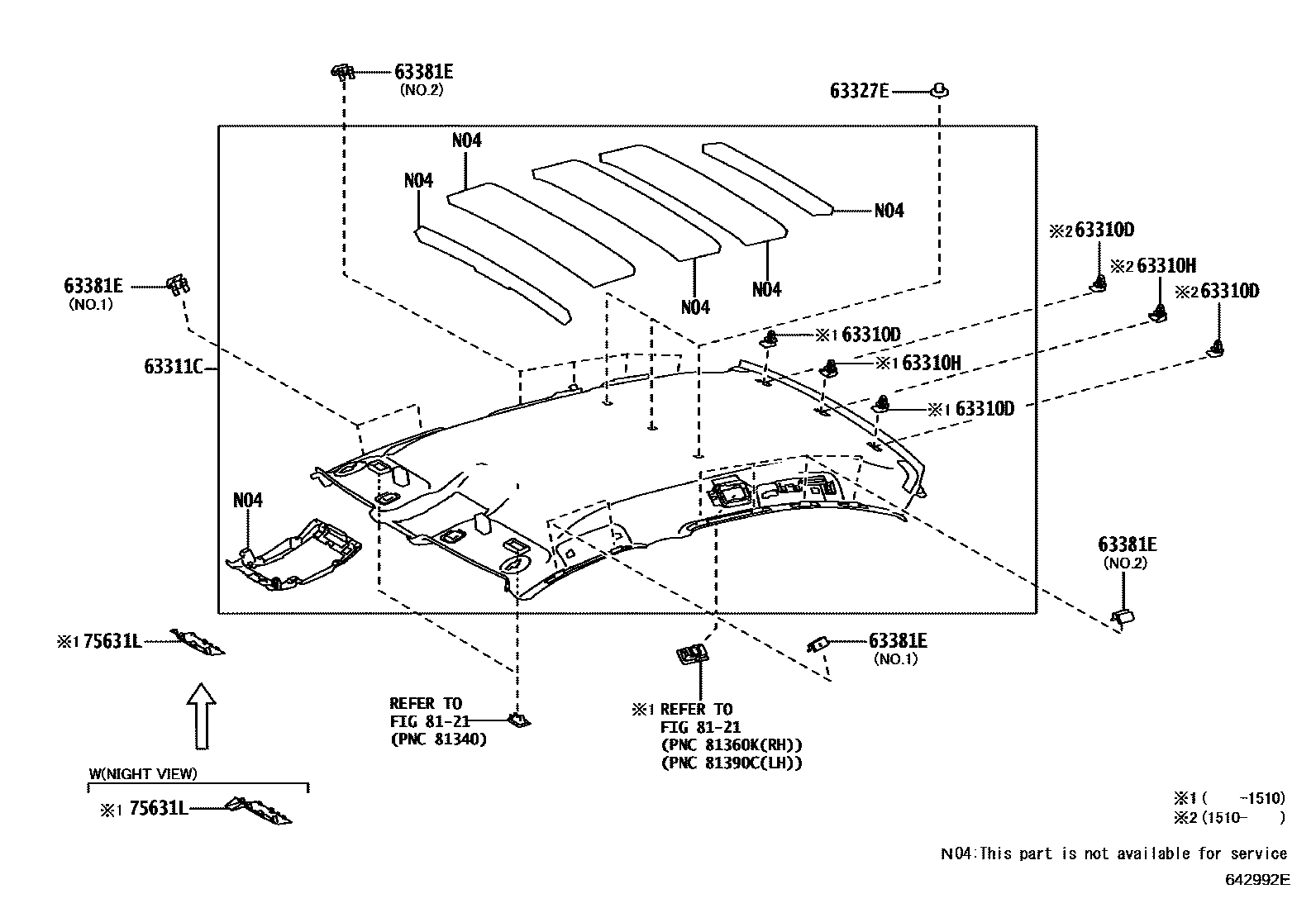

ROOF HEADLINING & SILENCER PAD
63310DCLIP, ROOF HEADLINING
63310HCLIP(FOR ROOF HEADLINING)
63311CHEADLINING, ROOF
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,IVORY,TRIM00,01,02,50,51,52; IVORY,TRIM0#; IVORY,TRIM0#,5#
MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0#; MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0#,5#
MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,2#,4#
main63310-30T90-A0iAWL10,GWL10..ECO; AWL10..STD;GRL11,GWL10..RHD..STD; GRL11,GWL10..LHD..STD201203-201409
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM0#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM00,01,02,03,50,51,52; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM00,01,02,03,50,51,52,53
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,LT.GRAY,TRIM1#,2#,4#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,LT.GRAY,TRIM1#,20,21,22,23,4#
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,IVORY,TRIM00,01,02,50,51,52
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,LT.GRAY,TRIM20,21,22,4#
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
main63310-30U10-A0iAWL10,GWL10..ECO; AWL10..STD;GRL11,GWL10..RHD..STD; GRL11,GWL10..LHD..STD201203-201409
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,02,03,50,51,52; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,02,03,50,51,52,53
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#,4#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,21,22,23,4#
MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
main63311-30470-A0iAWL10,GRL11,GWL10; AWL10,GRL11,GWL10..STD; AWL10,GWL10..ECO; AWL10,GWL10..STD; GRL15201409-201510
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM0#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM00,01,02,03,50,51,52; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,IVORY,TRIM00,01,02,50,51,52; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM00,01,02,03,50,51,52; MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0#; MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM00,01,02,03,50,51,52
main63311-30470-B0iAWL10,GRL11,GWL10; AWL10,GRL11,GWL10..STD; AWL10,GWL10..ECO; AWL10,GWL10..STD; GRL15201409-201510
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,LT.GRAY,TRIM1#,2#,4#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,LT.GRAY,TRIM1#,20,21,22,23,4#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,LT.GRAY,TRIM20,21,22,4#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#,4#; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,20,21,22,23,4#; MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,2#,4#; MOON ROOF-WITH(TILT & SLIDE),LT.GRAY,TRIM1#,20,21,22,23,4#
MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; INTERMITTENT WIPER-AUTO(RAIN SENSOR),BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
main63311-30F30-A0supersedes 63311-30F50-A0iARL10,AWL10,GRL16,GWL10..STD; AWL10,GWL10..ECO201510-201809
MOON ROOF-WITH(TILT & SLIDE),ECRU,TRIM0#,1#,2#,50,51,52,53,6#; MOON ROOF-WITH(TILT & SLIDE),ECRU,TRIM0#,1#,2#,6#
MOON ROOF-WITH(TILT & SLIDE),BLACK,TRIM25,26,3#,55,56
63327EFASTENER, ROOF HEADLINING, NO.1
63381ERETAINER, ROOF HEADLINING TRIM, FRONT
NO.1
NO.2
75631LGARNISH, ROOF TOP, FRONT
IVORY,TRIM0#; IVORY,TRIM0#,5#
LT.GRAY,TRIM1#,2#,4#
IVORY,TRIM00,01,02,03,50,51,52,53
LT.GRAY,TRIM1#,20,21,22,23,4#
BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM0#; INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM00,01,02,03,50,51,52; INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,IVORY,TRIM00,01,02,03,50,51,52,53
F SPORT&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,LT.GRAY,TRIM1#,20,21,22,23,4#; VERSION L&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,LT.GRAY,TRIM1#,20,21,22,23,4#
F SPORT&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; VERSION L&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
F SPORT&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,IVORY,TRIM00,01,02,50,51,52; VERSION L&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,IVORY,TRIM00,01,02,50,51,52
F SPORT&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,LT.GRAY,TRIM20,21,22,4#; VERSION L&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,LT.GRAY,TRIM20,21,22,4#
F SPORT&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56; VERSION L&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH,BLACK,TRIM04,05,06,24,25,26,3#,54,55,56
8121INTERIOR LAMP
7 parts on this diagram · 3 diagrams in section
