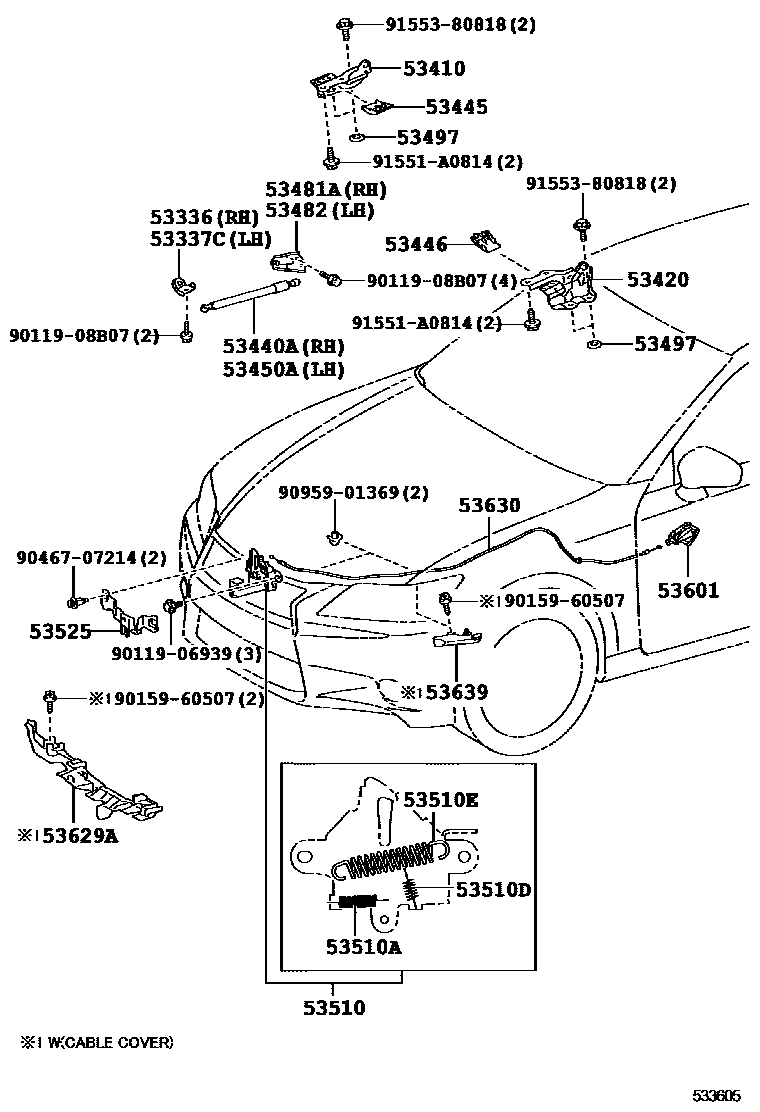

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-30060iAWL10,GRL1#,GWL10201201-201510

53337CBRACKET, HOOD STAY, LH

main53337-30040iAWL10,GRL1#,GWL10201201-201510

53410HINGE ASSY, HOOD, RH

main53410-30450iARL10,AWL10,GRL16,GWL10201510-201809

53420HINGE ASSY, HOOD, LH

main53420-30460iARL10,AWL10,GRL16,GWL10201510-201809

53440ASUPPORT ASSY, HOOD, RH

main53440-0W250iGRL15201201-201202

main53440-0W251iARL10,AWL10,GRL16,GWL10201510-201809

53445COVER, HOOD HINGE, RH

main53445-30010iARL10,AWL10,GRL16,GWL10201510-201809

53446COVER, HOOD HINGE, LH

main53446-30010iARL10,AWL10,GRL16,GWL10201510-201809

53450ASUPPORT ASSY, HOOD, LH

main53450-0W220iGRL15201201-201202

main53450-0W221iAWL10,GRL1#,GWL10201202-201510

53481ABRACKET, HOOD SUPPORT, RH

main53481-30020iAWL10,GRL1#,GWL10201201-201510

53482BRACKET, HOOD SUPPORT, LH

main53482-30020iAWL10,GRL1#,GWL10201201-201510

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iAWL10,GRL1#,GWL10201201-201409

T=2.0

main53497-42010×4iAWL10,GRL1#,GWL10201201-201409

T=0.5

main53497-50020×4iAWL10,GRL1#,GWL10201410-201510

T=1.0

53510LOCK ASSY, HOOD

main53510-30350iAWL10,GWL10..RHD201510-201809

main53510-30360iAWL10,GRL1#,GWL10..LHD201201-201510

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAWL10,GRL1#,GWL10201201-201510

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAWL10,GRL1#,GWL10201201-201510

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14086iAWL10,GRL1#,GWL10201201-201510

WD=1.4,CW=15

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-30080iAWL10,GRL1#,GWL10201201-201510

main53525-30130iARL10,AWL10,GRL16,GWL10201510-201809

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iAWL10,GRL1#,GWL10..STD201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main53601-30090-C1iARL10,AWL10,GRL16,GWL10..STD; AWL10,GWL10..ECO201701-201809

BLACK,TRIM0#,1#,2#,3#,5#,6#; BLACK,TRIM0#,1#,2#,6#

53629ACOVER, HOOD LOCK CONTROL CABLE

main53629-30080iAWL10,GRL11,GWL10..LHD; AWL10,GRL11,GWL10..RHD201203-201510

BALTIC SPEC; NORDIC SPEC

main53629-30100iAWL10,GWL10..RHD201510-201809

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30340iAWL10,GWL10..RHD201510-201809

main53630-30350iARL10,AWL10,GRL16,GWL10..LHD201510-201809

53639COVER, HOOD LOCK CONTROL CABLE, NO.2

main53639-30010iAWL10,GWL10..RHD201510-201809

main53639-30020iAWL10,GRL11,GWL10..LHD201203-201510

BALTIC SPEC; NORDIC SPEC

9011906939

main90119-06939

9011908B07

main90119-08B07

9015960507

main90159-60507

9046707214

main90467-07214

9095901369

main90959-01369

91551A0814

main91551-A0814

9155380818

main91553-80818

27 parts on this diagram · 2 diagrams in section
