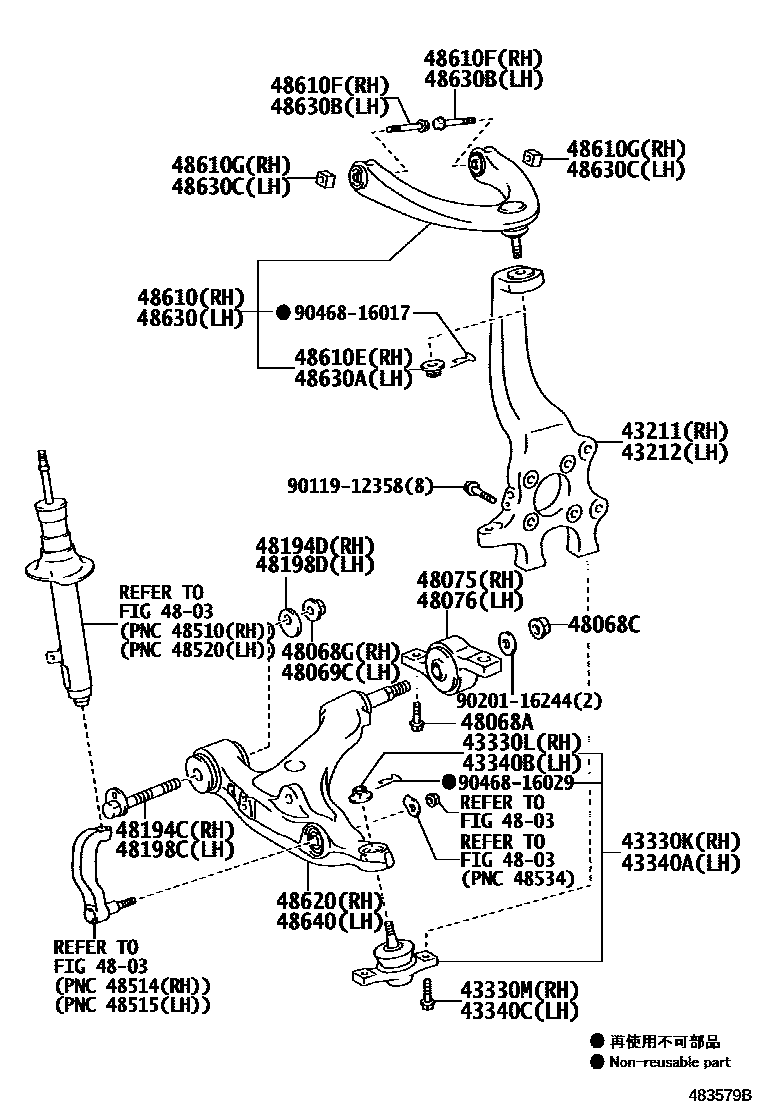

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43201-30030iARL10,AWL10,GWL10201203-201809

main43201-30040iGRL15201201-201809

43212KNUCKLE, STEERING, LH

main43202-30040iARL10,AWL10,GWL10201203-201809

main43202-30050iGRL16201201-201809

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39635iGRL16201201-201809

main43330-39865iARL10,AWL10,GWL10201203-201809

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14014iAWL10,GRL1#,GWL10201201-201809

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main91552-L1455iARL10,AWL10,GRL16,GWL10201201-201809

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-39635iGRL15201201-201809

main43340-39625iAWL10,GRL11,GWL10201203-201809

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14014iARL10,AWL10,GRL16,GWL10201201-201809

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main91552-L1455iAWL10,GRL1#,GWL10201201-201809

4803

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12332iGRL15201201-201809

main91552-L1265iARL10,AWL10,GWL10201203-201809

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main94151-21240iAWL10,GRL11,GWL10201203-201809

NO.2

main94151-21601iGRL16201203-201809

NO.1

main94151-21601iGRL15201201-201510

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14069iGRL15201201-201809

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14069iGRL15201201-201809

48075BRACKET SUB-ASSY, LWR ARM, NO,1

main48075-24070iARL10,AWL10,GWL10201510-201809

OFFSET:0,REFER R/M

main48075-24100iARL10,AWL10,GWL10201510-201809

OFFSET:+20,REFER R/M

main48075-24110iARL10,AWL10,GWL10201510-201809

OFFSET:-20,REFER R/M

main48075-30030iGRL15201201-201809

main48075-30060iAWL10,GRL11,GWL10201203-201510

OFFSET:0,REFER R/M

main48075-30080iAWL10,GRL11,GWL10201203-201510

OFFSET:+20,REFER R/M

main48075-30090iAWL10,GRL11,GWL10201203-201510

OFFSET:-20,REFER R/M

sub48075-30091

48076BRACKET SUB-ASSY, LWR ARM, NO.2

main48076-24040iARL10,AWL10,GWL10201510-201809

OFFSET:0,REFER R/M

main48076-24070iARL10,AWL10,GWL10201510-201809

OFFSET:+20,REFER R/M

main48076-24080iARL10,AWL10,GWL10201510-201809

OFFSET:-20,REFER R/M

main48076-30030iGRL15201201-201809

main48076-30060iAWL10,GRL11,GWL10201203-201510

OFFSET:0,REFER R/M

main48076-30080iAWL10,GRL11,GWL10201203-201510

OFFSET:+20,REFER R/M

main48076-30090iAWL10,GRL11,GWL10201203-201510

OFFSET:-20,REFER R/M

sub48076-30091

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-77010iGRL16201201-201809

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-30060iGRL15201201-201809

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-77010iGRL15201201-201809

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-30060iGRL15201201-201809

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39185iAWL10,GRL11,GWL10201203-201809

main48610-39195iGRL16201201-201809

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iAWL10,GRL1#,GWL10201201-201809

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main91672-G1070iAWL10,GRL1#,GWL10201201-201809

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iARL10,AWL10,GRL16,GWL10201201-201809

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-30320iAWL10,GRL11,GWL10201203-201809

main48620-30330iGRL15201201-201809

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39195iGRL16201201-201809

main48630-39115iAWL10,GRL11,GWL10201203-201809

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iAWL10,GRL1#,GWL10201201-201809

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main91672-G1070iAWL10,GRL1#,GWL10201201-201809

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iAWL10,GRL1#,GWL10201201-201809

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-30320iAWL10,GRL11,GWL10201203-201809

main48640-30330iGRL15201201-201809

9011912358

main90119-12358

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

33 parts on this diagram · 2 diagrams in section
