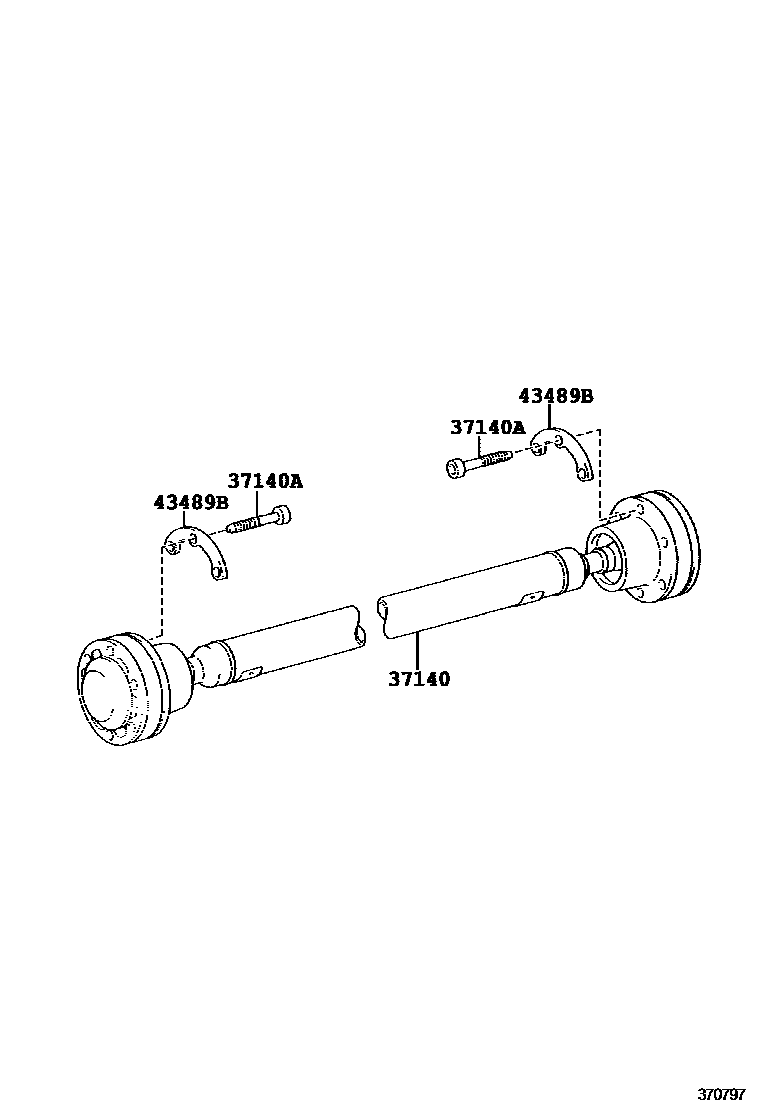

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1FRONT 0002 1REAR 0003 1 0004 1 0005 1

37140SHAFT ASSY, PROPELLER, FRONT

main37140-30020iGRL15201201-201510

37140ABOLT (F0R FRONT PROPELLER SHAFT)

main90110-08039×12iGRL15201309-201510

main90110-08040×12iGRL15201201-201309

43489BWASHER, CONSTANT VELOCITY UNIVERSAL JOINT

main43489-30010×4iGRL15201201-201510

3 parts on this diagram · 5 diagrams in section
