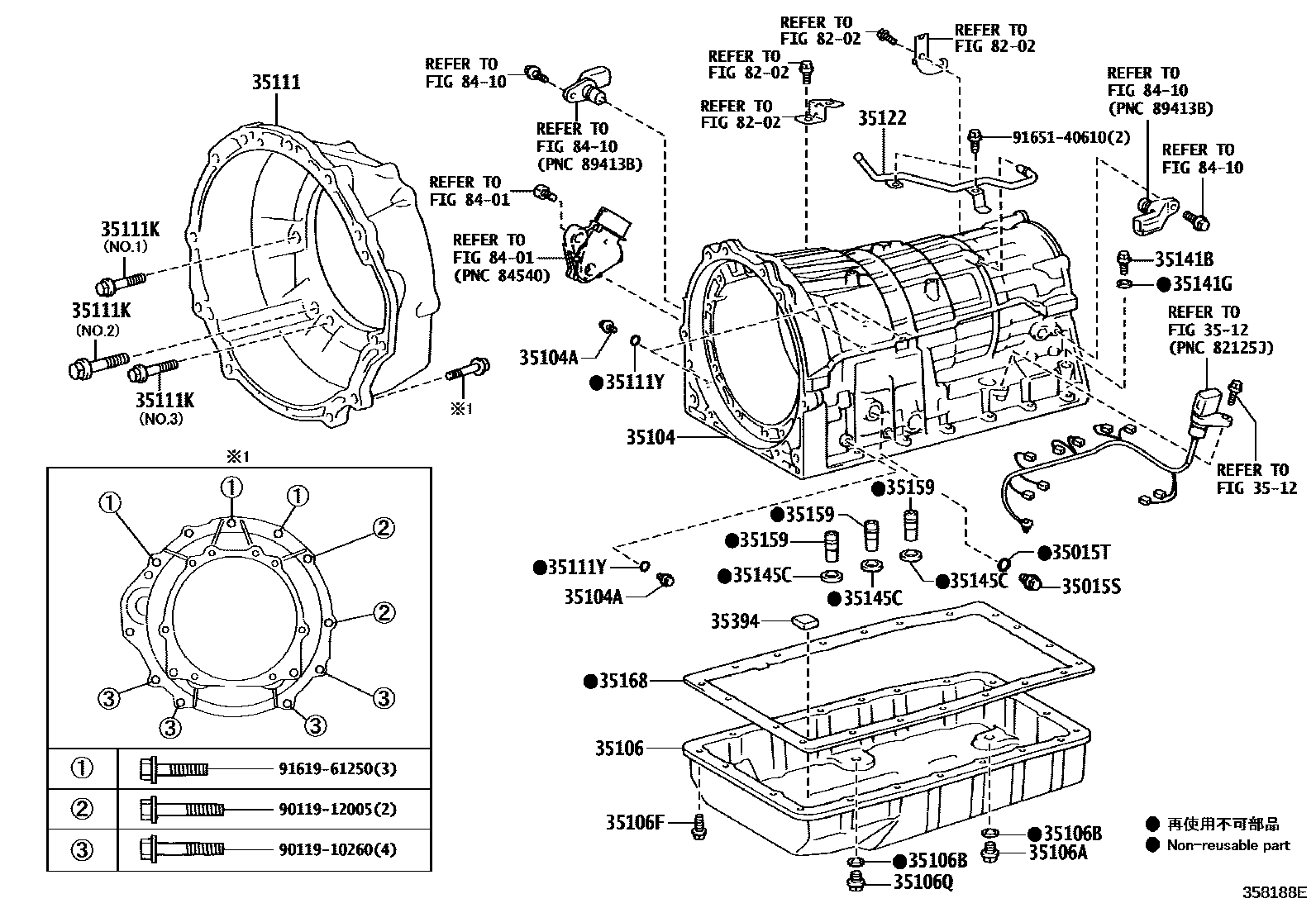

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A760H 0002 1A960E 0003 1AA81E

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iGRL1#201201-201510

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iGRL1#201201-201510

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22080iGRL11201203-201510

main35104-30220iGRL15201201-201510

main35104-53010iARL10201510-201809

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×5iGRL1#201201-201510

main90341-14011×2iARL10201510-201809

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30260iGRL15201201-201510

main35106-30270iGRL11201203-201510

main35106-30310iARL10201510-201809

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iARL10; GRL16201510-201809

NO.1

main90341-10021iARL10201510-201809

NO.2

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010×2iGRL1#201201-201510

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06173×20iGRL1#201201-201510

main90119-06982×9iARL10201510-201809

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-10021iGRL16201510-201809

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22110iGRL11201203-201510

main35111-30190iGRL15201201-201510

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×6iGRL1#201201-201510

*10-1.5PX35-30,NO.1

main90119-10947×2iGRL16201510-201809

*10-1.50PX35-29.3,NO.3

main90119-12378×2iGRL16201510-201809

*12-1.75PX38-30,NO.2

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×5iGRL1#201201-201510

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main90930-03182iGRL11201203-201510

main90930-03184iGRL16201510-201809

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011iGRL1#201201-201510

main90341-24017iARL10201510-201809

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iGRL1#201201-201510

main90301-20013iARL10201510-201809

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iGRL1#201201-201510

35159GASKET, BRAKE DRUM

main35159-60010×3iGRL1#201201-201510

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22020iGRL11201203-201510

main35168-50010iARL10201510-201809

main35168-60010iGRL16201510-201809

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×6iGRL16201510-201809

main35394-48010×3iARL10201510-201511

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910260

main90119-10260

9011912005

main90119-12005

9161961250

main91619-61250

9165140610

main91651-40610

27 parts on this diagram · 3 diagrams in section
